D Single-Mode/Multimode Module Performance Tests Te st I I . E v e n t De a d z o ne
234 E6000C Mini-OTDR User’s Guide, E0302

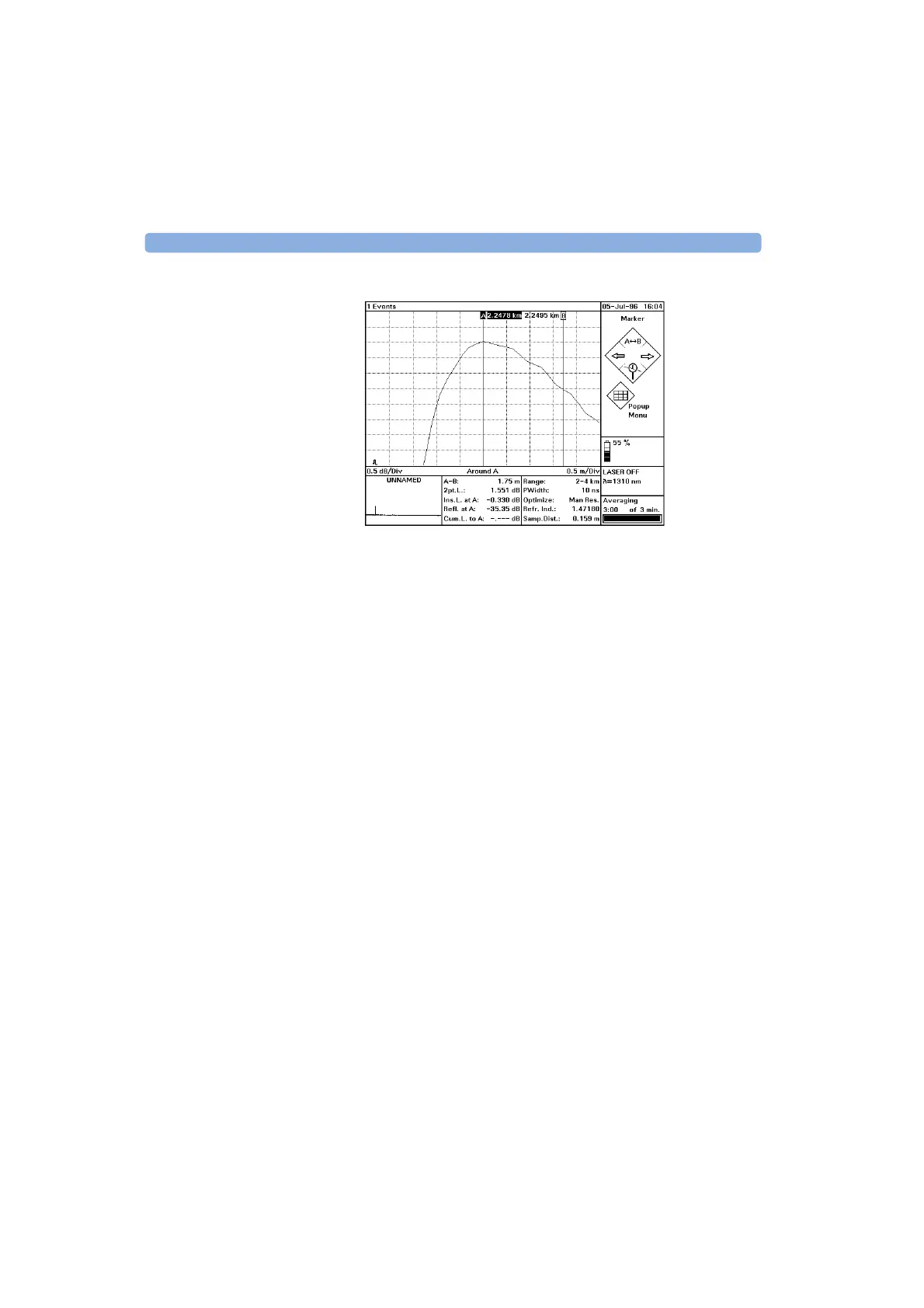

Figure 80 Event Deadzone Test: Position Marker B
Position markers 17 Use the L
EFT/RIGHT keys to position marker B where
the down slope of the reflection crosses the horizontal
center line of the graph. See Figure 80.
18 Position marker A at the beginning of the event.
U
P (A/B) until A is highlighted. Use LEFT/RIGHT keys.
Use D
OWN (Around A) to get better resolution.
Note result in test record 19 Note the width of the reflection in the test record. The
width is the distance between the markers A and B.
20 Stop the measurement.
Run/Stop
