1 Getting Started The popup panel
48 E6000C Mini-OTDR User’s Guide, E0302
The popup panel
If you press the SELECT key in OTDR mode. you normally
see a popup panel, offering fast access to various menus
and important functions.

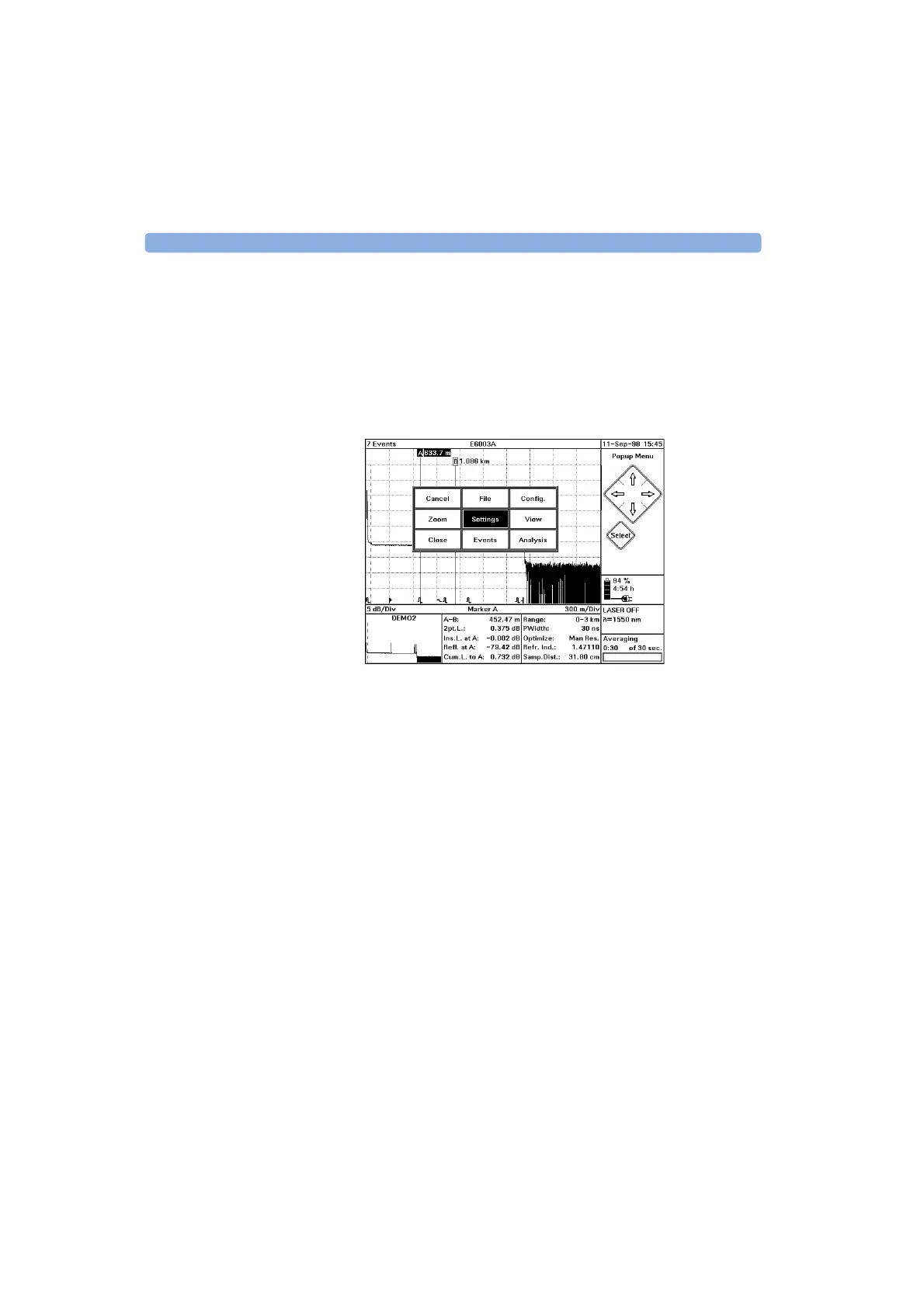

Figure 10 The popup panel
The following functions are available in OTDR mode:
•[C
ANCEL] - exit the popup panel and return to normal
OTDR mode.
•[F
ILE] menu - File utilities, including loading and
storage of data and printing a trace.
•[C
ONFIG] menu - configure the Mini-OTDR.
•[Z
OOM] - use the Cursor keys to zoom in and out of the
current trace. See “Zooming” on page 49.
•[S
ETTINGS] menu - change measurement and analysis
parameters. See “The Settings screen” on page 50.
•[V
IEW] menu - change the appearance of the trace.
•[C
LOSE] - return to Applications Screen
•[E
VENTS] menu - add or delete events and landmarks.
