The Settings screen 1 Getting Started
E6000C Mini-OTDR User’s Guide, E0302
55

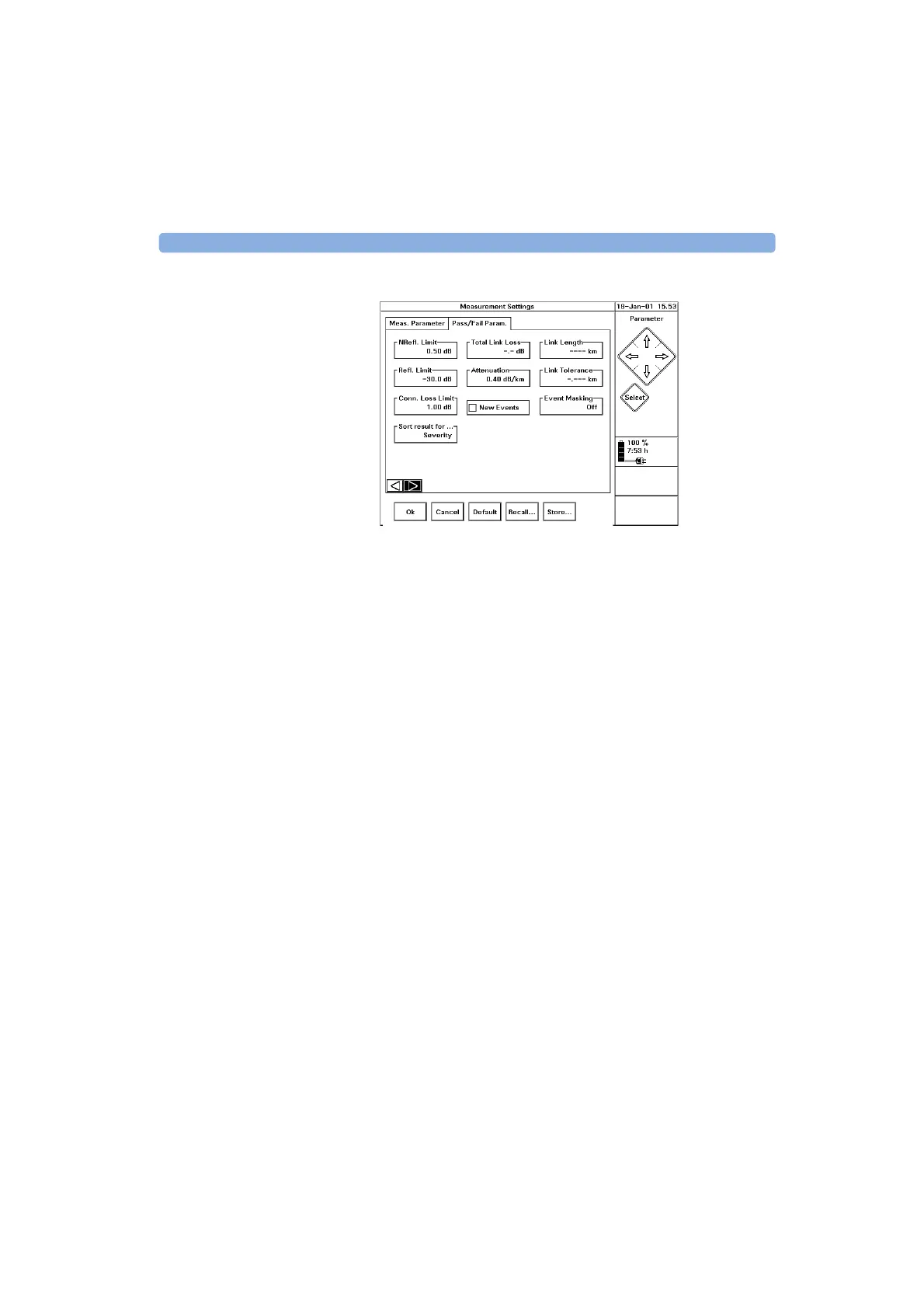

Figure 13 The Pass/Fail Parameters Settings page
You can change the following parameters from this page:
Non-Reflectance Limit • NRefl. Limit: Non-Reflectance Limit. All Events
with an Insertion Loss greater than this limit are
reported in the Pass/Fail test Table.
Gainers are never entered in the Pass/Fail test table.
This is because it is not possible to accurately measure
the true Insertion loss of a gainer without taking a two-
way Averaging Measurement.
The Non-Reflective limit can be anything up to 5 dB.
Enter a value of 0 dB to deactivate this test. If the limit
is not active, you see a value of -.-- dB in the NRefl.
Limit edit field.
Reflectance Limit • Refl. Limit: Reflectance Limit. All Events with a
Reflectance greater than this limit, are reported in the
Pass/Fail test Table.
So, if the Reflective limit is -30dB, all Events with a
Reflectance greater than -30dB (that is, between -30dB
and 0dB) are reported in the Pass/Fail test Table.
The Reflective limit can be anything up to -65dB. Enter
a value of 0 dB to deactivate this test. If the limit is not
