How to alter measurements in real time 4 Sample Sessions: Analyzing an Existing Trace
E6000C Mini-OTDR User’s Guide, E0302
123
How to alter measurements in
real time
1 Select [SETTINGS] from the OTDR Mode popup panel.
2 If you are not already viewing the Meas. Parameter
page (Figure 12), cursor to either of the arrows at the
bottom left of the screen. Press S
ELECT to bring up the
next page.
Select Realtime measurement 3 Move to <M
EAS.MODE> and press SELECT. Select
Realtime from the menu, and confirm by selecting OK.
4 Start a measurement by pressing the R
UN/STOP key. You
see a dialog box saying Realtime Measurement
Started.
5 Select [S
ETTINGS] from the popup panel. You now see a
smaller settings screen above the trace. This screen
shows variables that can be changed while the
measurement is running.

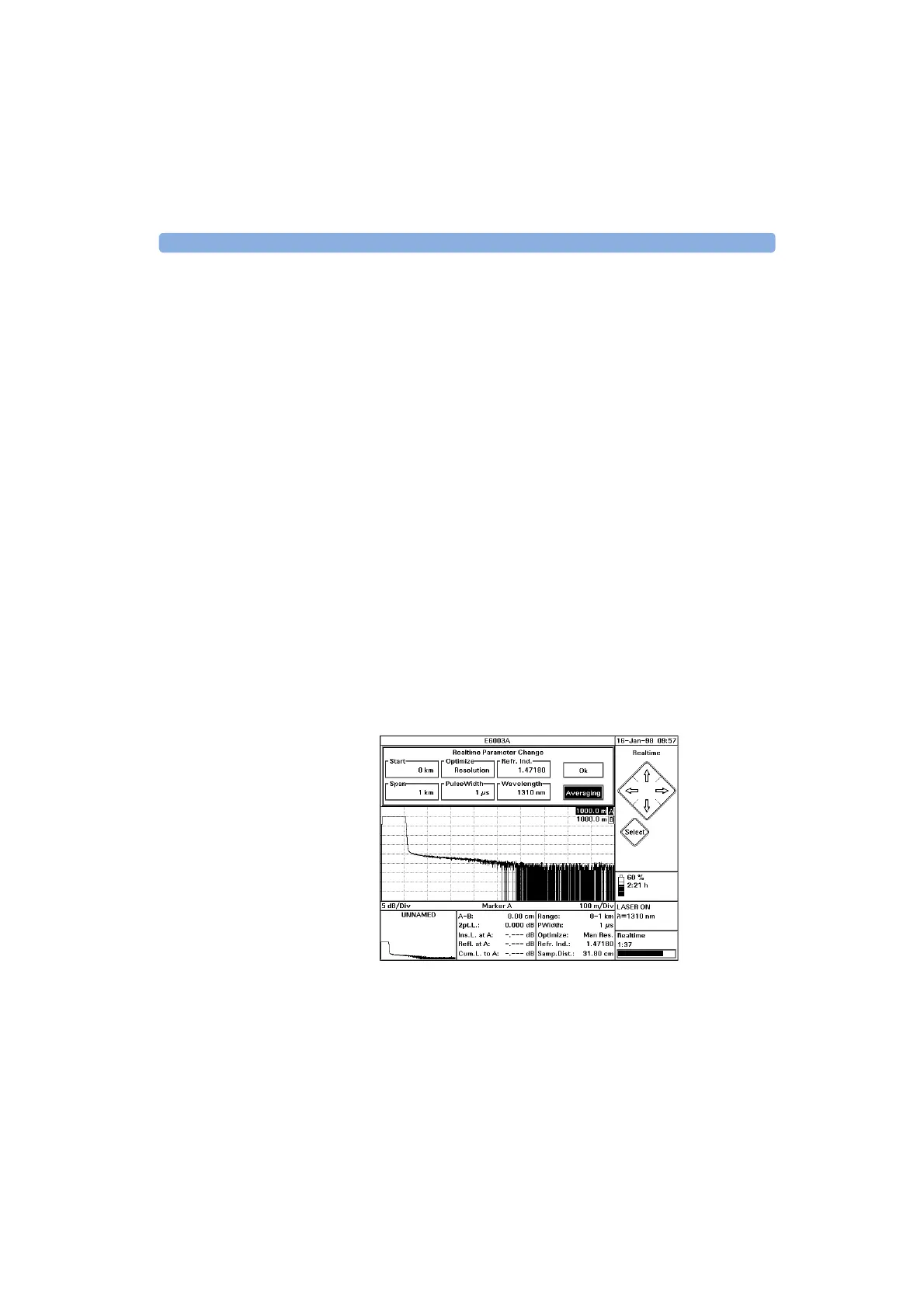

Figure 43 Realtime settings menu
