OTDR Mode 1 Getting Started
E6000C Mini-OTDR User’s Guide, E0302
43
.

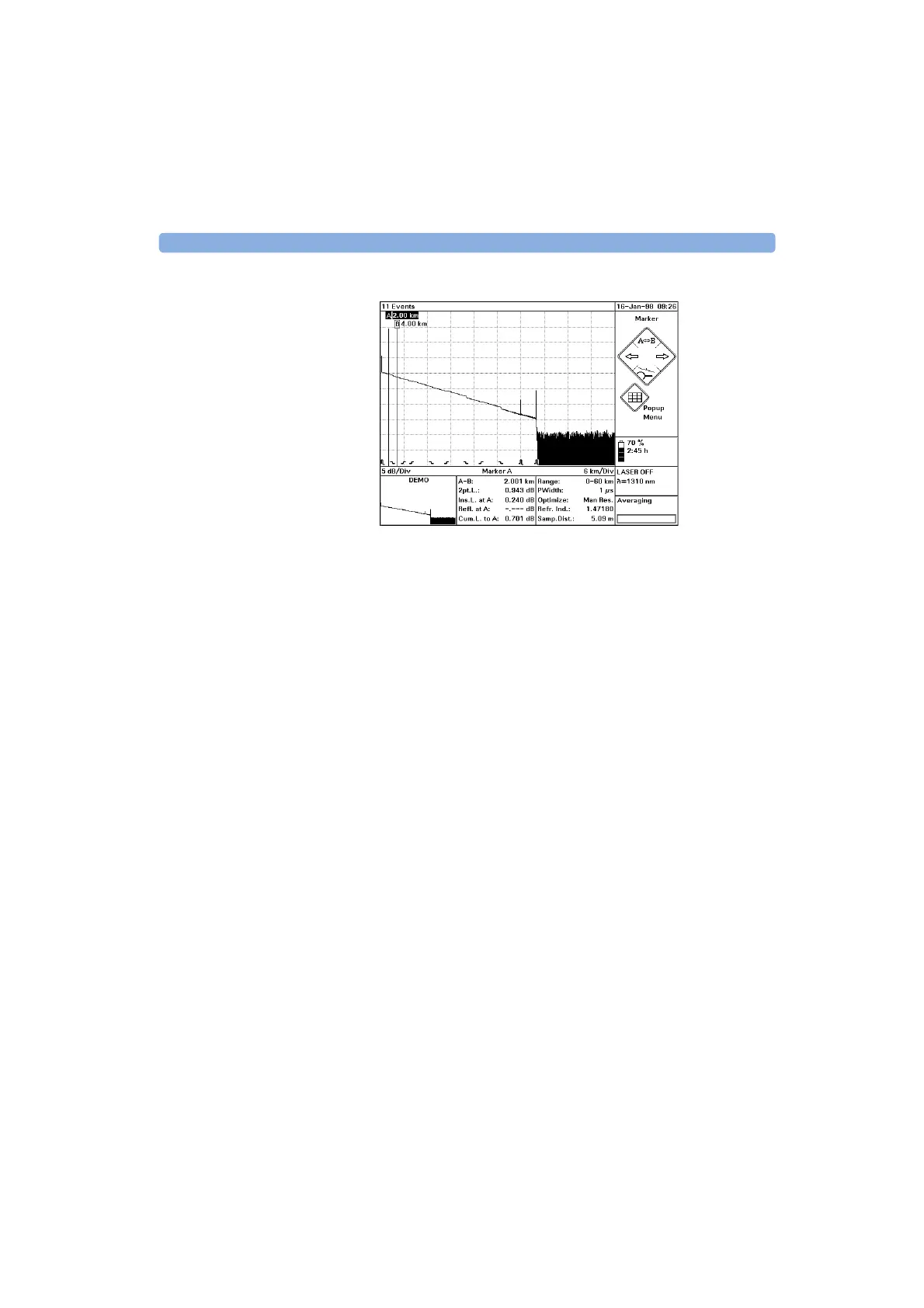

Figure 8 The Trace Screen
Trace • When you have taken a measurement, the graph of the
reflected power is displayed as a function of distance.
This graph is called the trace.
Event Bar • Below the trace, the event bar shows you the position of
the detected events: non-reflective events such as
splices, reflective events such as connectors, as well as
any defined landmarks.
You can add and remove the event bar by selecting
[View]<E
VENT BAR> from the popup panel.
Markers • The markers are your means of marking and analyzing
single events, parts of the trace, and distances. In the
marker-information window, you see information such
as the distance, attenuation, and loss at or between the
markers.
