How to Set the General Configuration 5 Sample Sessions: Instrument Configuration
E6000C Mini-OTDR User’s Guide, E0302
131
window contains two columns of features that can be
changed.

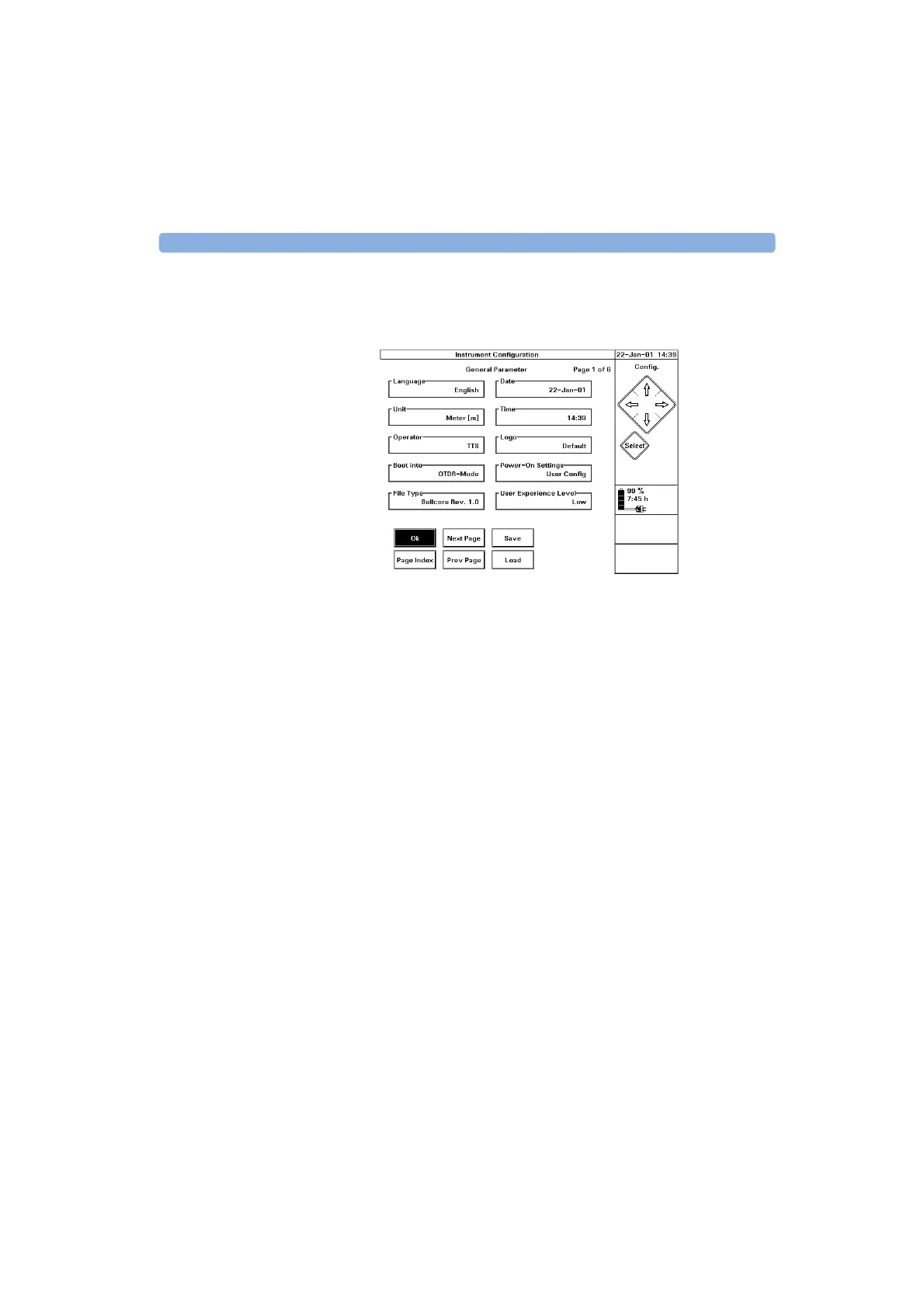

Figure 47 Instrument Configuration General Parameters Screen
You can move to any of these boxes and press Select.
You can change the default setting using one of the
following methods. Note that the changes are not
applied until you save the settings (see step 12 below).
How to select a setting from a list
Change language 3 Move to the box headed Language and press SELECT.
You see a list of the available languages for the User
Interface.
4 Cursor D
OWN to the language you want and press
S
ELECT. The language that you have just selected
appears in the dialog box.
