Agilent Technologies E6000C - How to Read from a Presaved Template

How to Recall Settings in EasyMode 6 Sample Sessions: Other Mini-OTDR Modes
E6000C Mini-OTDR User’s Guide, E0302
151

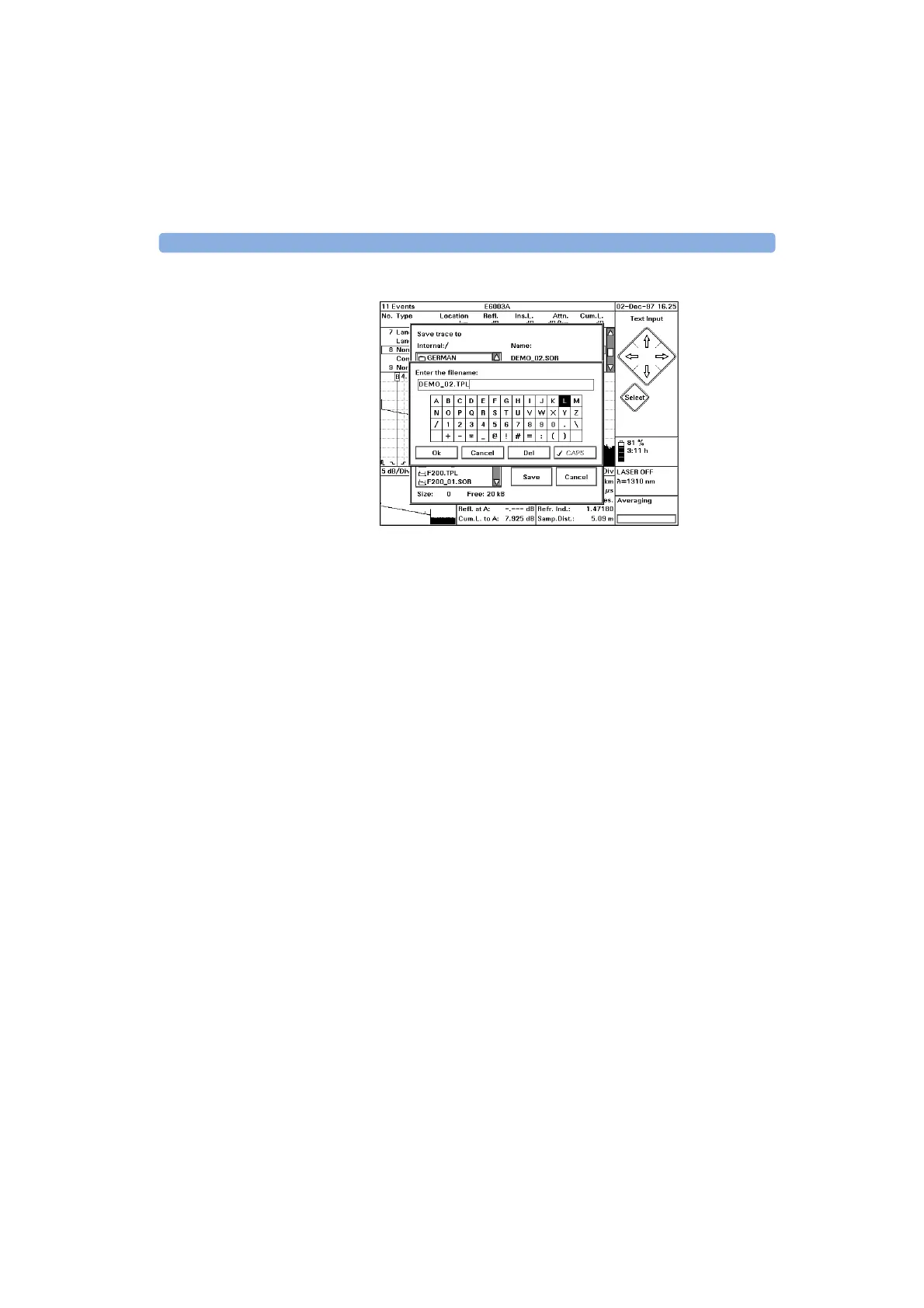

Figure 56 Saving the current settings in a template.
NOTE Only files with the extension .TPL can be used as
templates. If you use any other extension, your file will be
saved as a normal trace, and will not be displayed in the
EasyMode Settings menu.
5 Select OK to confirm. Then click the Save box in the
Save As menu.
6 Exit OTDR mode by selecting [C
LOSE] from the popup
panel.
How to Read from a Presaved Template
Easy OTDR Settings 7 Select Easy OTDR from the Applications screen.
8 Select [S
ETTINGS] from the popup panel. You see a
directory structure. Move to the presaved .TPL or .SET
file. Press S
ELECT to read from this file.
NOTE Settings (.SET) files just contain information from the
Settings screen. For information about saving a settings
file, see the note on page 50.
