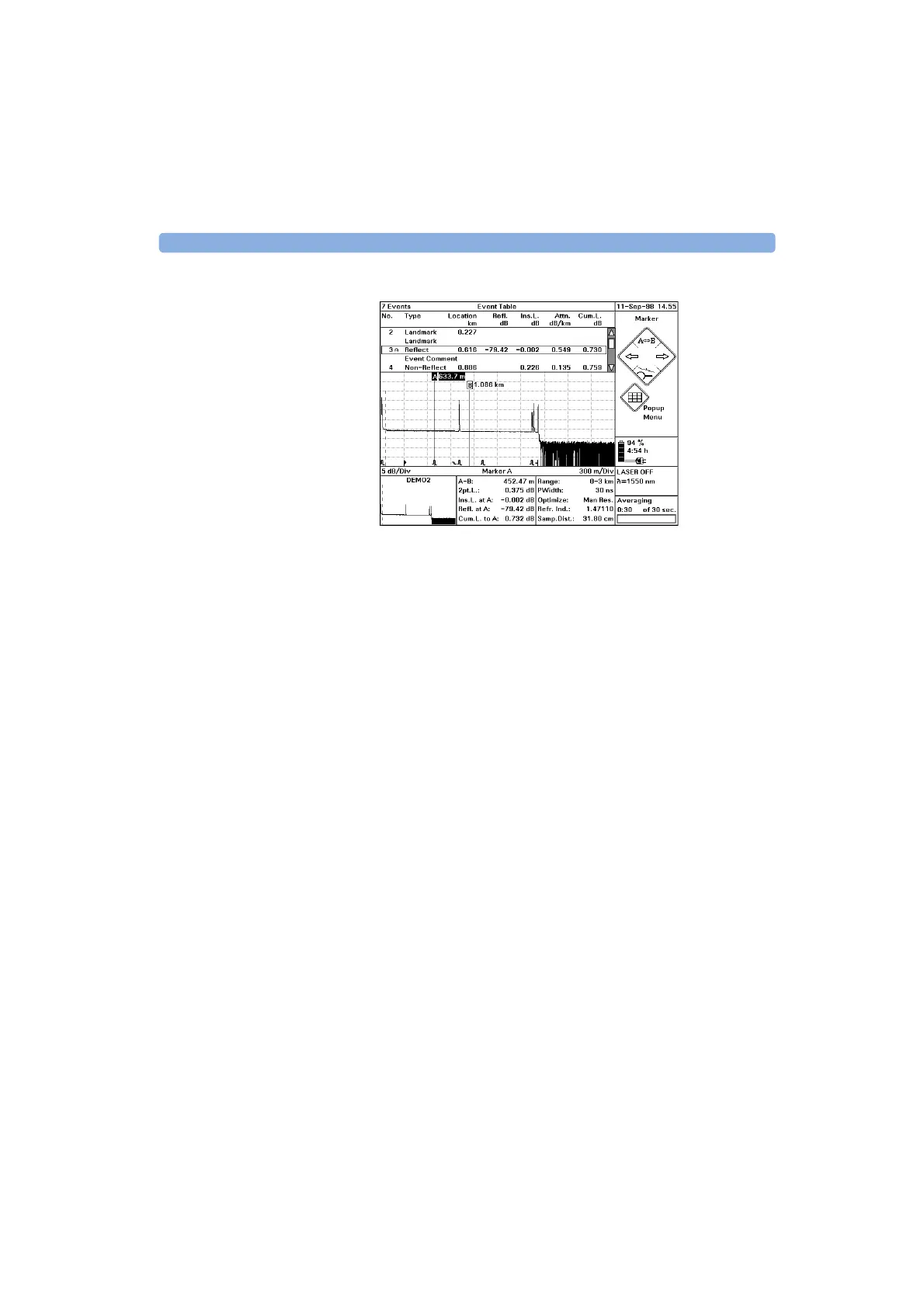

Figure 37 Landmark and Event Comment
How to Add a Reflective Event
If your trace contains a Reflective Event that has not been
detected by your Scan Trace, you can add an Event
manually, as described below:
Position marker 1 Use the L
EFT and RIGHT cursors to move a marker to the
position where you want to add the Event.
To position the marker more accurately, press D
OWN to
zoom around the marker.
2 Select the menu item [E
VENTS]<ADD/MOD. REFL.
E
VENT>.
NOTE If your marker is already at an existing Event, you are
asked if you want to modify this Event.
