4 Sample Sessions: Analyzing an Existing Trace How to Add a Reflective Event
118 E6000C Mini-OTDR User’s Guide, E0302

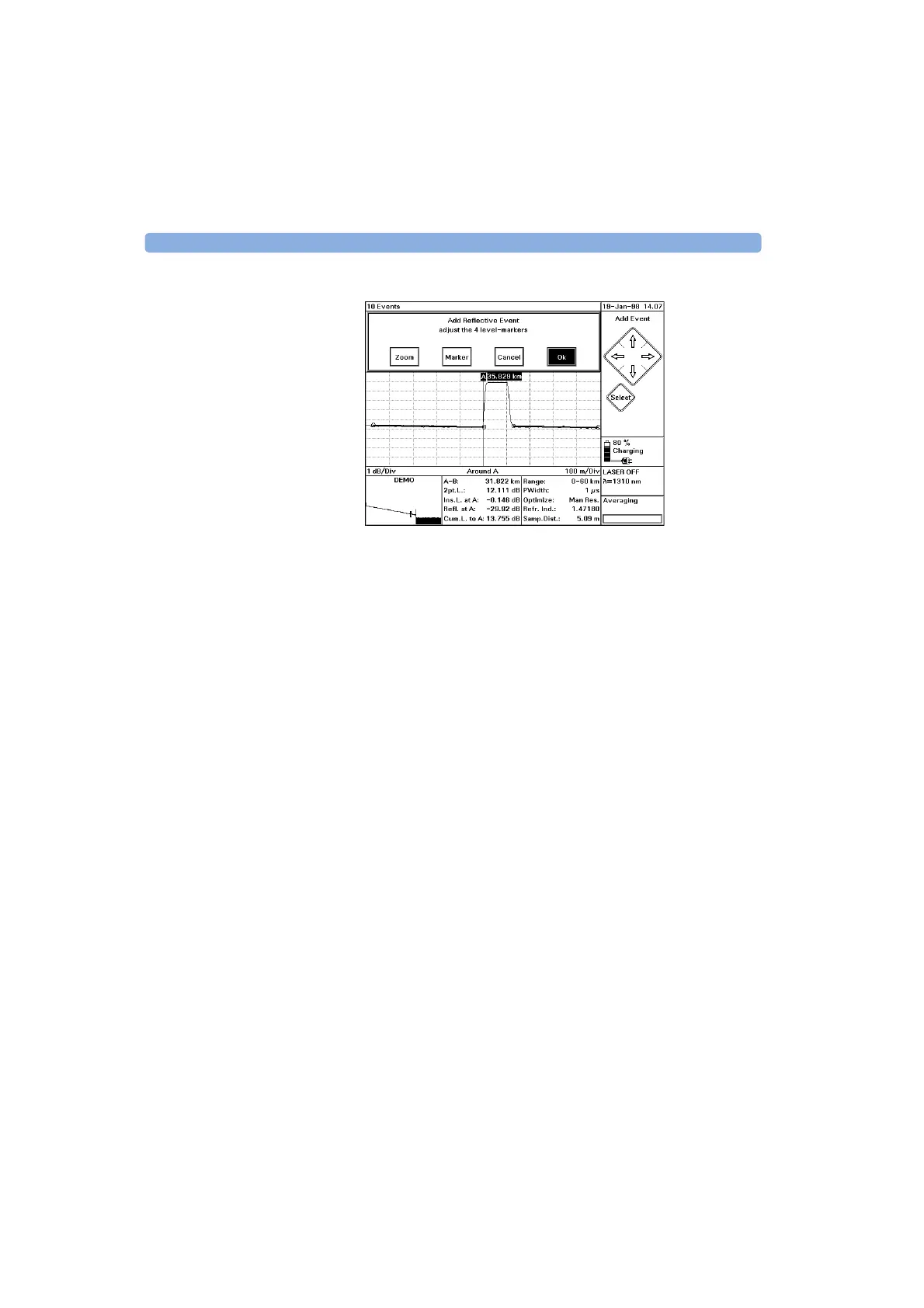

Figure 41 Measuring Insertion Loss: setting the level-markers
NOTE As you move the level-markers, the Insertion Loss value
in the Parameters window changes accordingly.
This value is listed as Ins.L. at A or Ins.L. at B,
depending on the current marker.
30 When you have positioned the level-markers correctly,
press S
ELECT to continue.
31 Press S
ELECT again to select Ok.
You can now see the Reflective Event in the Event Table,
and in the Event Bar at the bottom of the Trace window.
Added vs. Modified Events Added Events are indicated by an A between the entries
for No and Type in the Event Table. Modified Events are
indicated by an M.
