How to Display and Compare Two Traces 4 Sample Sessions: Analyzing an Existing Trace
E6000C Mini-OTDR User’s Guide, E0302
127

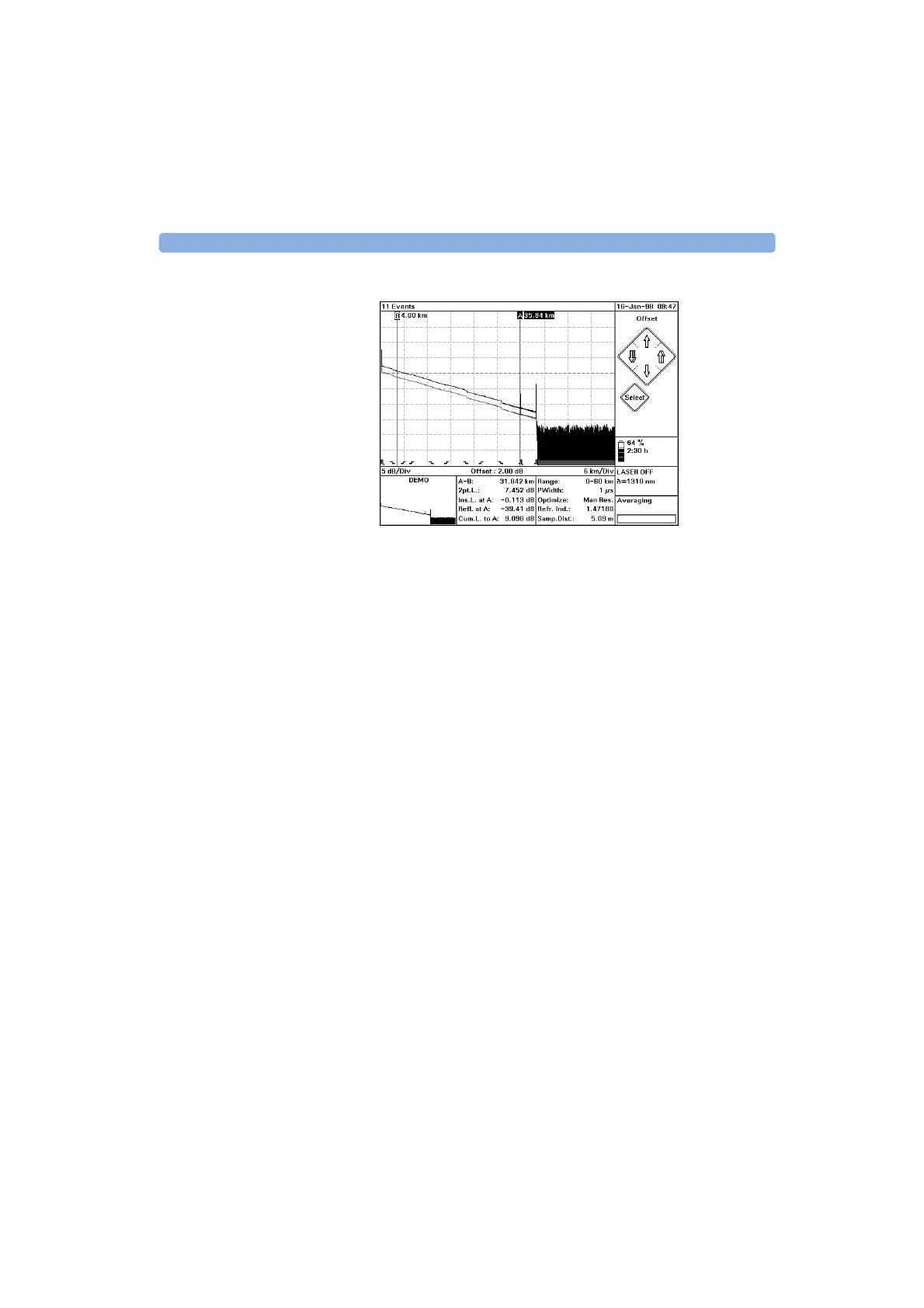

Figure 45 Two traces on the same picture
NOTE The new trace will be darker than the original trace.
If you have a color display, the second trace has the same
color as the grid.
The next time you make a trace, it will replace the one you
have just made. If you want to show just one trace again,
select <C
LOSE...> or <CLOSE ALL> from the [FILE] menu.
If you want to replace a different trace, follow step 3 to
change the current trace.
How to Use the Vertical Offset
If you are viewing two similar traces, it is possible that
one trace will obscure much of the other one. If this is the
case, you may want to use the Vertical Offset to move one
trace up or down.
You use the Vertical Offset as follows:
