1 Getting Started OTDR Mode
42 E6000C Mini-OTDR User’s Guide, E0302

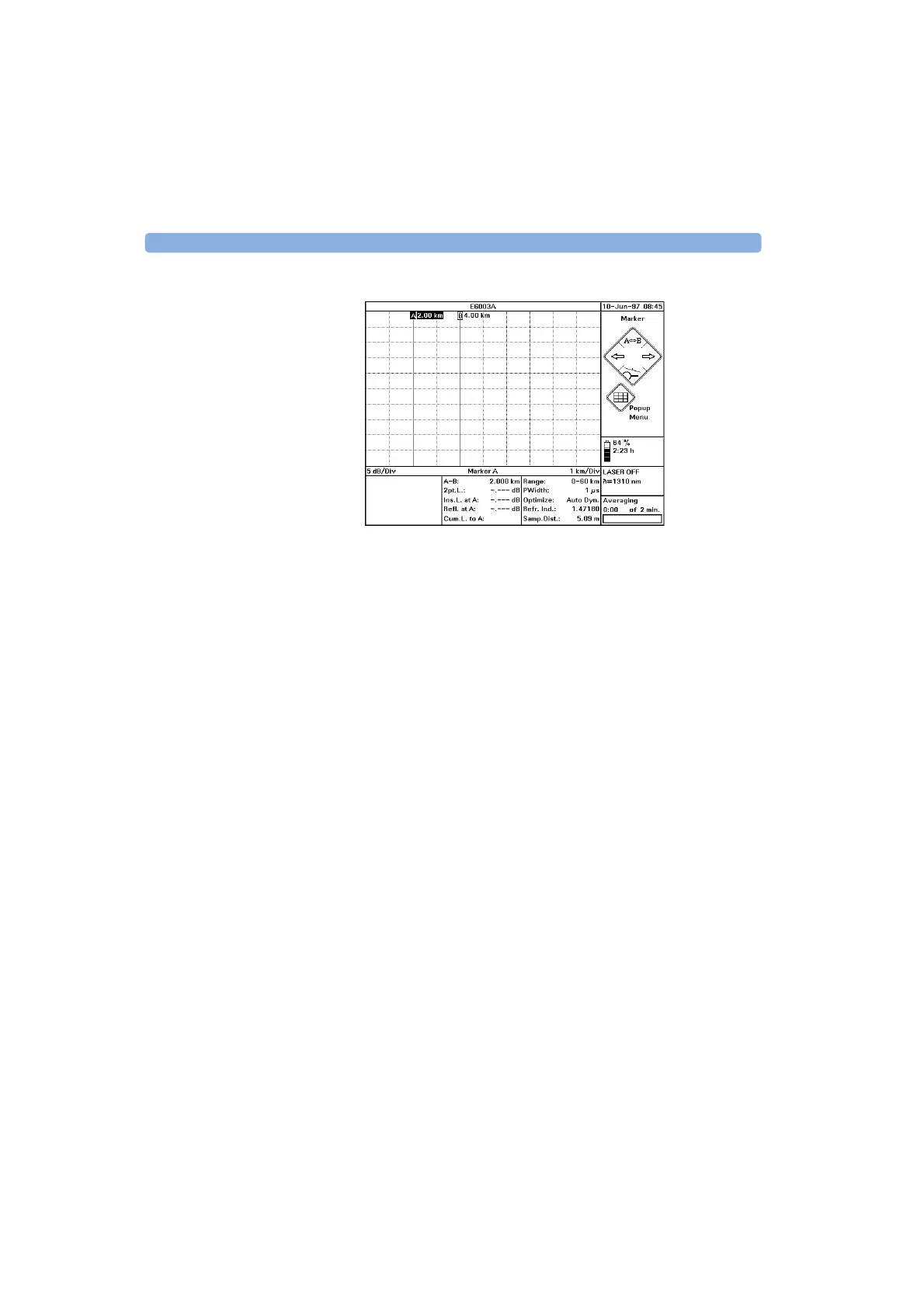

Figure 7 Blank Trace Screen
Taking a Measurement
NOTE Before you take a measurement you should attach a fiber
to the Connector Interface. See “Adding a Connector
Interface” on page 38.
To produce a trace, press the R
UN/STOP hardkey.
Run/Stop light The light behind the R
UN/STOP hardkey goes on. After a
short initializing phase, the OTDR displays the first result
Stop measurement. Wait until the trace is free of noise, then press the R
UN/
S
TOP hardkey to stop the measurement
