How to set up a Multi Fiber Test 6 Sample Sessions: Other Mini-OTDR Modes
E6000C Mini-OTDR User’s Guide, E0302
153

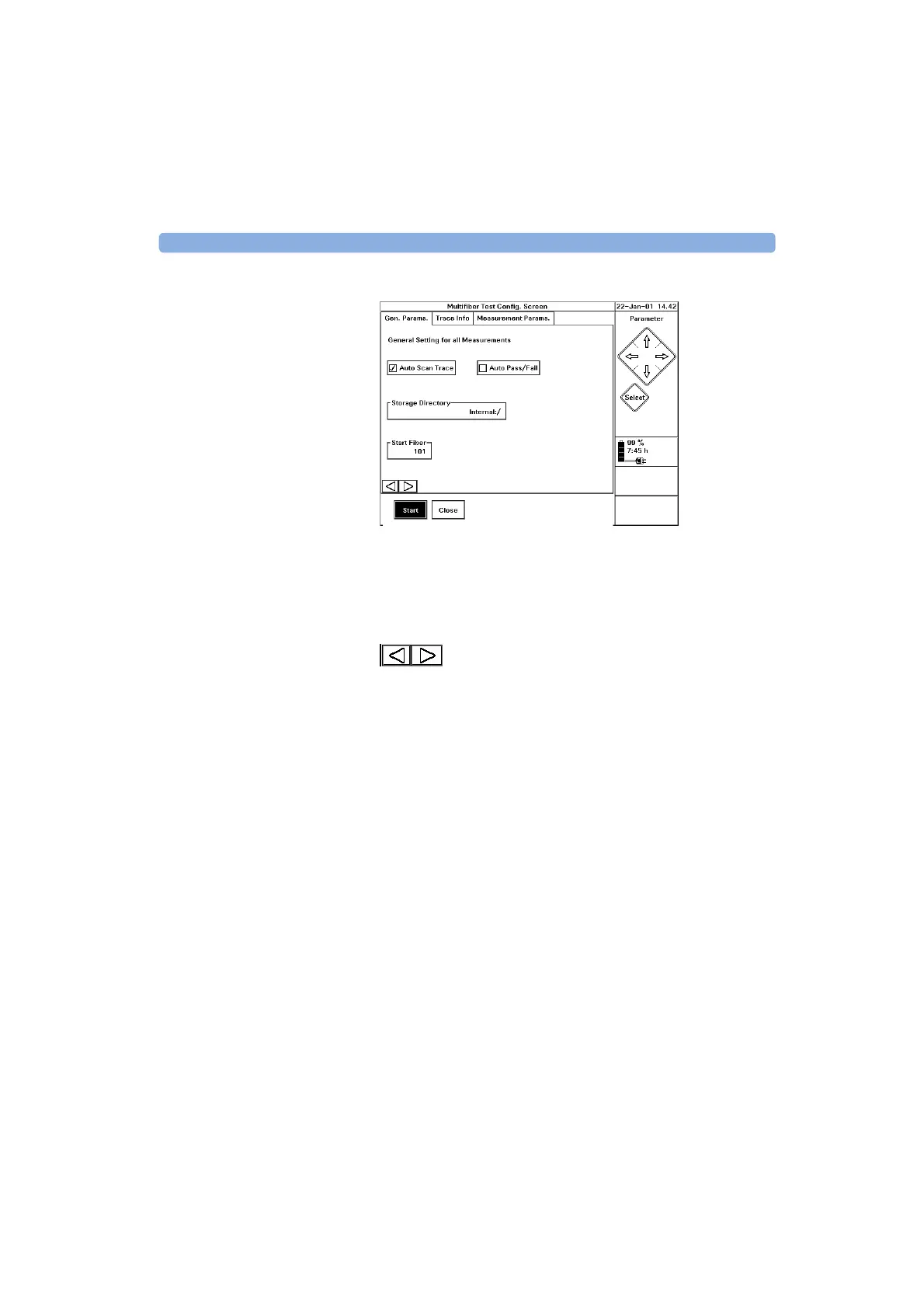

Figure 57 Mutifiber Test Configuration screen
Navigation between pages At the bottom left of this screen, you see two navigation
arrows.
Figure 58 Multi Fiber Test Navigation arrows.
2 Use your cursor to highlight one of these arrows.
You can then press S
ELECT one or more times to move
to other Multi Fiber Test Config pages.
Configuration pages The arrows cycle through the 3 Configuration pages:
• Gen Params sets parameters common to all
measurements.
• Trace Info sets the comments associated with each
trace.
• Measurement Params sets the measurement setups
and names of the measurements.
