6 Sample Sessions: Other Mini-OTDR Modes How to Use Source Mode
164 E6000C Mini-OTDR User’s Guide, E0302
How to Use Source Mode
Source Mode diagram 1 Select Source Mode from the Applications Screen.You
see two diagrams on the Source Mode screen. The
Source Mode diagram is on the right.

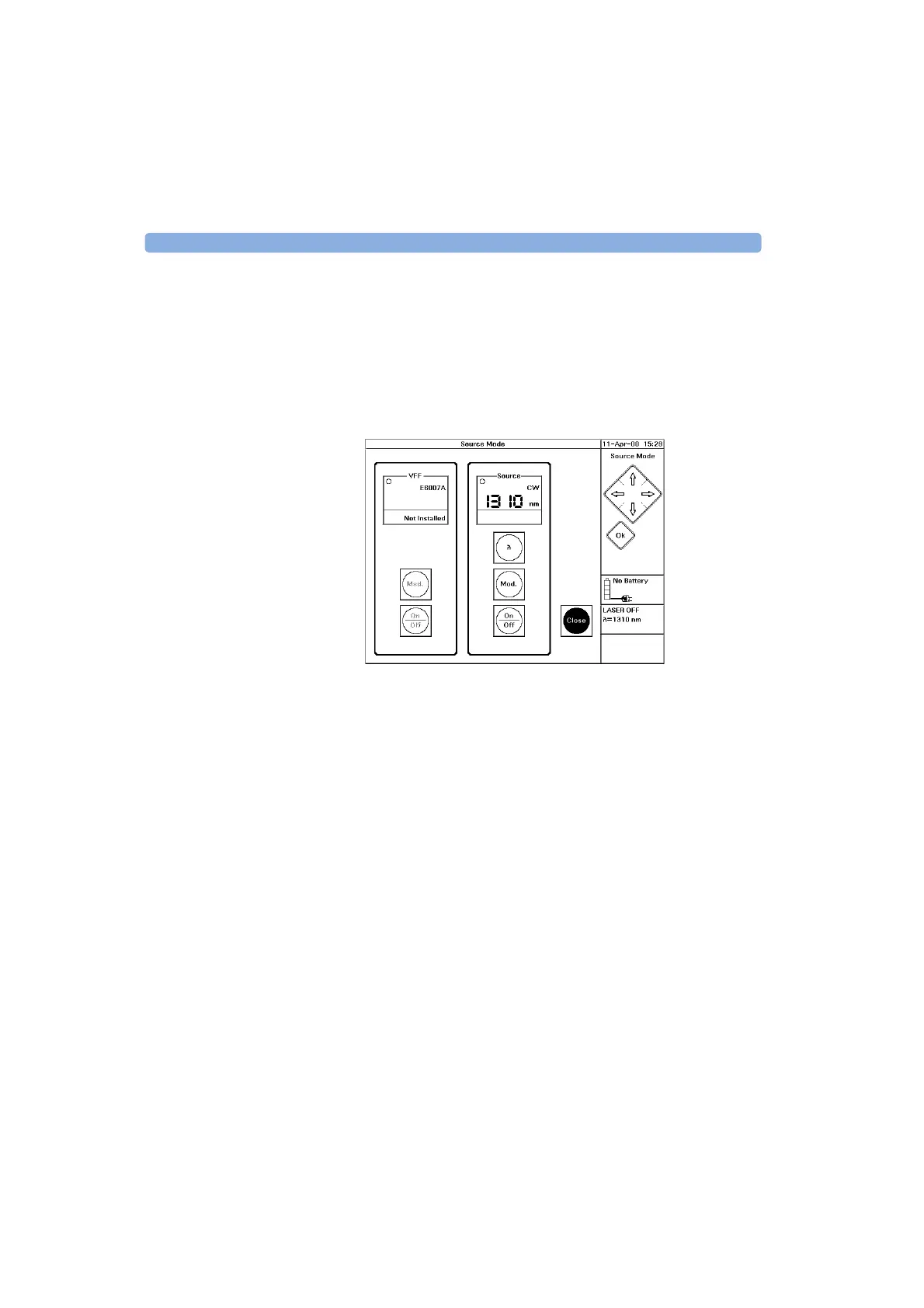

Figure 66 Source Mode
NOTE The left-hand diagram shows the current submodule. If no
submodule is installed, you see Not installed in the
screen.
See “How to Use the Power Meter Submodule” on
page 165 and “How to Use the Visual Fault Finder
submodule” on page 171.
Change settings 2 If you want to change the Wavelength or Modulation
Frequency, use the cursor keys to move to the
appropriate box on the screen. Press S
ELECT, and select
the required value.
3 Press the R
UN/STOP key to start a trace. The light
behind the R
UN/STOP key will be lit, and the Operation
button on the screen will flash on and off.
