How to Perform an Insertion Loss Measurement 6 Sample Sessions: Other Mini-OTDR Modes
E6000C Mini-OTDR User’s Guide, E0302
169
How to Take a Reference value
Attach fiber 5 Attach output connectors to the module and the power
meter submodule. Connect the module and submodule
with a fiber (Figure 70, first picture).
6 Switch on the Source.
Select On/Off from the Source window.
7 Select dBm/W from the Power Meter diagram until the
measurement in the Power Meter window is in dB.
Select Reference value 8 Wait for the measurement to stabilize, then select
Disp/Ref.
The measurement is taken as a reference value, which
you can see next to Ref: in the Power Meter window.

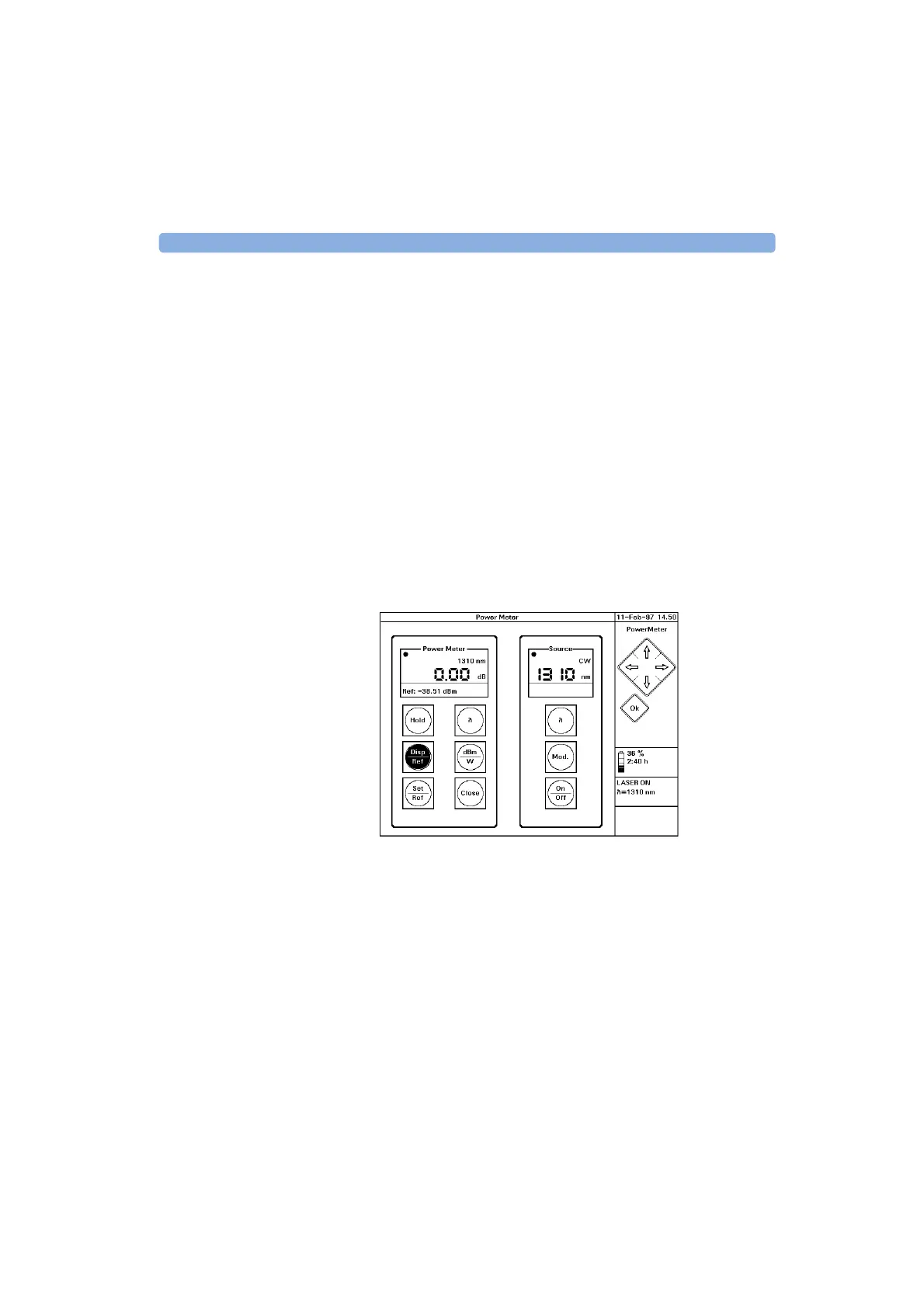

Figure 69 Taking a Power Meter Reference value
