6 Sample Sessions: Other Mini-OTDR Modes How to Use the Visual Fault Finder submodule
172 E6000C Mini-OTDR User’s Guide, E0302
4 Switch on the Mini-OTDR. The third box in the
Applications screen will now be called Visual Light.
Move to this box and press S
ELECT.

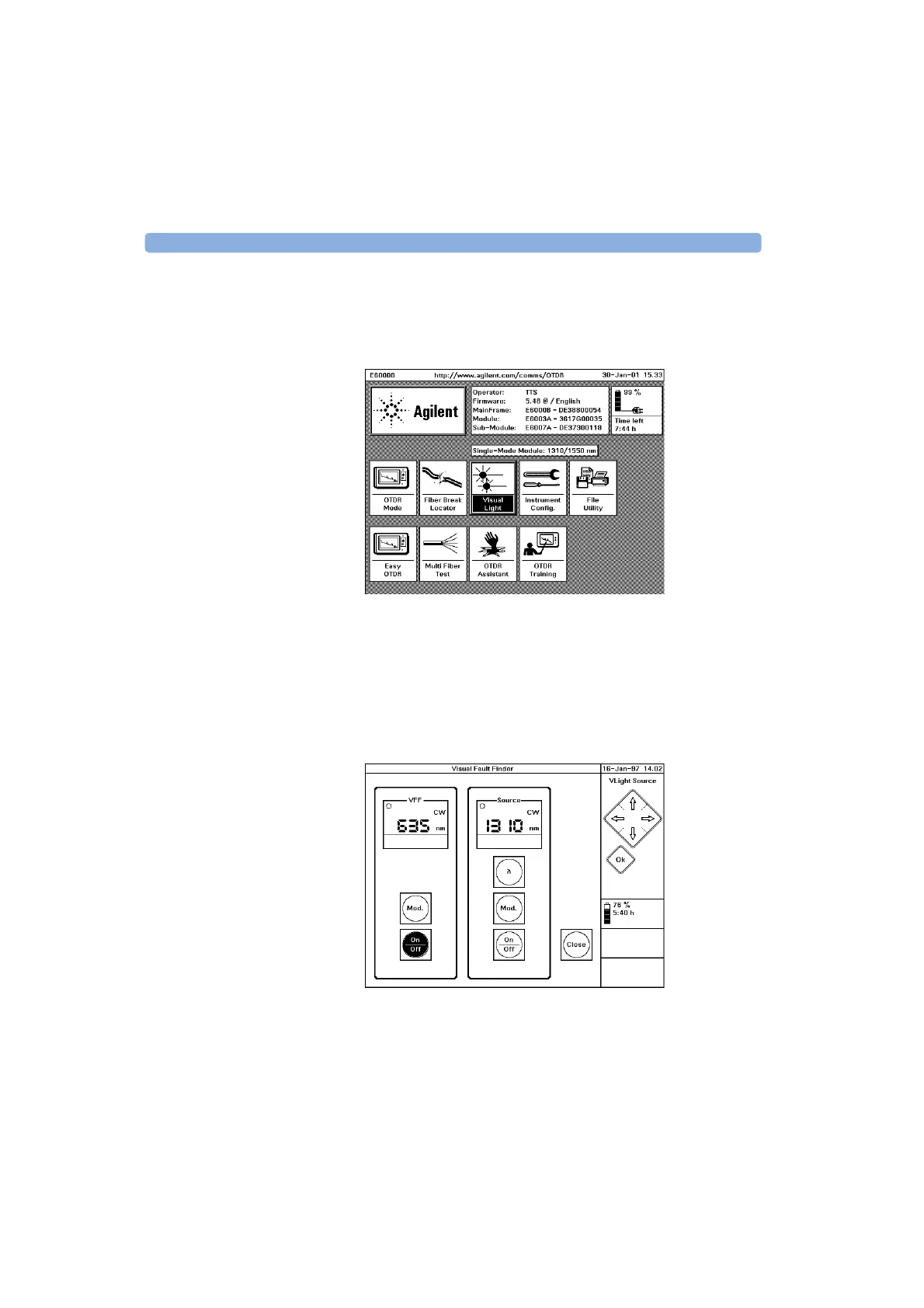

Figure 71 Applications Screen when the E6007A submodule is attached
Visual Fault Finder screen You now see the Visual Fault Finder screen. You see 2
diagrams: the Visual Fault Finder is on the left, the
Source is on the right
Figure 72 The Visual Fault Finder Screen
