D Single-Mode/Multimode Module Performance Tests Test IV. Distance Accuracy (Optional)
240 E6000C Mini-OTDR User’s Guide, E0302

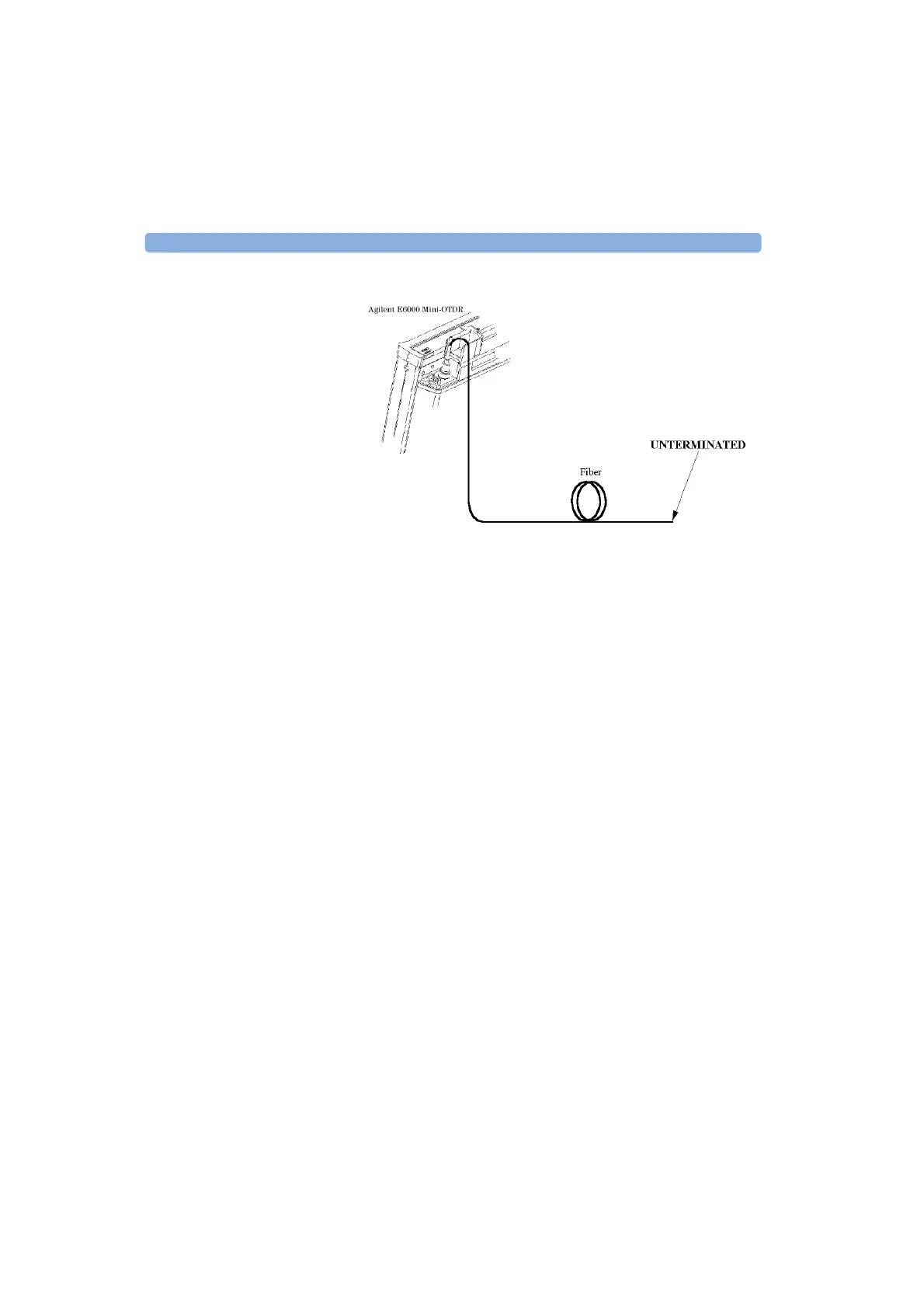

Figure 84 Distance Accuracy Test Setup
2 Turn on the Mini-OTDR, and after the self-test has
passed, recall the default settings and the standard
mode.
Settings 3 Set the OTDR:
[S
ETTINGS] menu:
–<R
ANGE>: 0 - 10 km.
–<P
ULSE WIDTH>: 1 µs
–<W
AVELENGTH>: If a dual wavelength module is
installed, select the required wavelength
–<M
EAS. MODE>: Averaging
–<O
PTIMIZE MODE>: Resolution
–<A
VG. TIME>: 3 min (see the note on page 224).
–<R
EFR. IND.>: 1.45800
–<D
ATA POINTS>: 16000
[V
IEW] menu:
