4 Sample Sessions: Analyzing an Existing Trace How to Display and Compare Two Traces
126 E6000C Mini-OTDR User’s Guide, E0302

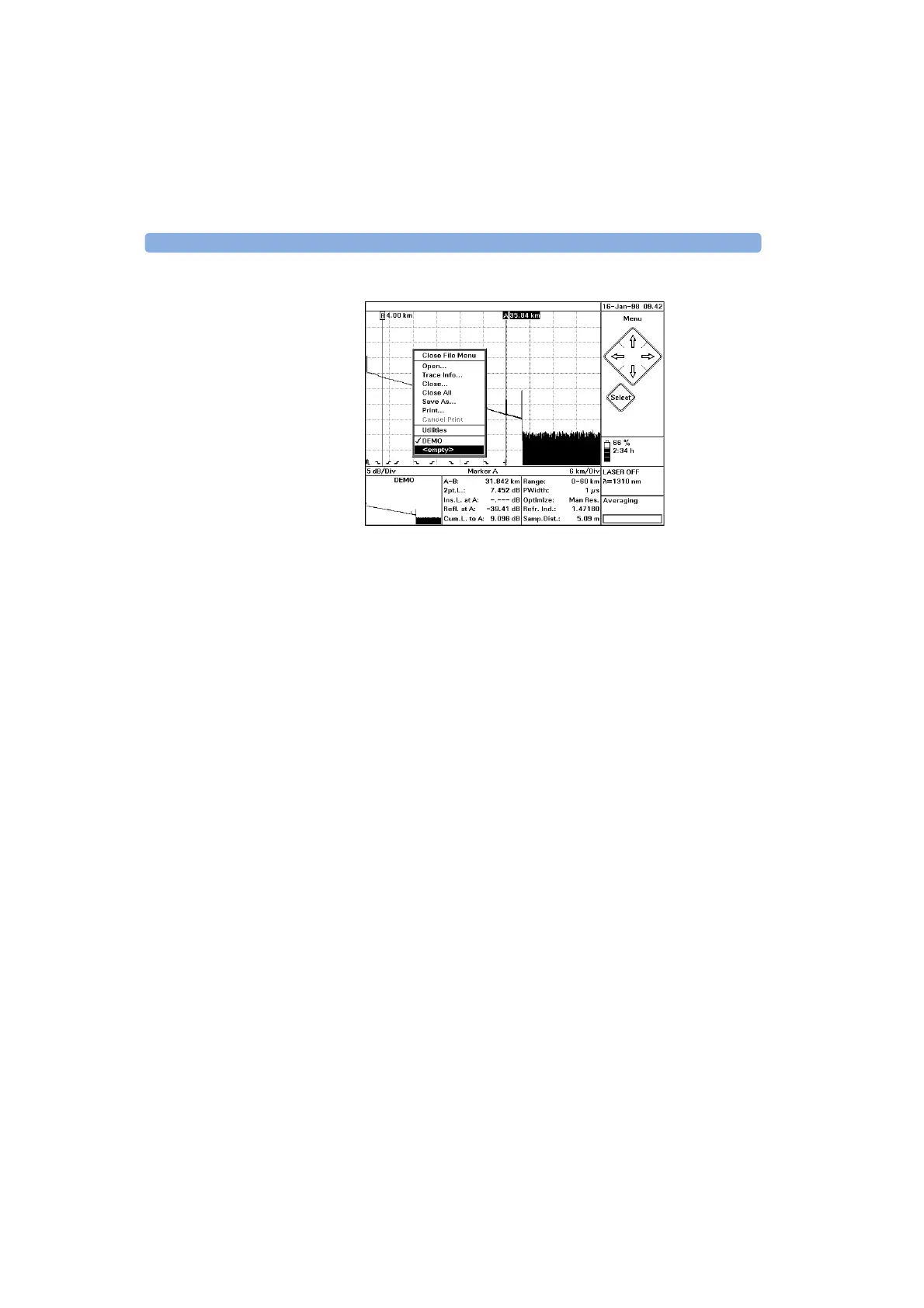

Figure 44 Selecting the empty trace
NOTE If you have set a Horizontal Offset (see “How to Set the
Horizontal Offset” on page 96), this is retained when you
select an empty trace.
However, when you select an existing trace, the
Horizontal Offset set for this trace is used.
Show second trace 4 Make a second trace, as in step 1. You now see two
traces (Figure 45)
