How to Use the Power Meter
Submodule
Insert submodule 1 Switch off the Mini-OTDR, and insert a module. Insert
an E6006A Power Meter submodule into the submodule
slot in the module (see “Inserting and Removing a
Submodule” on page 74).
Connect fiber 2 Attach the required optical connector interface to the
optical output.
3 Connect the fiber to this interface.
4 Attach the other end of the fiber to a Source, such as
the Agilent N3974A Dual Laser Source.
Alternatively, attach the other end of the fiber to the
module currently installed in the Mini-OTDR
5 Switch on the Mini-OTDR. The third box in the
Applications screen will now be called Power Meter.
Move to this box and press S
ELECT.

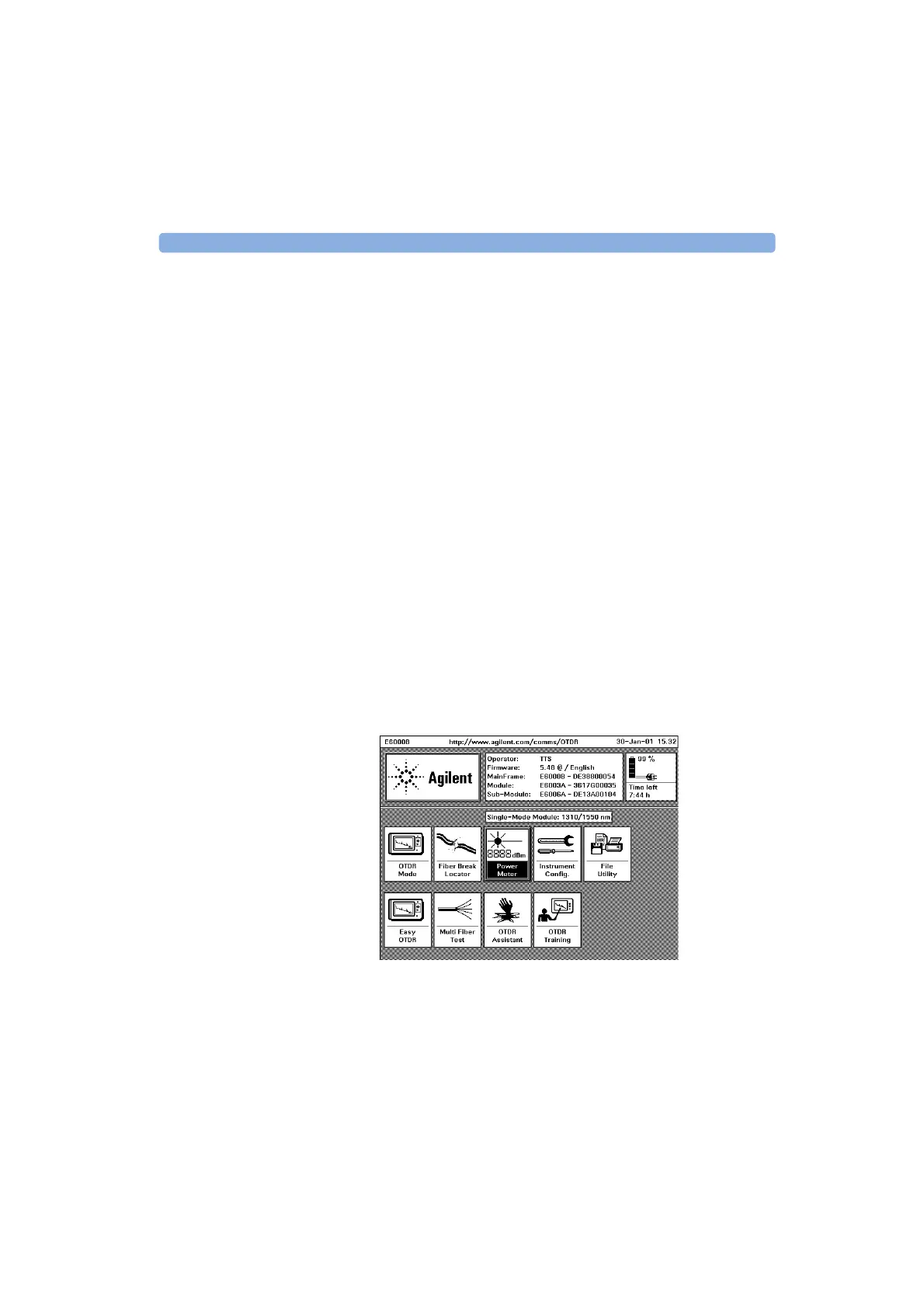

Figure 67 Applications Screen when the E6006A submodule is attached
