How to Set the General Configuration 5 Sample Sessions: Instrument Configuration
E6000C Mini-OTDR User’s Guide, E0302
133

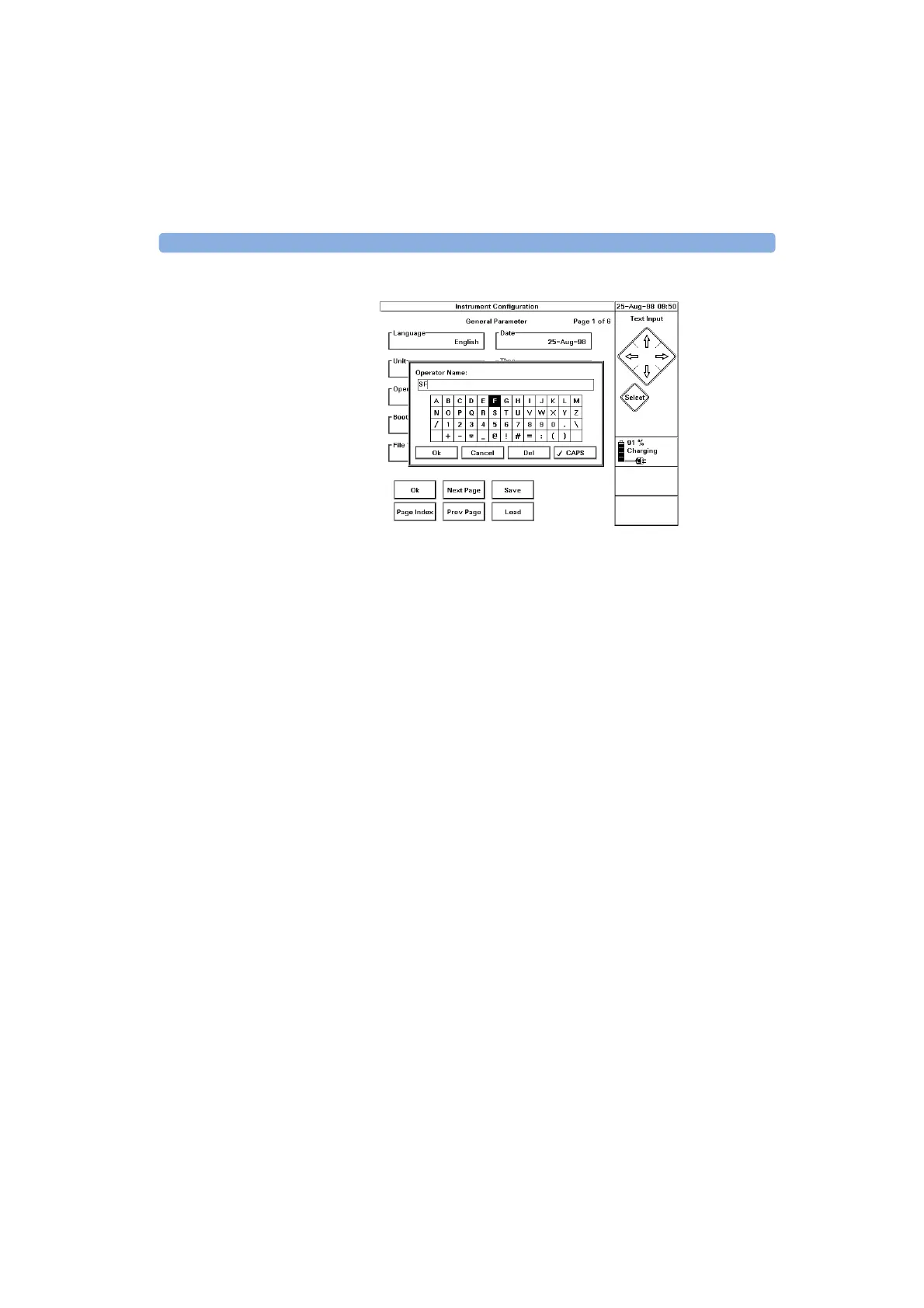

Figure 49 Keyboard to Enter Text
10 When you have the text you want, move to OK and press
S
ELECT.
NOTE You can also add text from an external keyboard such as a
PC or an organizer. Attach a serial line to the Mini-OTDR,
and type keyb. See the OTDR Programming Guide
(Agilent Product Number E4310-91016) for more details.
You can also operate your Mini-OTDR remotely using the
Agilent E6091A OTDR Toolkit II software. See the OTDR
Toolkit Operating Instructions (Agilent Product number
E6091-91013) for more details.
Change other parameters 11 Set other features in the General Parameters screen as
required:
– Select units from Meter [m], Feet [Ft], and
Miles [mi].
– Select Bellcore revision type.
Bellcore revision 2.0 conforms to standards, but you
may need to use earlier Bellcore revisions for
backward compatibility.
