3 Sample Sessions: Measuring a Trace How to Use the Pass/Fail test
94 E6000C Mini-OTDR User’s Guide, E0302
If there is no current trace, no Pass/Fail test is performed
and you see an error message.
11 After the Pass/Fail test has been performed, you see
the message Pass/Fail Test done! at the top of
your Trace screen.
You are told whether the check has passed or failed (for
example, Figure 29).

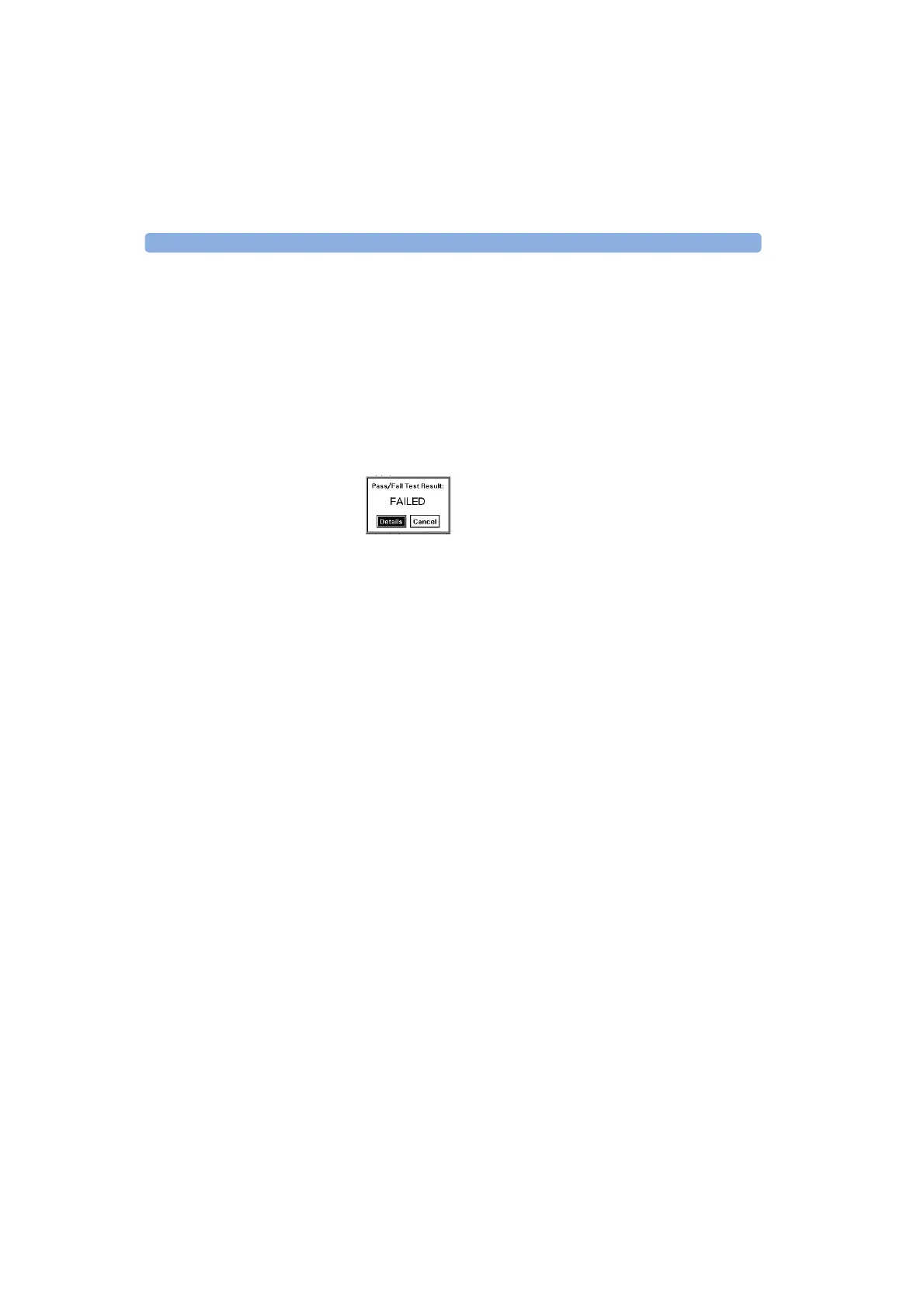

Figure 29 Pass/Fail test failed message
What you see depends on the test result, and the current
configuration of your Mini-OTDR:
Test passed • Pass/Fail test passed: you see PASSED at the top right
of your Mini-OTDR screen.
Tes t F ail ed • Pass/Fail test failed, Pass/Fail test table not
displayed: you see the screen in Figure 29.
• Pass/Fail test failed: Pass/Fail test table already
showing: you see a FAILED message and the Pass/Fail
test table is updated.
This example assumes the second case (Pass/Fail test
failed, no Pass/Fail test table displayed).
Test Details 12 Select Details to continue.
You now see the new Pass/Fail test table (Figure 30).
