5 Sample Sessions: Instrument Configuration How to Connect to a PC using the RS232
140 E6000C Mini-OTDR User’s Guide, E0302
How to Set the Instrument Setup
Instrument Configuration 1 Follow step 1 in “How to Save the Instrument
Configuration” on page 134 to bring up the Instrument
Configuration screen.
2 Select Page Index to see a list of the Configuration
screens. Select <I
NSTRUMENT SETUP> from this list.
You see the Instrument Setup screen (Figure 53).

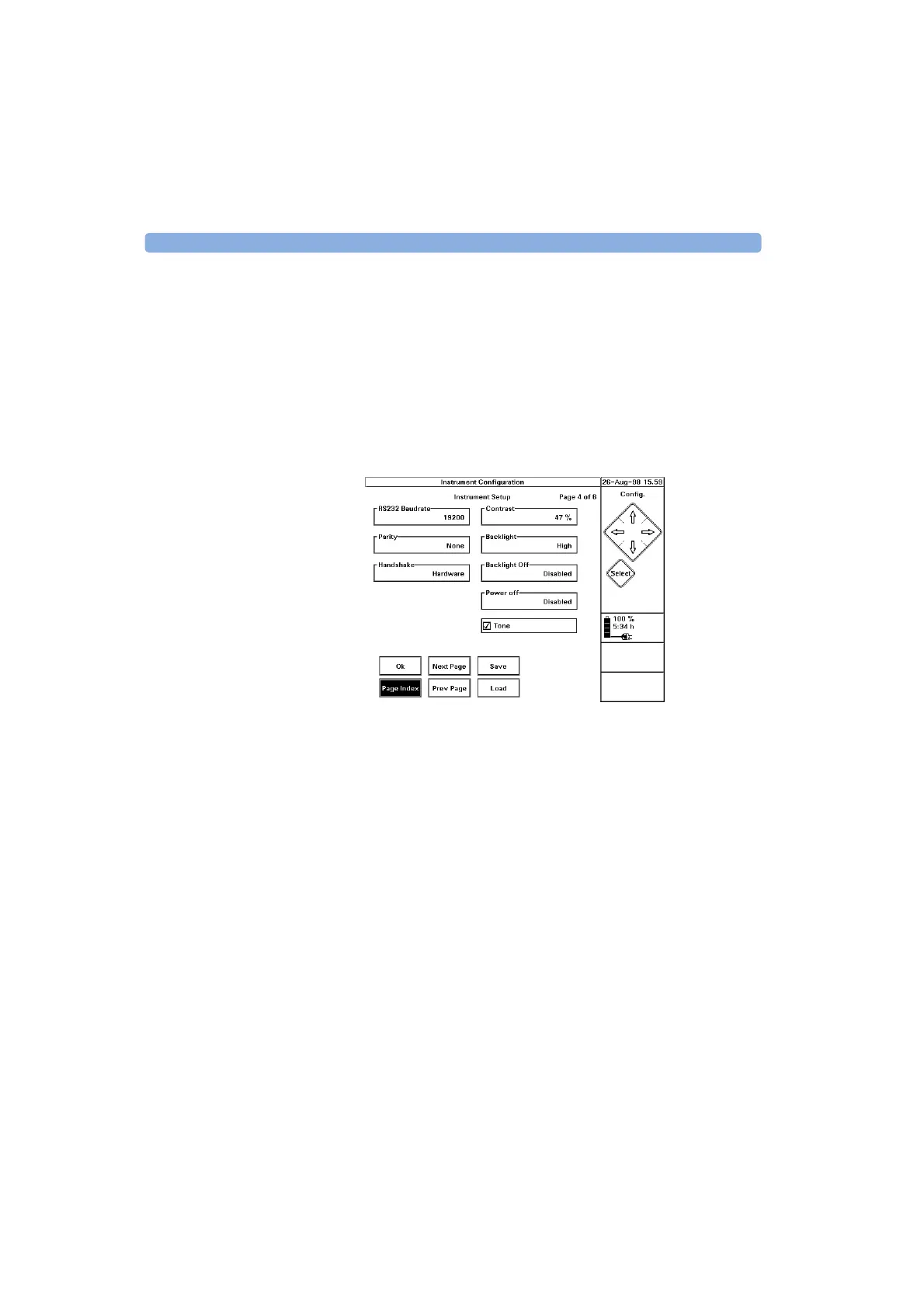

Figure 53 Instrument Setup screen
Set Baudrate and Handshaking 3 If necessary, change the baudrate to 19200. To change
the baudrate, select the RS232 Baudrate box and
choose the required menu option.
4 If necessary, select Handshake and change to
Hardware.
Save settings 5 Select Save to save this configuration.
