Agilent Technologies E6000C User Manual

The Mini-OTDR module 1 Getting Started
E6000C Mini-OTDR User’s Guide, E0302
35
The Mini-OTDR module

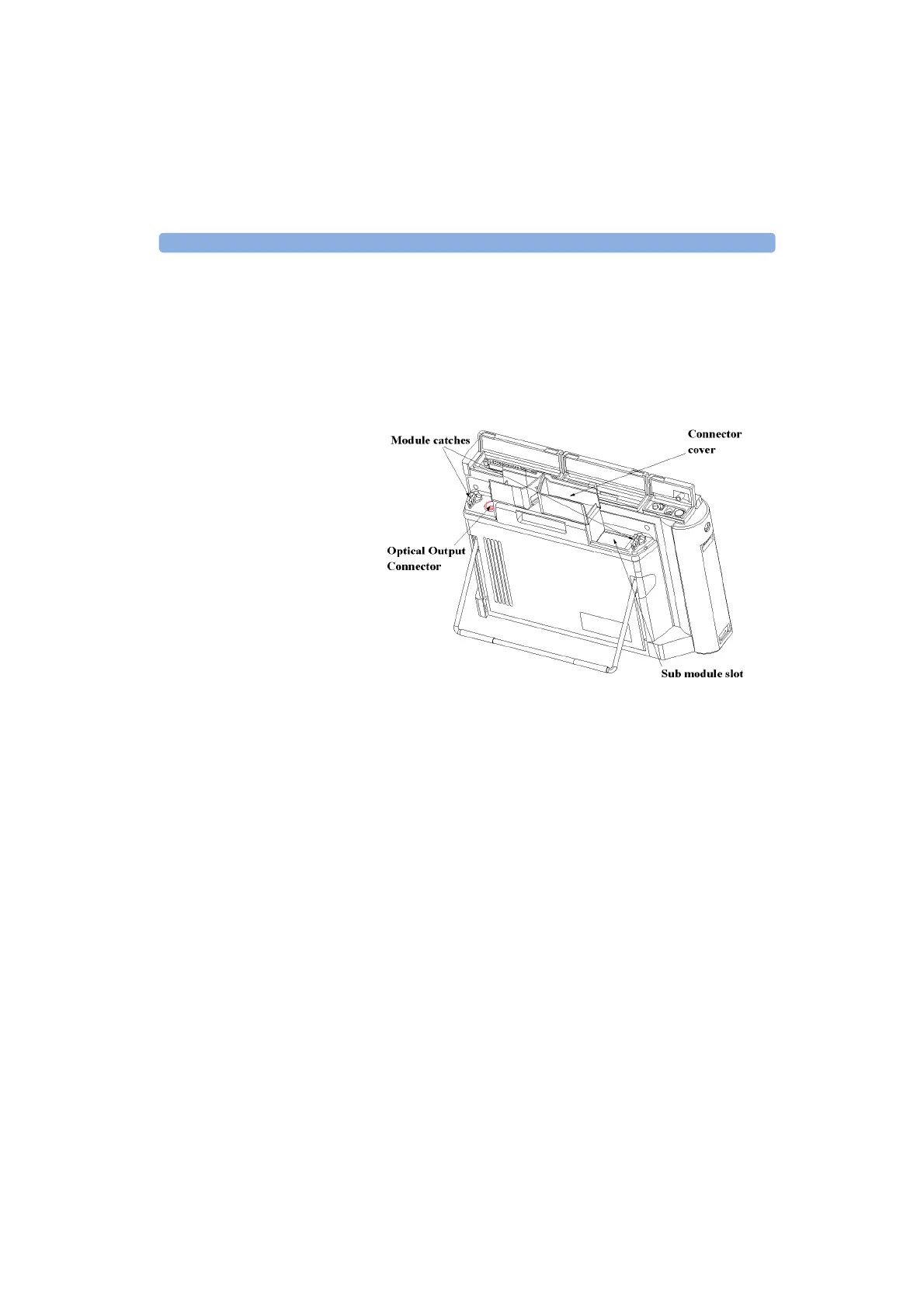

Figure 3 shows a Mini-OTDR with a module inserted in
the back.
Figure 3 The Mini-OTDR module
Module catches • You keep the module in place with the module catches.
When the module is in place, the catches should be
perpendicular to the screen.
Connect fiber • You connect fibers to the Optical Output Connector.
For more details, see “Adding a Connector Interface”
on page 38.
Submodule • You add submodules to the submodule slot.
Submodules currently available are the Power Meter
(Agilent E6006A) and the Visual Fault Finder (Agilent
E6007A). See “Inserting and Removing a Submodule”
on page 74.
