How to Set the Horizontal Offset 3 Sample Sessions: Measuring a Trace
E6000C Mini-OTDR User’s Guide, E0302
97
NOTE If the current marker is marker B, the submenu option
will be called <S
ET H-OFFSET TO B>.
The position of the current marker is now set to 0 km and
distances are reset accordingly (Figure 31).

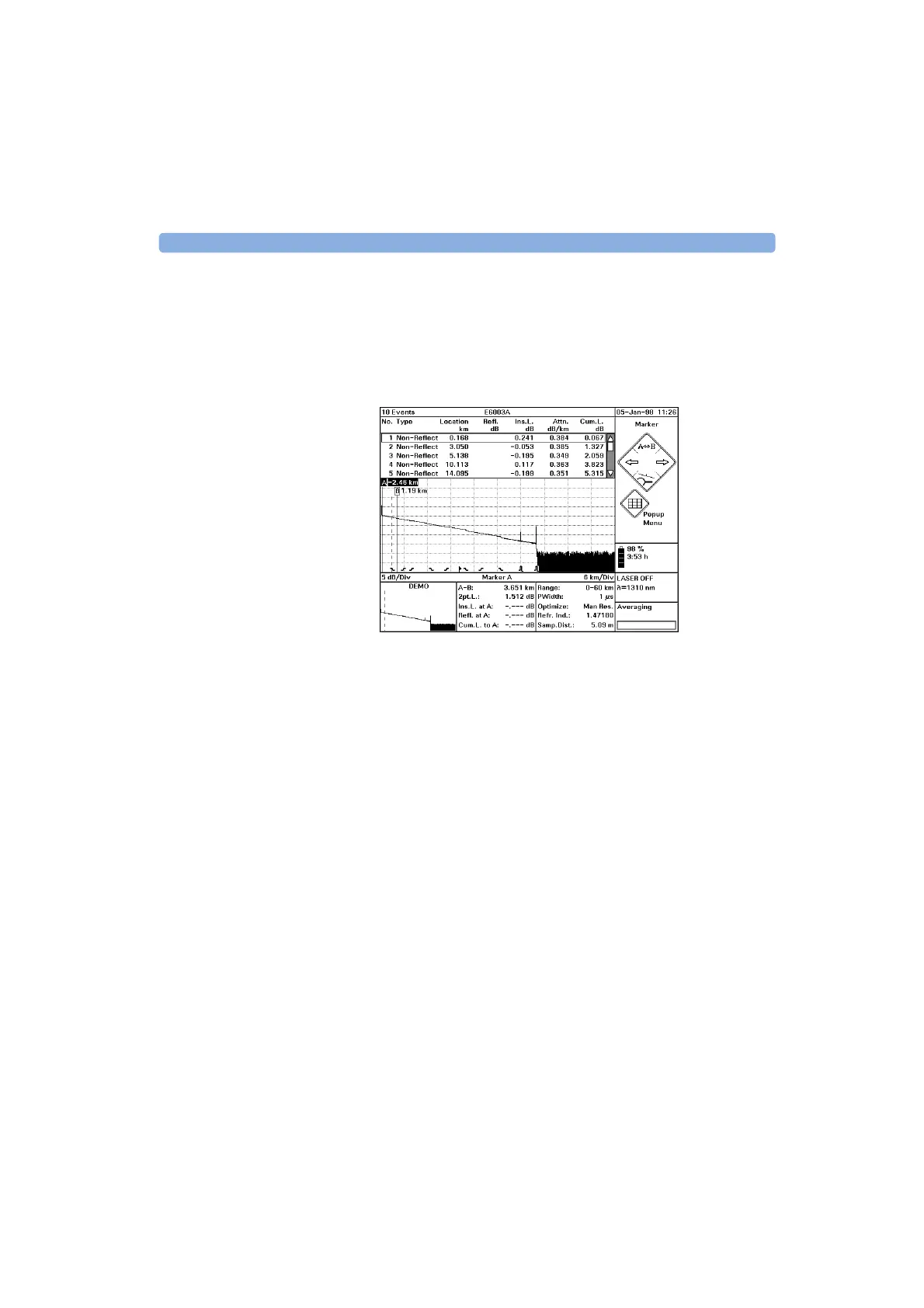

Figure 31 Trace with Horizontal Offset set
If you move the marker away from the offset, you see a
dashed vertical line marking the offset. Printouts also
contain this line (see “How to Print the Measurement” on
page 100).
NOTE Landmarks are always positioned relative to 0 km, while
Events have an absolute position on the fiber.
This means that when you set a Horizontal Offset, the
location distance of the landmark stays the same, but the
position of Events changes by the amount of the Offset.
By default, all Events to the left of the Offset are displayed
in the Event Table and the Event Bar at the foot of the
trace
