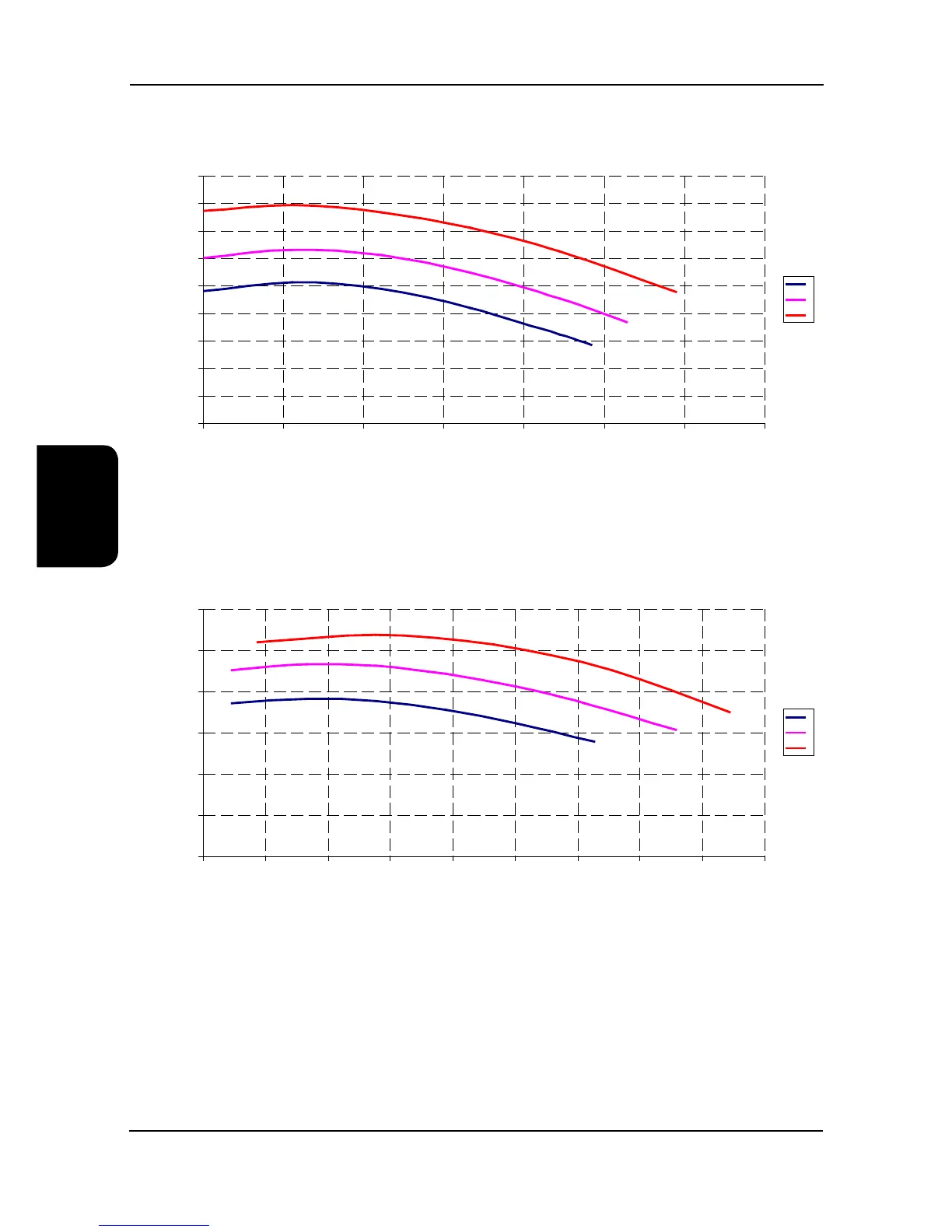

Pump Performance Curves
0
20
40
60
80
100
120
140
160
180
0 10 20 30 40 50 60 70
Flow rate l/s
Pump Head Avaliable KPa
1
2
3
1
2
3
0
50
100
150
200
250
300
0 5 10 15 20 25 30 35 40 45
Flow rate l/s
Pump Head Avaliable KPa
4
5
6
6
5
4
Pump Curves based upon water
