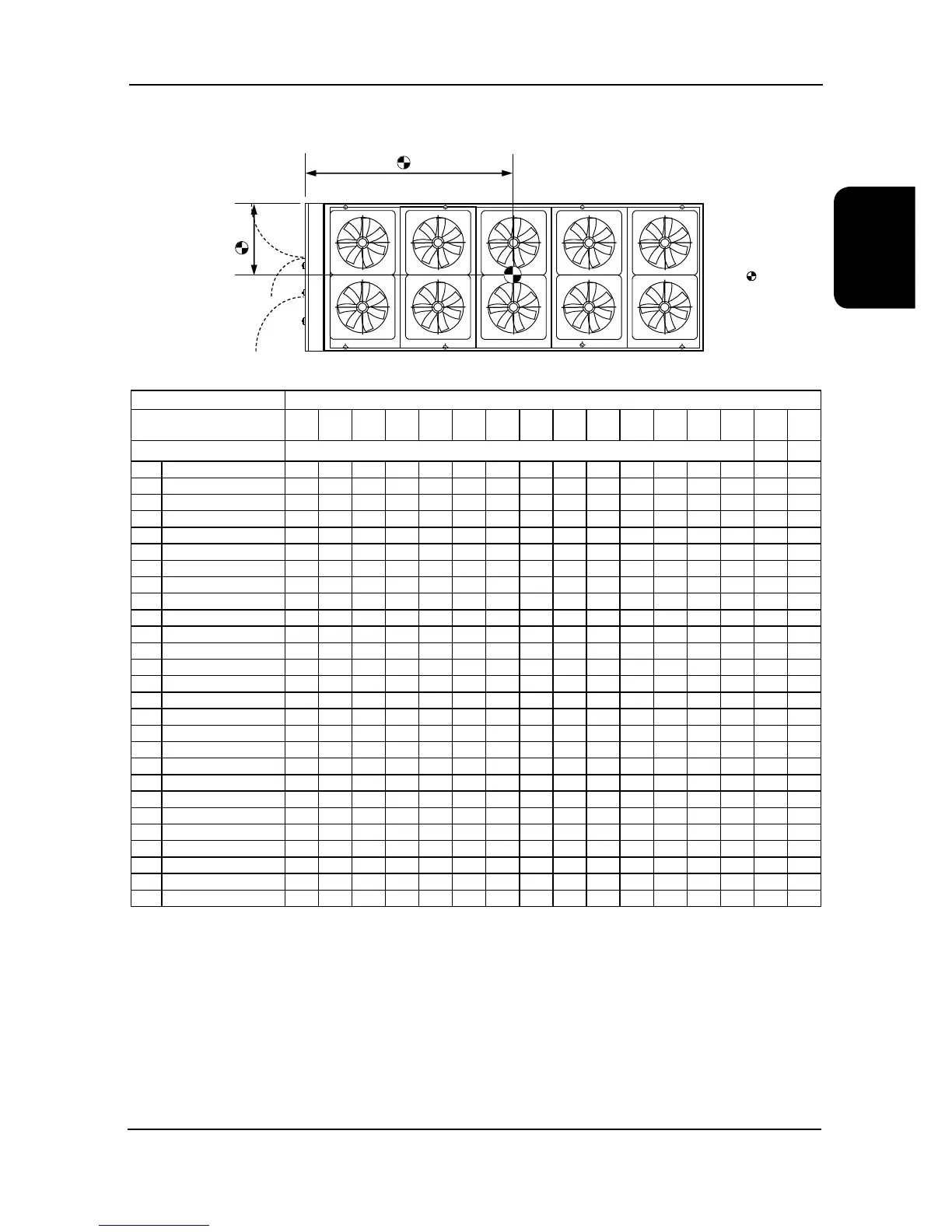

Installation Data
Weights, Point Loadings & Centre of Gravity (C of G) DCC
Point loads
L1 L2 L3 L4 L5 L6 L7 R1 R2 R3 R4 R5 R6 R7
C of
G 1
C of
G 2
kg mm mm
98 DCC047DR-08EPV0 500 565 615 685 775 850 935 2460
99 DCC049DR-08EYY0 525 565 600 750 810 855 915 2385
100 DCC049DR-10EPV0 525 505 485 465 710 680 660 630 940 2695
101 DCC051DR-10EYY0 530 505 490 470 720 690 665 635 940 2690
102 DCC052DR-09DYV0 530 510 490 470 730 700 675 650 935 2695
103 DCC056DR-10DVV0 535 510 490 470 745 715 685 655 925 2680
104 DCC058DR-10DVW0 560 575 590 610 725 750 770 790 960 2945
105 DCC061DR-10DWW0 635 635 640 640 865 870 870 875 935 3420
106 DCC065TR-10GPPY 670 655 645 630 935 920 900 875 925 3310
107 DCC050DR-12EPV0 620 595 570 595 525 820 785 750 785 690 955 3660
108 DCC052DR-12EYY0 625 600 575 600 530 825 795 760 795 700 955 3670
109 DCC054DR-11DYV0 700 650 595 650 520 920 850 780 850 680 960 4020
110 DCC058DR-12DVV0 700 650 600 650 520 930 865 790 865 690 955 4025
111 DCC060DR-12DVW0 705 655 600 655 525 940 875 800 875 700 950 4020
112 DCC063DR-12DWW0 710 655 600 655 520 955 885 810 885 700 945 4005
113 DCC069TR-11GPYY 495 485 480 470 660 645 635 625 955 2775
114 DCC074TR-12GYYY 515 495 480 460 710 680 660 630 935 2695
115 DCC056DR-13DYV0 600 580 560 535 785 760 730 700 960 3230
116 DCC059DR-14DVV0 610 585 560 530 800 770 735 695 955 3190
117 DCC061DR-14DVW0 610 585 560 530 815 780 745 705 950 3195
118 DCC065DR-14DWW0 615 590 560 530 830 795 755 715 945 3175
119 DCC068TR-13GPPY 590 570 555 570 525 750 730 705 730 670 975 3770
120 DCC072TR-14GPYY 595 580 565 580 535 780 760 735 760 695 960 3770
121 DCC077TR-13GYYV 700 650 595 650 520 915 850 780 850 680 960 4030
122 DCC080TR-14GYVV 710 660 600 660 520 925 860 785 860 680 960 4000
123 DCC070TR-16GPPY 745 690 635 690 535 965 895 825 895 695 965 4345
124 DCC077TR-15GYYY 755 700 640 700 535 975 905 830 905 695 965 4310
(1) Point load numbering starts from the control panel end of the chiller. Illustration above is for a 8 mount conguration
(2) Point loads indicated are for standard unit only
