AIREDALE DeltaChill - Page 32

Installation
Chillers
DeltaChill™ Air Cooled and FreeCool
32
Chiller Technical Manual 7267818 V1.13.0_01_2018
Installation Data

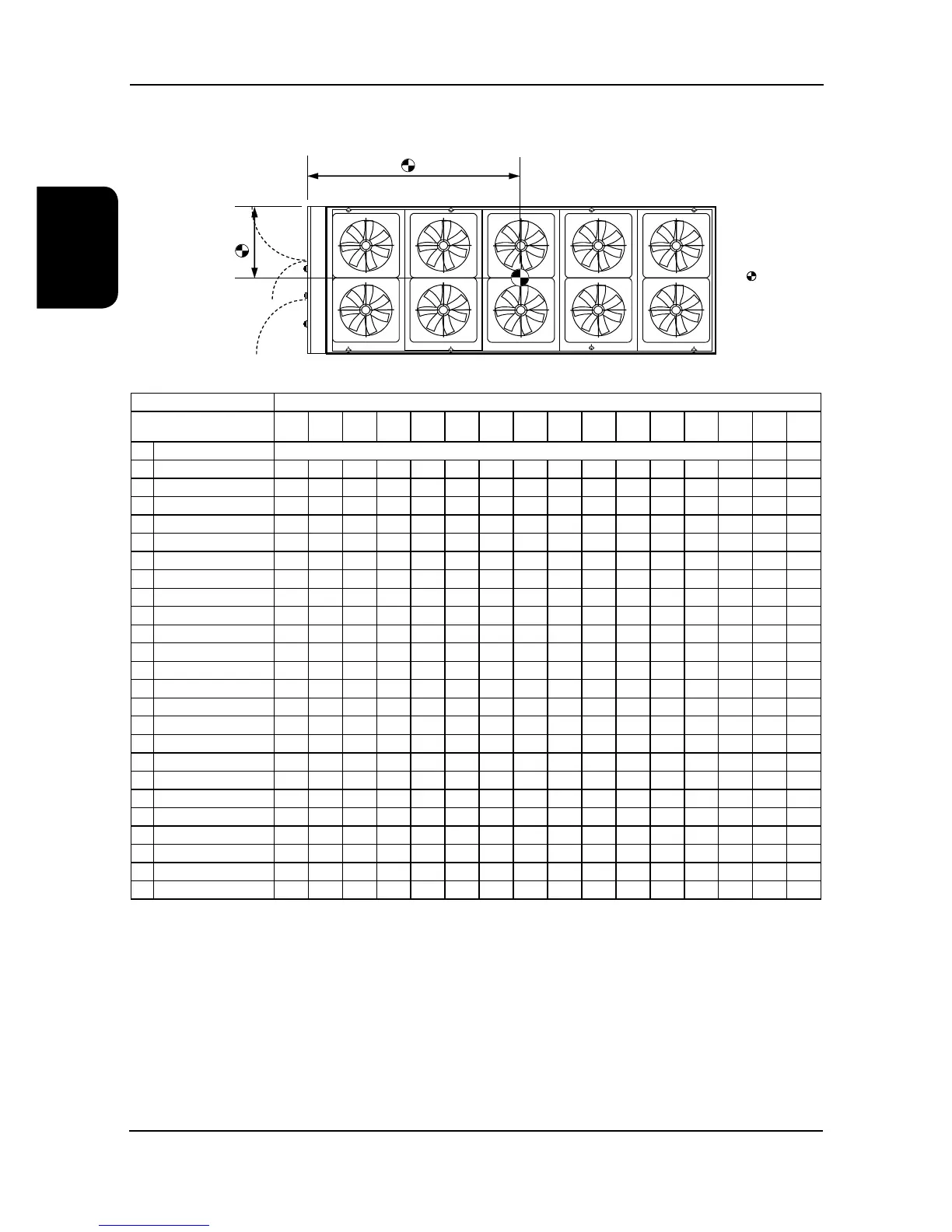

Weights, Point Loadings & Centre of Gravity (C of G) DCF
2
1
L1
L2
L3
L4
R1
R2
R3
R4
= C of G
(1) Point load numbering starts from the control panel end of the chiller. Illustration above is for a 8 mount conguration
(2) Point loads indicated are for standard unit only
Point load
L1 L2 L3 L4 L5 L6 L7 R1 R2 R3 R4 R5 R6 R7
C of
G 1
C of
G 2
kg mm mm
74 DCF059DX-15DYV0
740 705 665 705 595 850 805 760 805 685 1030 3580
75 DCF061DX-16DVV0
765 730 685 730 615 860 815 770 815 690 1040 3575
76 DCF066DX-16FVW0
780 750 715 750 650 885 850 810 850 740 1035 3645
77 DCF069DX-16FWW0
940 885 830 885 750 1030 975 910 975 825 1050 4180
78 DCF073TX-16GPPY
1035 975 910 975 800 1105 1040 970 1040 850 1065 4490
79 DCF079TX-15GYYY
1070 1000 920 1000 785 1160 1080 1000 1080 850 1060 4380
80 DCF082TX-16HYYV
800 765 725 760 765 595 755 855 815 770 815 815 815 620 1065 4835
81 DCF078TX-17GPYY
810 770 730 765 770 600 765 860 820 780 820 820 820 635 1065 4860
82 DCF082TX-18GYYY
855 820 785 815 820 635 820 895 860 820 860 860 860 665 1075 5380
83 DCF085TX-17HYVV
855 820 785 815 820 635 820 905 865 830 865 865 865 670 1070 5375
84 DCF089TX-18HVVV
855 820 785 815 820 635 820 910 875 835 875 875 875 675 1065 5365
85 DCF092TX-18HVVW
860 825 785 815 825 635 820 920 880 840 880 880 880 680 1065 5350
86 DCF094TX-18HVWW
725 690 655 690 585 830 790 745 790 670 1030 3585
87 DCF096TX-18HWWW
715 685 650 685 595 795 765 730 765 665 1040 3650
88 DCF074TX-19GPPY
725 695 665 695 605 810 775 740 775 675 1045 3650
89 DCF079TX-20GPYY
740 705 665 705 600 845 805 760 805 680 1030 3585
90 DCF085TX-19HYYV
805 760 710 760 645 905 855 805 855 725 1035 4180
91 DCF088TX-20HYVV
825 775 720 775 645 930 875 810 875 725 1035 4130
92 DCF084TX-21GYYY
850 795 740 795 660 940 885 820 885 730 1045 4115
93 DCF087TX-22HYYV
890 830 770 830 685 970 910 840 910 750 1055 4100
94 DCF092TX-21HVVV
765 730 695 725 730 560 740 805 770 730 770 770 770 600 1070 4910
95 DCF095TX-21HVVW
775 740 705 735 740 570 750 830 795 755 795 795 795 625 1060 4915
96 DCF097TX-21HVWW
825 790 755 785 790 610 800 880 845 810 845 845 845 660 1065 5400
97 DCF099TX-21HWWW
860 825 790 820 825 640 815 900 865 825 865 865 865 665 1075 5340
