AIREDALE DeltaChill - Page 31

Installation
Chillers
DeltaChill™Air Cooled and FreeCool
31
Chiller Technical Manual 7267818 V1.13.0_01_2018
Installation Data

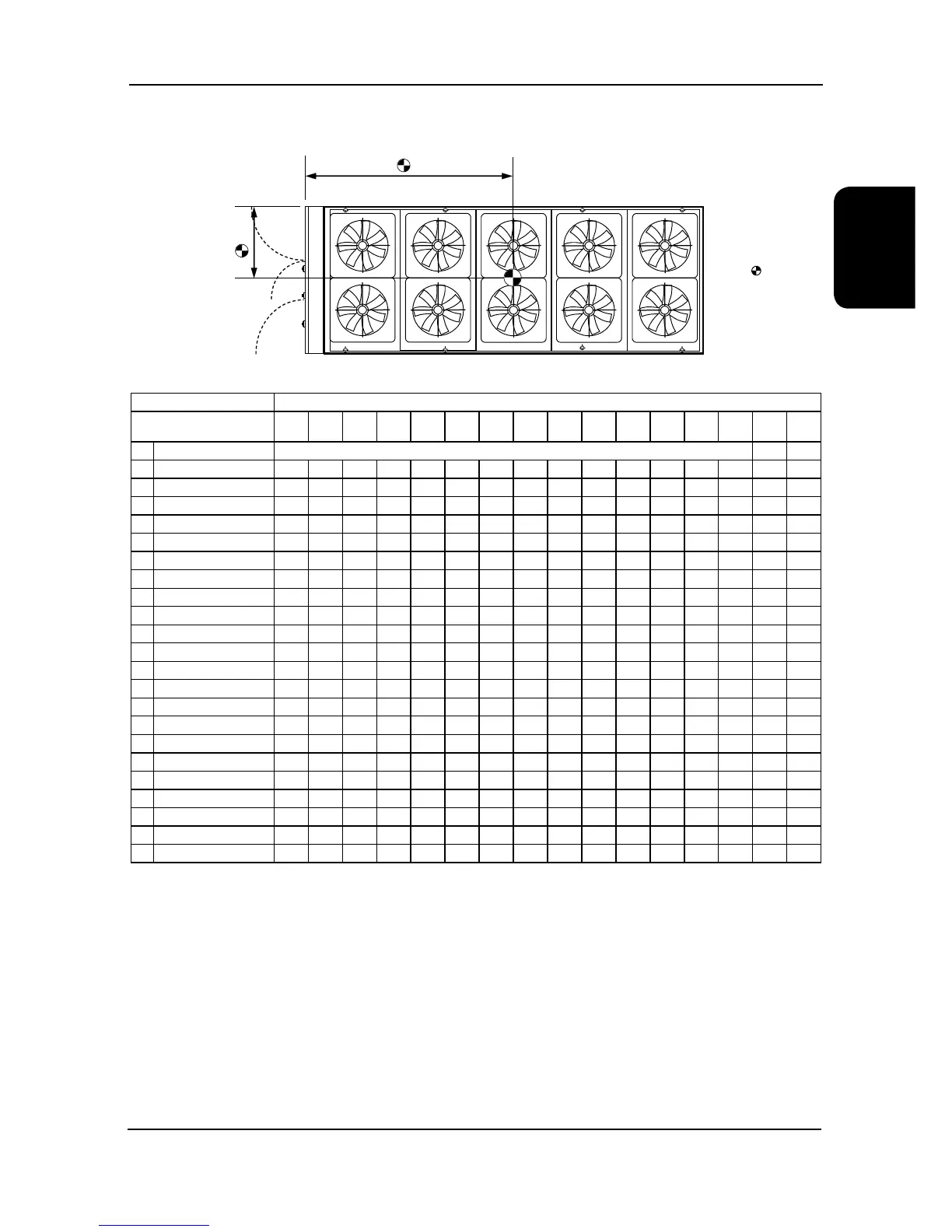

Weights, Point Loadings & Centre of Gravity (C of G) DCF
2
1
L1
L2
L3
L4
R1
R2
R3
R4
= C of G
(1) Point load numbering starts from the control panel end of the chiller. Illustration above is for a 8 mount conguration
(2) Point loads indicated are for standard unit only
Point load
L1 L2 L3 L4 L5 L6 L7 R1 R2 R3 R4 R5 R6 R7
C of
G 1
C of
G 2
kg mm mm
52 DCF047DX-09DXY0
685 670 655 640 825 805 790 770 1000 2755
53 DCF049DX-09DPY0
665 660 655 650 780 775 770 765 1015 2815
54 DCF051DX-10DPV0
680 675 670 665 795 790 785 780 1015 2810
55 DCF053DX-10DYY0
700 685 670 650 845 825 810 790 1000 2750
56 DCF049DX-11DXY0
800 770 735 695 935 895 855 810 1020 3190
57 DCF051DX-11DPY0
830 790 750 700 965 920 870 815 1020 3150
58 DCF053DX-12DPV0
860 815 770 715 990 935 885 820 1030 3125
59 DCF055DX-11DYV0
865 820 770 715 1005 950 895 830 1025 3115
60 DCF055DX-12DYY0
810 785 765 785 725 915 890 865 890 820 1035 3780
61 DCF058DX-12DVV0
820 800 780 800 740 950 925 900 925 855 1025 3785
62 DCF062DX-12FVW0
940 885 825 885 740 1080 1015 945 1015 845 1030 4140
63 DCF065DX-12FWW0
980 920 860 920 775 1105 1040 970 1040 875 1035 4155
64 DCF050DX-13DXY0
1090 1020 945 1020 810 1160 1085 1005 1085 860 1065 4410
65 DCF053DX-13DPY0
1110 1035 955 1035 810 1185 1100 1015 1100 865 1065 4365
66 DCF055DX-14DPV0
1115 1040 960 1040 815 1195 1115 1025 1115 870 1065 4365
67 DCF057DX-13DYV0
1120 1040 960 1040 815 1205 1125 1035 1125 880 1060 4360
68 DCF057DX-14DYY0
1125 1045 960 1045 815 1220 1135 1045 1135 885 1055 4345
69 DCF060DX-14DVV0
800 770 740 700 930 890 855 810 1025 3195
70 DCF064DX-14FVW0
785 760 740 710 885 860 835 805 1035 3260
71 DCF068DX-14FWW0
810 780 750 710 910 880 845 805 1035 3215
72 DCF069TX-13GPPY
825 790 750 700 960 915 865 810 1025 3150
73 DCF075TX-14GPYY
730 695 655 695 585 835 795 750 795 670 1030 3580
