ABC
D
E
FG
A
BCD

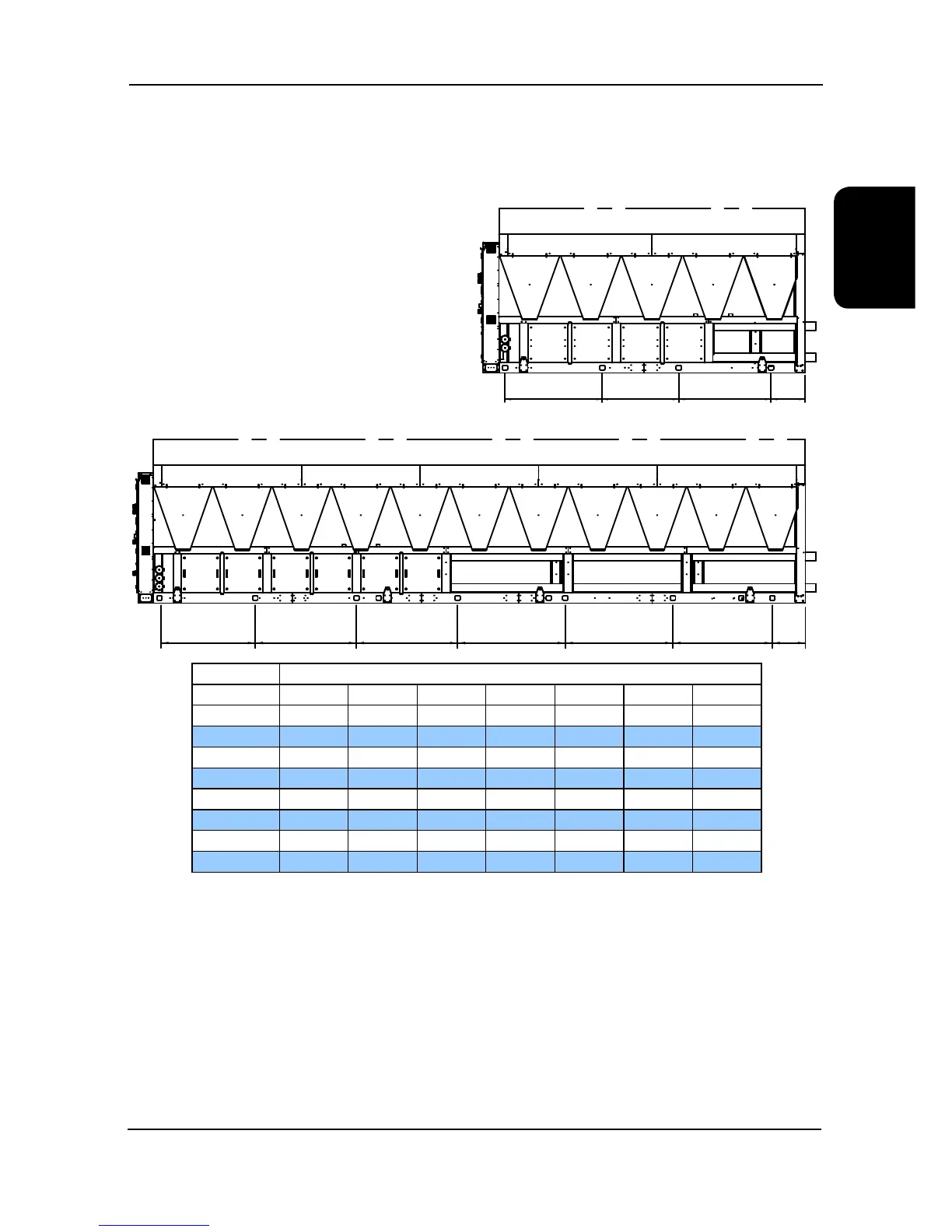

Mounting hole centres for the units start from one end depicted by “A”. As the case size increases more mounting points
are required.
This mounting is required ensuring the unit does not move.
Dimensions (mm)
A B C D E F G
8 Fan Case 652 1711 2053 N/A N/A N/A N/A
10 Fan Case 630 1706 1414 1800 N/A N/A N/A
12 Fan Case 630 2286 1934 1830 N/A N/A N/A
14 Fan Case 630 1706 1711 1934 1830 N/A N/A
16 Fan Case 395 1700 1908 2564 2377 N/A N/A
18 Fan Case 630 2340 2160 2568 2377 N/A N/A
20 Fan Case 630 1400 1740 1740 1933 1934 1861
22 Fan Case 630 1900 2056 2056 1933 1934 1799
Installation Data Uni
Mounting Hole Centres
