AIREDALE DeltaChill - Installation Data

Installation
Chillers
DeltaChill™ Air Cooled and FreeCool
30
Chiller Technical Manual 7267818 V1.13.0_01_2018
Installation Data

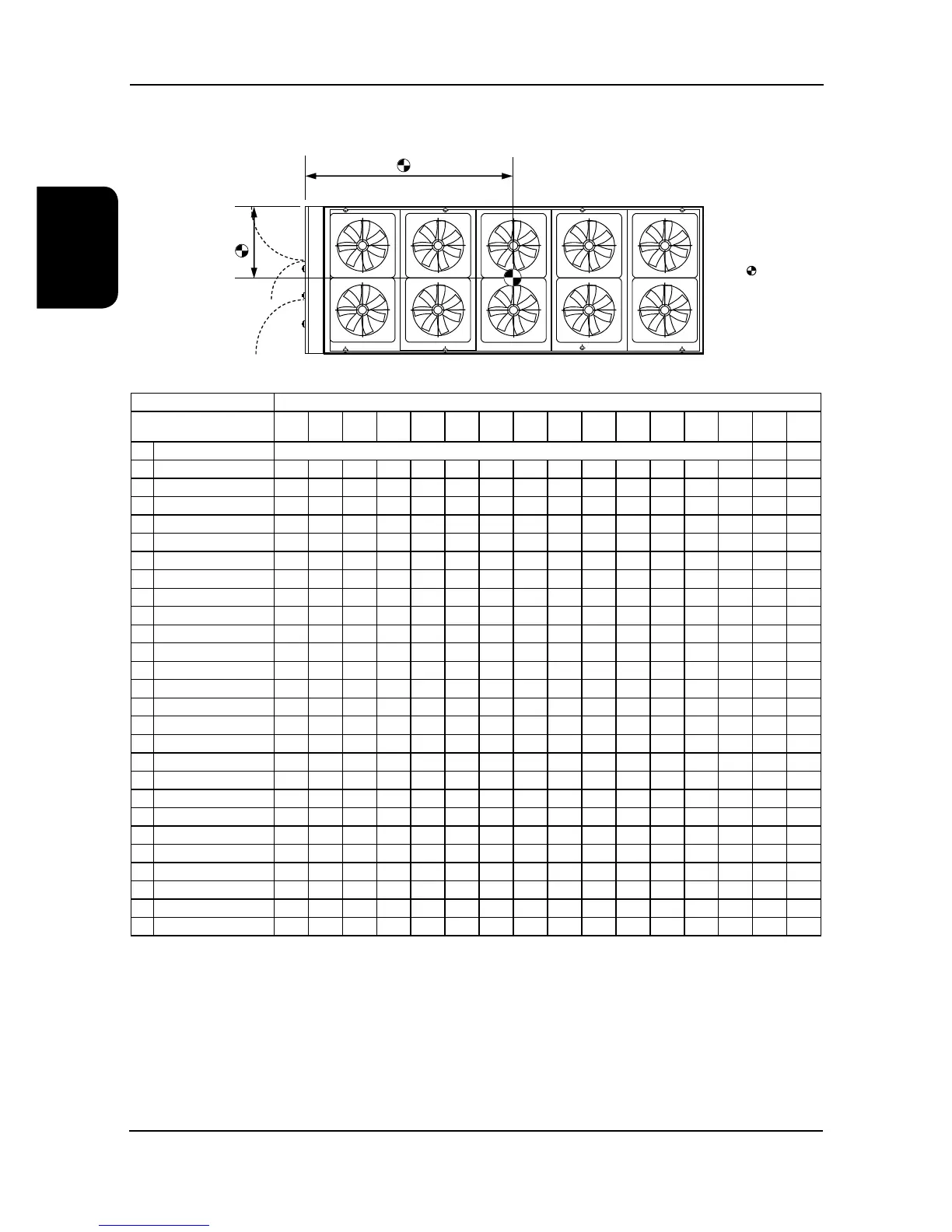

Weights, Point Loadings & Centre of Gravity (C of G) DCF
(1) Point load numbering starts from the control panel end of the chiller. Illustration above is for a 8 mount conguration
(2) Point loads indicated are for standard unit only
2
1
L1
L2
L3
L4
R1
R2
R3
R4
= C of G
Point load
L1 L2 L3 L4 L5 L6 L7 R1 R2 R3 R4 R5 R6 R7
C of
G 1
C of
G 2
kg mm mm
26 DCF066DR-14FVW0
795 775 755 775 720 870 845 825 845 785 1055 3795
27 DCF070DR-14FWW0
810 790 770 790 735 905 885 860 885 825 1040 3805
28 DCF073TR-13GPPY
925 870 815 870 735 1030 970 905 970 815 1045 4165
29 DCF078TR-14GPYY
960 910 850 910 770 1055 1000 935 1000 845 1050 4180
30 DCF082TR-13HYYV
1075 1005 935 1005 810 1110 1040 965 1040 835 1085 4440
31 DCF085TR-14HYVV
1100 1025 950 1025 810 1135 1060 980 1060 840 1085 4390
32 DCF075TR-16GPPY
1100 1030 950 1030 815 1145 1070 990 1070 845 1080 4395
33 DCF082TR-15GYYY
1105 1030 950 1030 815 1155 1080 995 1080 850 1075 4390
34 DCF085TR-16HYYV
1105 1030 950 1030 810 1170 1090 1005 1090 855 1070 4375
35 DCF090TR-15HVVV
790 760 730 695 890 860 825 785 1035 3215
36 DCF092TR-15HVVW
770 750 730 710 850 825 805 780 1050 3275
37 DCF094TR-15HVWW
795 770 740 710 875 845 815 780 1050 3230
38 DCF096TR-15HWWW
820 785 745 700 925 885 840 790 1035 3170
39 DCF080TR-17GPYY
720 685 650 685 585 805 765 725 765 655 1040 3605
40 DCF085TR-18GYYY
730 695 660 695 595 820 780 740 780 665 1040 3605
41 DCF088TR-17HYVV
755 720 680 720 615 830 790 745 790 670 1050 3595
42 DCF093TR-18HVVV
770 740 710 740 650 855 820 785 820 725 1045 3670
43 DCF095TR-18HVVW
920 875 820 875 745 980 930 875 930 795 1065 4210
44 DCF098TR-18HVWW
1020 965 905 965 795 1055 995 935 995 825 1085 4520
45 DCF100TR-18HWWW
1055 985 910 985 785 1110 1040 960 1040 825 1075 4410
46 DCF088TR-19HYYV
790 755 715 750 755 585 755 820 785 745 785 785 785 605 1080 4875
47 DCF090TR-20HYVV
800 765 730 760 765 595 770 830 795 755 795 795 795 620 1080 4895
48 DCF095TR-21HVVV
840 810 775 805 810 625 820 860 830 795 830 830 830 650 1090 5425
49 DCF098TR-21HVVW
845 810 780 805 810 625 825 870 835 800 835 835 835 655 1085 5425
50 DCF101TR-21HVWW
845 815 780 805 815 630 820 875 845 805 845 845 845 660 1080 5415
51 DCF103TR-21HWWW
850 815 780 810 815 630 820 885 850 815 850 850 850 665
1075 5395
