Installation Data
Water System
Chilled water pipe work and ancillary components must be installed in accordance with:
● National and Local Water supply company standards
● The manufacturer’s instructions are followed when tting ancillary components
● The system liquid is treated to prevent corrosion and algae forming
● In ambient of 3°C and below, where static water can be expected, or when water supply temperatures of +5°C
or below is required, the necessary concentration of Glycol or use of an electrical trace heater must be included
● The schematic is referred to as a guide to ancillary recommendations
1
2
3

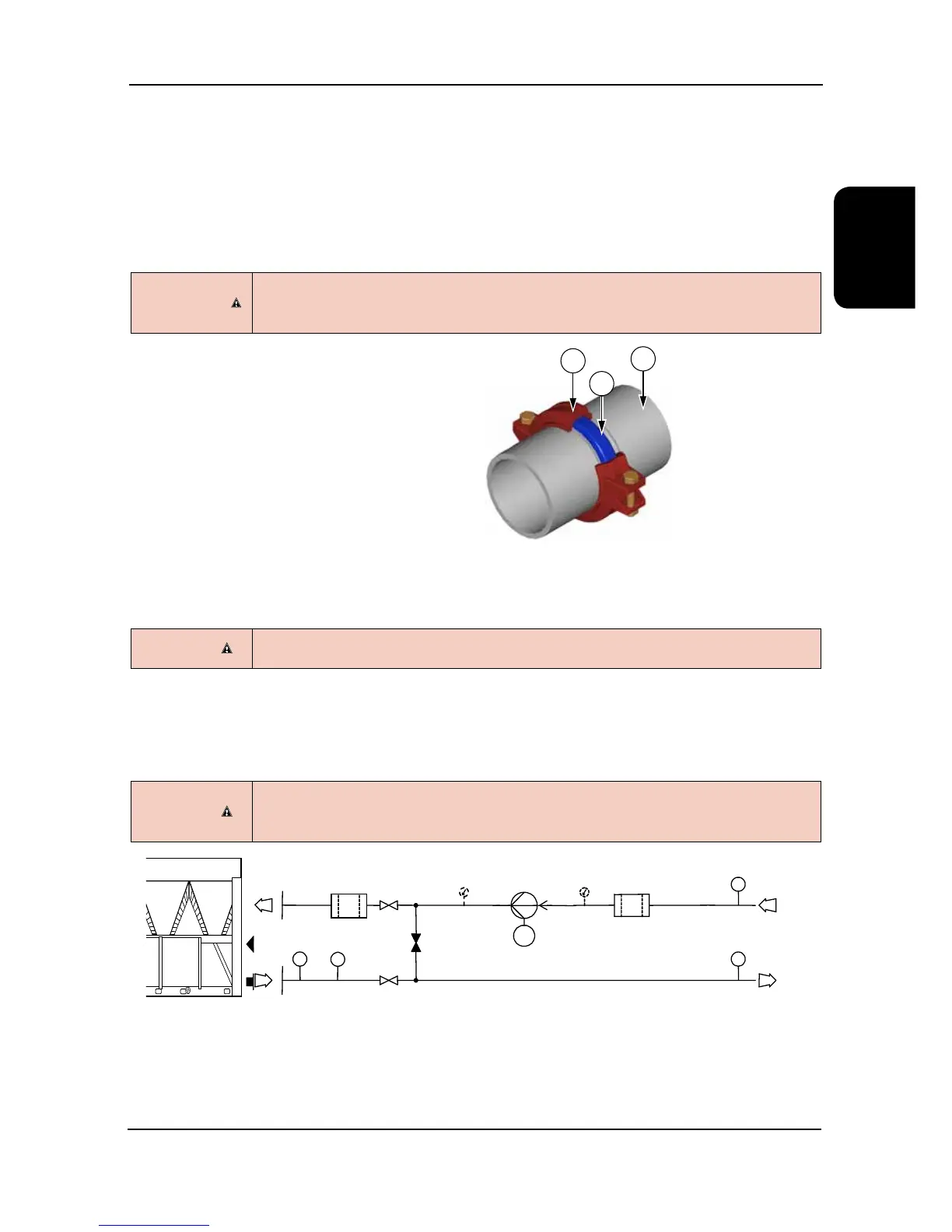

Grooved & Clamped Type Connection
1. Clamp
2. Gasket
3. Counter pipe
TT
FS
M
P
P
5
2
6
3
4
4
1
Standard Recommended Installation
General
The following diagram illustrates the minimum component installation requirements. A wide range of optional extras are
available to suit various applications.
The water ow commissioning valve set is not shown in the diagram, as the valve can be tted elsewhere within the
chilled water circuit.
1 Filter 20 Mesh (If not included within unit)
2 Pump
3 Filter 1/16”
4 Pressure Sensor
5 Flow Switch
6 Flushing Bypass Leg
The unit water connections are NOT designed to support external pipe work, pipe work MUST be
supported separately.
IMPORTANT
The following installation recommendations should be adhered to. Failure to do this may invalidate
the chiller warranty.
CAUTION
Full design water ow MUST be maintained at all times. Variable water volume is NOT
recommended and will invalidate warranty.
The correct operation of the ow proving device is critical if the Chiller warranty is to be valid.
CAUTION
