Installation Data

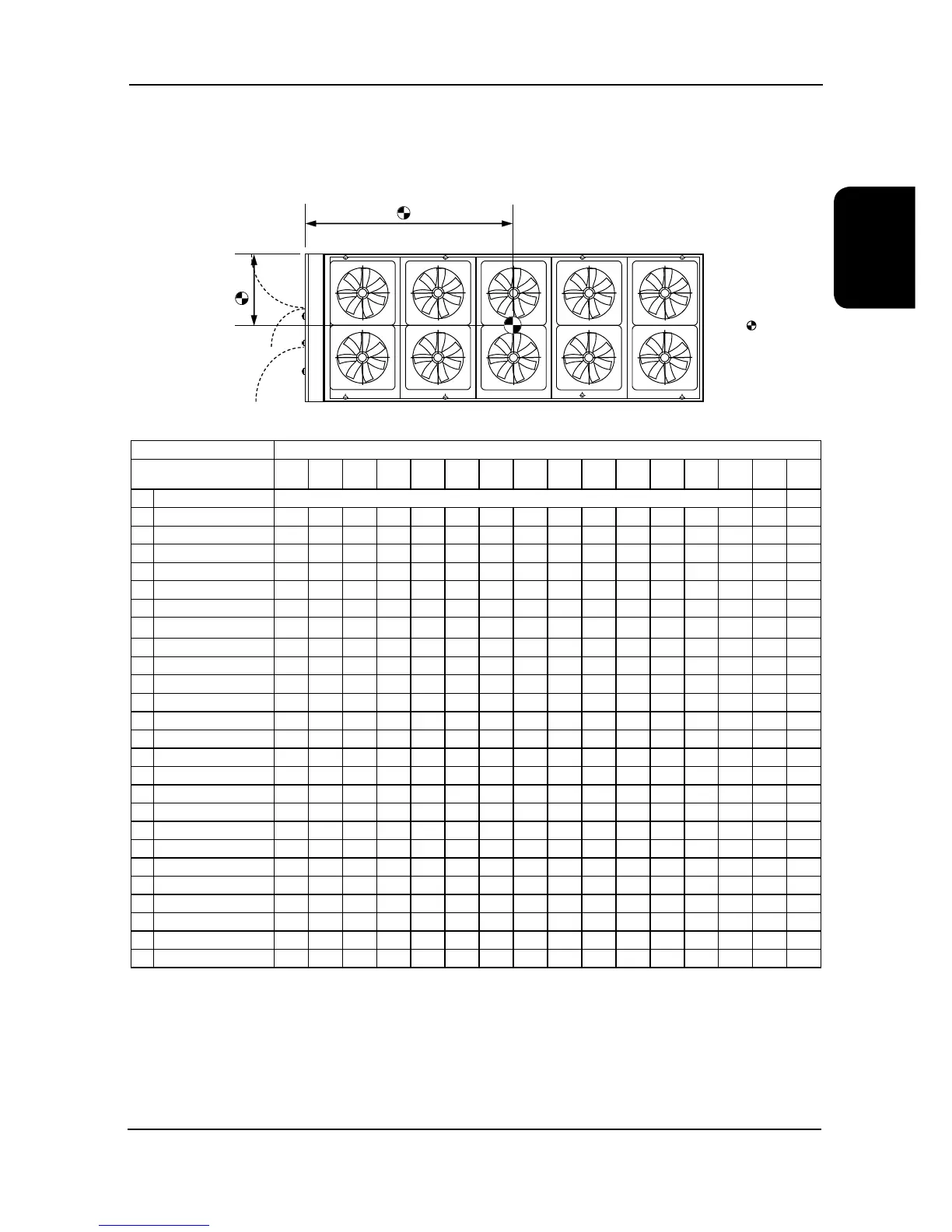

Weights, Point Loadings & Centre of Gravity (C of G) DCF
(1) Point load numbering starts from the control panel end of the chiller. Illustration above is for a 8 mount conguration
(2) Point loads indicated are for standard unit only
= C of G
Point load
L1 L2 L3 L4 L5 L6 L7 R1 R2 R3 R4 R5 R6 R7
C of
G 1
C of
G 2
kg mm mm
1 DCF046DR-07DXY0
650 745 820 810 925 1020 985 2480
2 DCF048DR-07DPY0
620 740 840 750 890 1010 1000 2545
3 DCF051DR-08DPV0
655 755 840 785 910 1010 1005 2500
4 DCF053DR-08DYY0
685 760 825 850 945 1025 985 2440
5 DCF049DR-09DXY0
675 660 645 630 800 780 765 745 1015 2755
6 DCF051DR-09DPY0
695 675 665 650 820 800 785 765 1015 2755
7 DCF053DR-10DPV0
710 695 680 665 840 820 805 785 1010 2760
8 DCF055DR-09DYV0
715 695 680 665 855 830 815 795 1005 2750
9 DCF055DR-10DYY0
720 740 760 785 840 870 895 920 1015 2950
10 DCF058DR-10DVV0
850 845 845 845 1015 1010 1010 1005 1005 3395
11 DCF062DR-10FVW0
895 875 855 830 1090 1065 1040 1010 995 3290
12 DCF065DR-10FWW0
840 815 790 815 745 945 915 885 915 835 1040 3750
13 DCF069TR-10GPPY
850 825 800 825 755 955 925 900 925 850 1040 3765
14 DCF051DR-11DXY0
945 895 845 895 770 1040 990 930 990 850 1050 4215
15 DCF053DR-11DPY0
950 900 850 900 775 1055 1000 940 1000 860 1045 4220
16 DCF055DR-12DPV0
950 905 850 905 775 1065 1010 950 1010 865 1040 4215
17 DCF057DR-12DYY0
955 905 850 905 775 1075 1020 960 1020 870 1035 4200
18 DCF058DR-11DYV0
675 660 650 635 795 775 760 745 1015 2760
19 DCF060DR-12DVV0
655 650 650 645 750 745 740 740 1030 2820
20 DCF065DR-12FVW0
670 665 665 660 765 760 755 750 1030 2820
21 DCF068DR-12FWW0
690 675 660 645 810 795 780 760 1015 2760
22 DCF074TR-11GPYY
795 765 735 695 900 865 830 790 1035 3210
23 DCF079TR-12GYYY
820 785 745 700 930 885 840 790 1035 3165
24 DCF059DR-13DYV0
850 810 765 710 950 905 855 800 1040 3140
25 DCF062DR-14DVV0
855 820 780 735 995 955 910 855 1020 3180
