AIREDALE DeltaChill - Lifting Dimensions

Installation
Chillers
DeltaChill™Air Cooled and FreeCool
39
Chiller Technical Manual 7267818 V1.13.0_01_2018
Dimension (mm)
A1
(Min)
A2
(Min) B C
7 / 8 Fan Unit 4000 N/A N/A 3680
9 / 10 Fan Unit 5000 N/A N/A 4415
11 / 12 Fan Unit 3500 3000 2340 3145
13 / 14 Fan Unit 4500 3000 2340 4077
15 / 16 Fan Unit 5000 3000 2800 4750
17 / 18 Fan Unit 6000 3000 2950 5730
19 / 20 Fan Unit 7000 4000 3150 6660
21 / 22 Fan Unit 7000 5000 4000 6930
B
A1
A2
C
C
2290

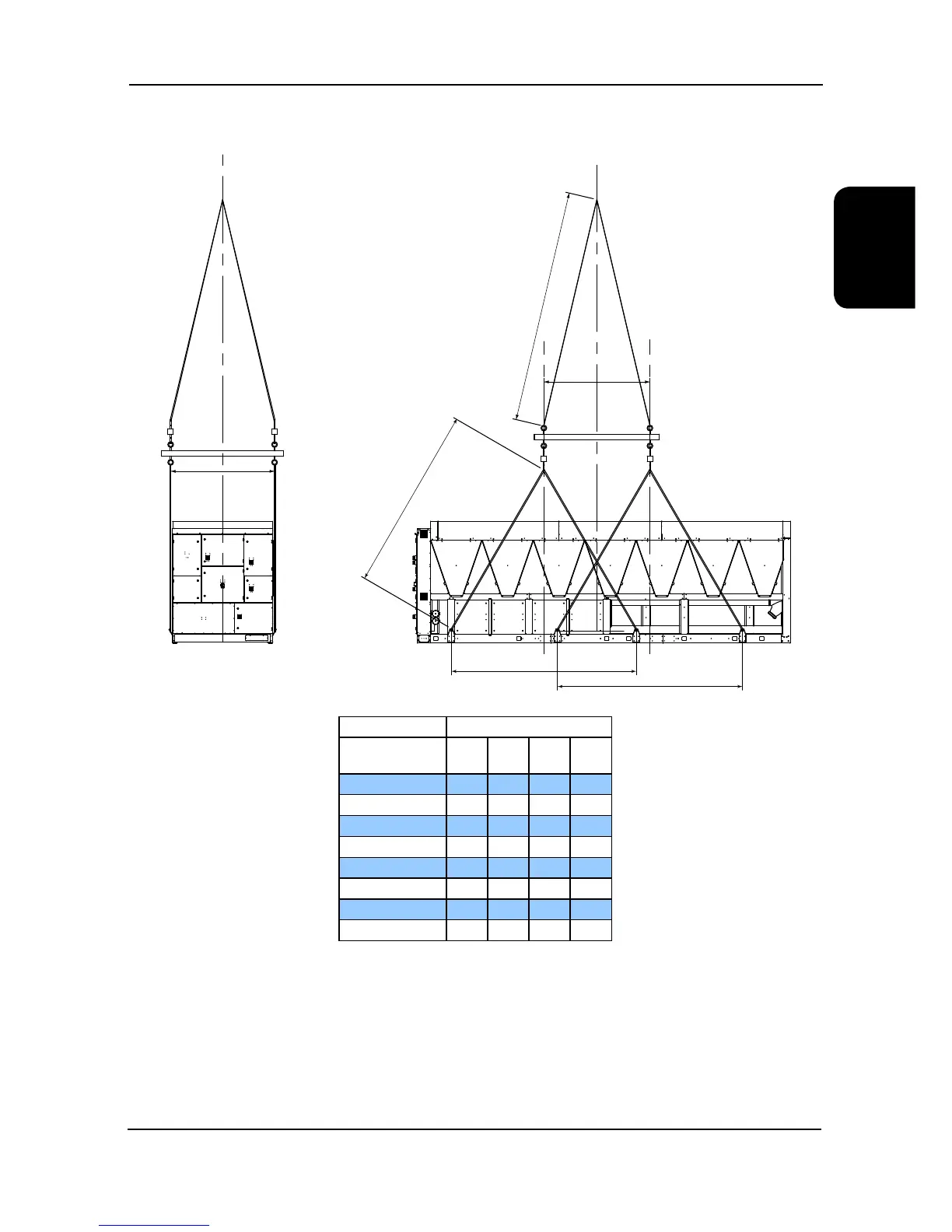

Installation Data
Lifting Dimensions
