Mechanical

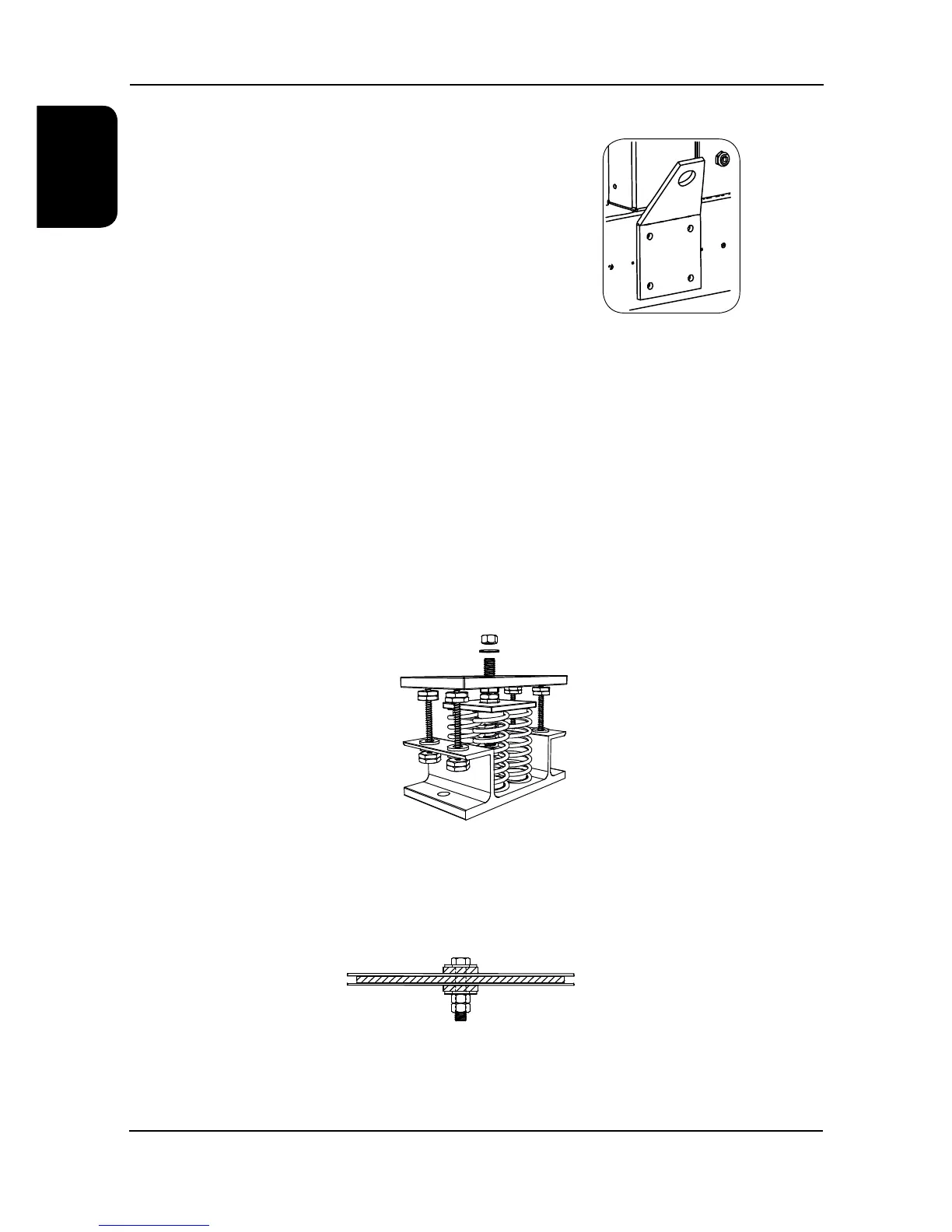

Lifting Lugs
Lifting Lugs shall be tted to the unit enabling full lifting requirements.
The lifting lug hole diameter is 40 mm.
Discharge Plenum -Condenser Fan
Constructed from galvanised sheet steel coated with epoxy baked powder
paint, this plenum directs discharge air vertically, thus limiting air re-circulation
and provides a degree of acoustic reduction in the horizontal plane; factory
tted.
Standard unit colour is Light Grey (RAL 7035).
For further details refer to Dimensional Data.
Extended Discharge Air Plenum - Condenser Fan
Constructed from galvanised sheet steel coated with epoxy baked powder paint, this plenum directs discharge air
vertically, thus limiting air re-circulation and provides a degree of acoustic reduction in the horizontal plane; factory tted.
For details please contact Airedale.
Standard unit colour is Light Grey (RAL 7035).
For further details refer to Dimensional Data.
Control Panel Rain Hood
A rain hood shall be supplied to protect the control panel from certain weather conditions. An integral light shall be also
tted.
Compressor Enclosures
Compressor enclosures shall be tted to the extra quiet units. Enclosures are tted as standard when refrigerant leak
detection is selected.
Optional Features
Anti Vibration Mounts (Spring Type)
Spring vibration isolators can be supplied loose for on site tting to the base frame of each unit.
The isolators are suitable for tting to structural steelwork providing the surface is level and of sufcient strength where a
high level of vibration elimination is required.
The Spring vibration isolator requires an overall clearance of 162 mm (unloaded) with a loaded dimension (dependant
on load) of 136 mm.
Anti Vibration Mounts (Pad Type)
Pad vibration isolators can be supplied loose for on site tting to the base frame of each unit.
The isolators are suitable for tting to structural steelwork providing the surface is level and of sufcient strength where a
moderate degree of vibration elimination is required.
