Installation Data
Unit Lifting
● Employ lifting specialists
● Local codes and regulations relating to the lifting of this type of equipment should be observed
● Use the appropriate spreader bars/lifting slings (provided by others) with the eye bolts/lugs provided.
● Attach individual lifting chains to each of the lifting eye bolts/lifting lugs provided; each individual chain must be
capable of lifting the whole unit
● Lifting Eye size is 40mm.
Do not use 1 chain between 2 lifting points to avoid load shift.
Only use lifting points provided.
Chains/slings MUST NOT interfere with the casing or fan assembly to avoid damage.
Lift the unit slowly and evenly.
If the unit is dropped, it should immediately be checked for damage and reported to Airedale.

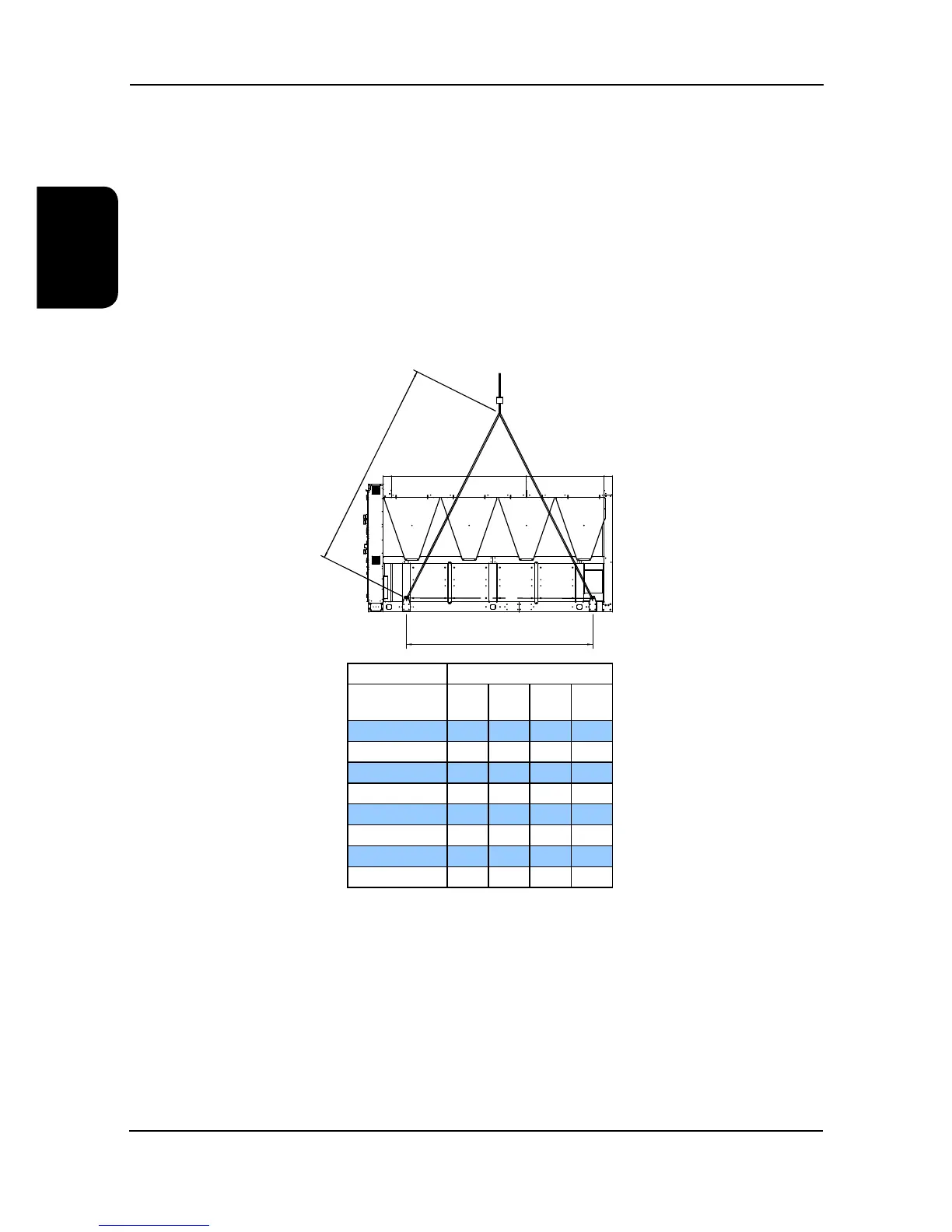

Lifting Dimensions
C
A1
Dimension (mm)
A1
(Min)
A2
(Min) B C
7 / 8 Fan Unit 4000 N/A N/A 3680
9 / 10 Fan Unit 5000 N/A N/A 4415
11 / 12 Fan Unit 3500 3000 2340 3145
13 / 14 Fan Unit 4500 3000 2340 4077
15 / 16 Fan Unit 5000 3000 2800 4750
17 / 18 Fan Unit 6000 3000 2950 5730
19 / 20 Fan Unit 7000 4000 3150 6660
21 / 22 Fan Unit 7000 5000 4000 6930
