AIREDALE DeltaChill - Page 35

Installation
Chillers
DeltaChill™Air Cooled and FreeCool
35
Chiller Technical Manual 7267818 V1.13.0_01_2018
Installation Data

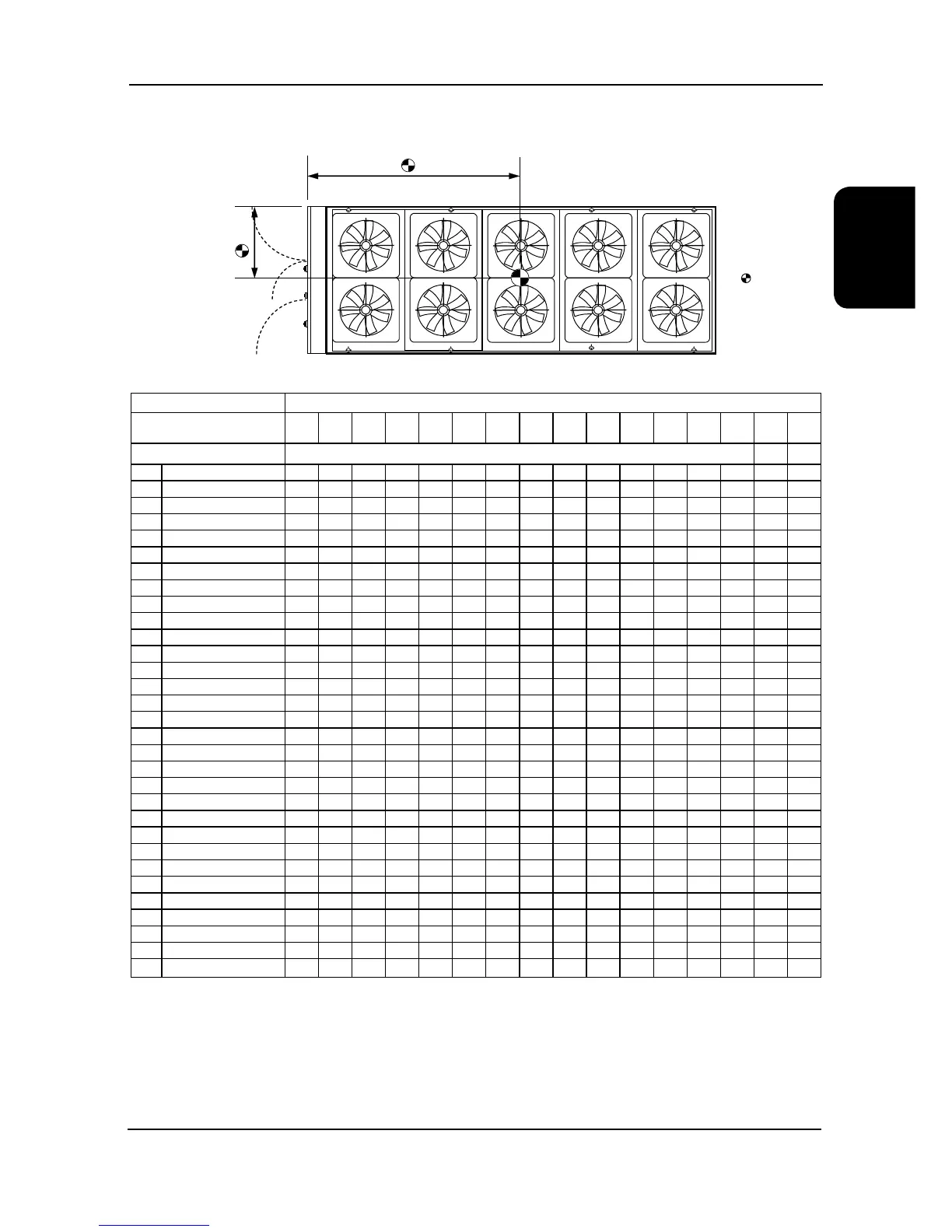

Weights, Point Loadings & Centre of Gravity (C of G) DCC
(1) Point load numbering starts from the control panel end of the chiller. Illustration above is for a 8 mount conguration
(2) Point loads indicated are for standard unit only
Point loads
L1 L2 L3 L4 L5 L6 L7 R1 R2 R3 R4 R5 R6 R7
C of
G 1
C of
G 2
kg mm mm
152 DCC052DX-14EYY0 690 640 590 640 515 955 885 810 885 705 935 4020
153 DCC054DX-13DYV0 755 700 645 700 540 1015 940 860 940 725 945 4310
154 DCC057DX-14DVV0 770 710 650 710 540 1030 950 870 950 720 950 4280
155 DCC060DX-14DVW0 770 715 650 715 540 1040 960 880 960 730 945 4280
156 DCC063DX-14DWW0 775 715 650 715 540 1050 970 885 970 735 940 4275
157 DCC066TX-13GPPY 775 715 655 715 540 1065 985 895 985 740 935 4260
158 DCC070TX-14GPYY 590 575 555 535 780 755 735 705 955 3255
159 DCC055DX-15DYV0 610 585 555 525 825 795 755 710 940 3180
160 DCC059DX-16DVV0 550 525 500 525 450 725 690 655 690 590 960 3605
161 DCC061DX-16DVW0 555 530 500 530 450 730 695 660 695 590 955 3595
162 DCC065DX-16DWW0 555 530 500 530 450 740 705 665 705 600 950 3595
163 DCC068TX-16GPPY 560 530 500 530 450 755 715 675 715 605 945 3575
164 DCC075TX-15GYYY 670 630 585 630 525 885 830 770 830 690 955 4125
165 DCC077TX-16GYYV 745 695 640 695 550 975 910 840 910 720 960 4400
166 DCC072TX-17GPYY 770 710 650 710 540 1025 950 865 950 720 950 4285
167 DCC077TX-18GYYY 560 525 490 520 525 445 445 750 705 655 705 705 705 490 945 4570
168 DCC080TX-17GYVV 565 530 495 525 530 450 450 755 710 660 710 710 710 495 950 4585
169 DCC083TX-18GVVV 590 560 525 550 560 475 470 785 740 695 740 740 740 510 950 5000
170 DCC086TX-18GVVW 595 560 525 555 560 475 475 795 750 705 750 750 750 515 945 5000
171 DCC088TX-18GVWW 595 560 525 555 560 475 475 800 755 710 755 755 755 520 945 4990
172 DCC091TX-18GWWW 595 565 530 555 565 475 470 810 765 715 765 765 765 520 940 4970
173 DCC070TX-19GPPY 535 515 490 515 455 685 660 630 660 585 970 3690
174 DCC074TX-20GPYY 545 520 495 520 445 720 685 650 685 585 955 3610
175 DCC079TX-21GYYY 610 565 520 565 455 790 730 670 730 590 965 4035
176 DCC080TX-19GYYV 615 570 520 570 450 800 740 675 740 585 965 3990
177 DCC081TX-22GYYV 620 570 520 570 450 810
750 685 750 590 960 3985
178 DCC082TX-20GYVV 620 575 520 575 450 825 760 690 760 595 955 3965
179 DCC085TX-21GVVV 550 520 485 515 520 435 455 705 665 625 665 665 665 480 970 4680
180 DCC088TX-21GVVW 555 525 495 520 525 445 460 725 685 645 685 685 685 500 960 4680
181 DCC091TX-21GVWW 590 560 525 555 560 470 475 780 740 695 740 740 740 510 955 5010
182 DCC094TX-21GWWW
595 565 530 560 565 480 475 790 745 700 745 745 745 510 955 4980
2
1
L1
L2
L3
L4
R1
R2
R3
R4
= C of G
