5.2.3. METAR
The METAR screen displays graphical Aviation Routine Weather Reports with a color
coded ag at weather reporting airports. A METAR is an hourly Aviation Routine
Weather Report from the reporting airport (not all airports have a forecast). METARs
issued in the U.S. and Canada generally provide METAR information about the airport,
date and time, wind direction and speed, visibility, precipitation, current weather
conditions, cloud cover and layer, temperature, barometric pressure, and any other
critical data. International METARs vary slightly (Figure 5-39).
The EFD1000/500 MFD displays METARs as colored ags. The METAR screen displays
the ags, at the airport location from which the METAR is reported, overlaid on a basic
weather map. A legend is available that describes the colors of the METAR ags used.
METAR ags are decluttered based on the size of the airport as outlined in Table 5-9.
Airport Size Map Range in nm
10 - 60 80 100 200 500 1000 2000
Large Airports
1
Medium/Large Airports
1
Medium Airports
1
Medium /Small Airports
1
Small Airports
1
Table 5-9 METAR Declutter Settings

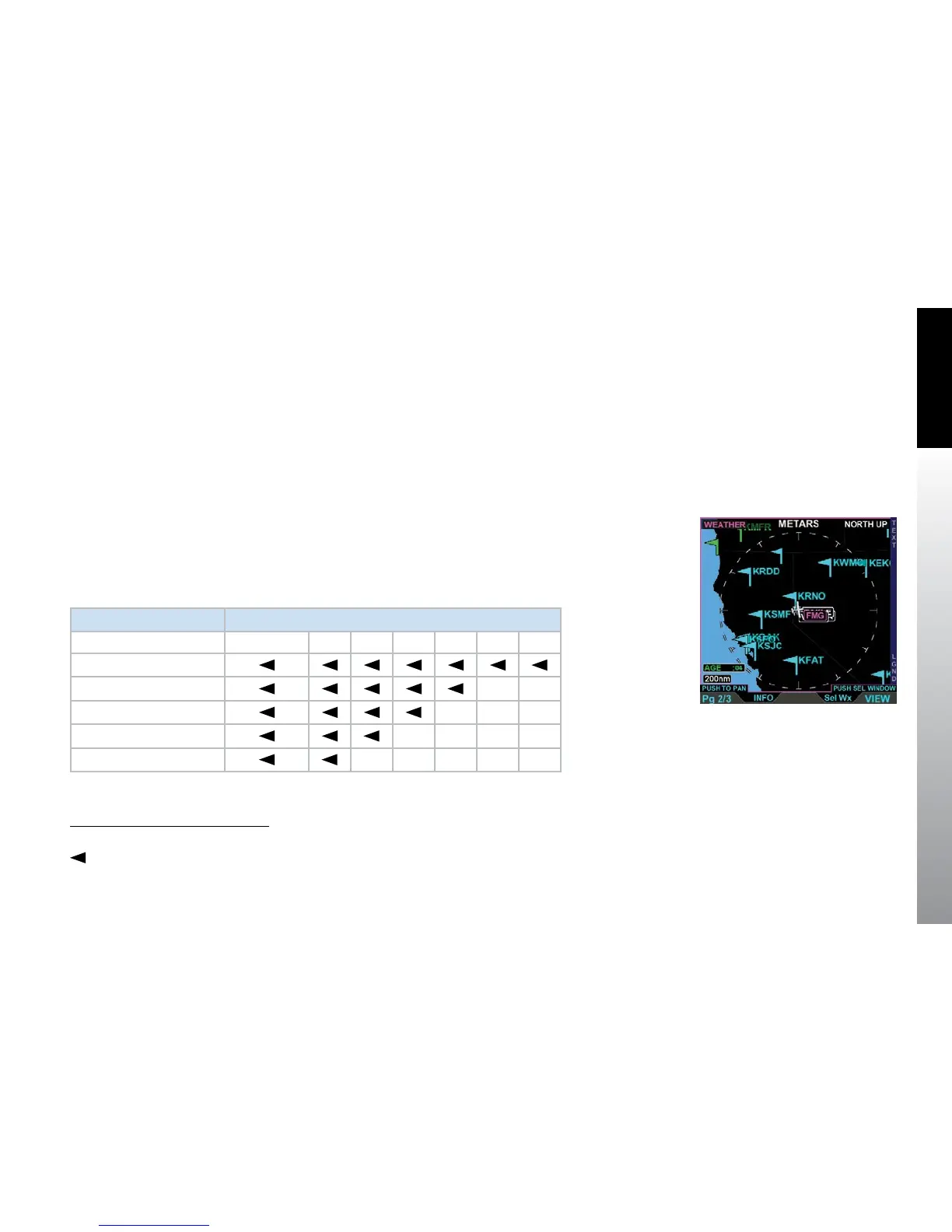

Figure 5-39
METAR Weather
Product Page
1. Only the METAR Flag is displayed.
METAR and airport identier displayed
To Next Page
