Aspen Avionics Evolution EFD 1000 MFD - Figure 6-38 Traffic Removed; Figure 6-39 Traffic Sensor Failure; Figure 6-40 Traffic Sensor Link Lost

CHAPTER 6 EXPANDED EMERGENCY AND ABNORMAL PROCEDURES
EFD1000/500 MFD Pilot’s Guide
Page 6-22 091-00006-001 REV B
EFD1000/500 MFD Pilot’s Guide
Page 6-23091-00006-001 REV B
CAUTION
Applicability
MFD
500
MFD
1000
MFD
1000
(REV)

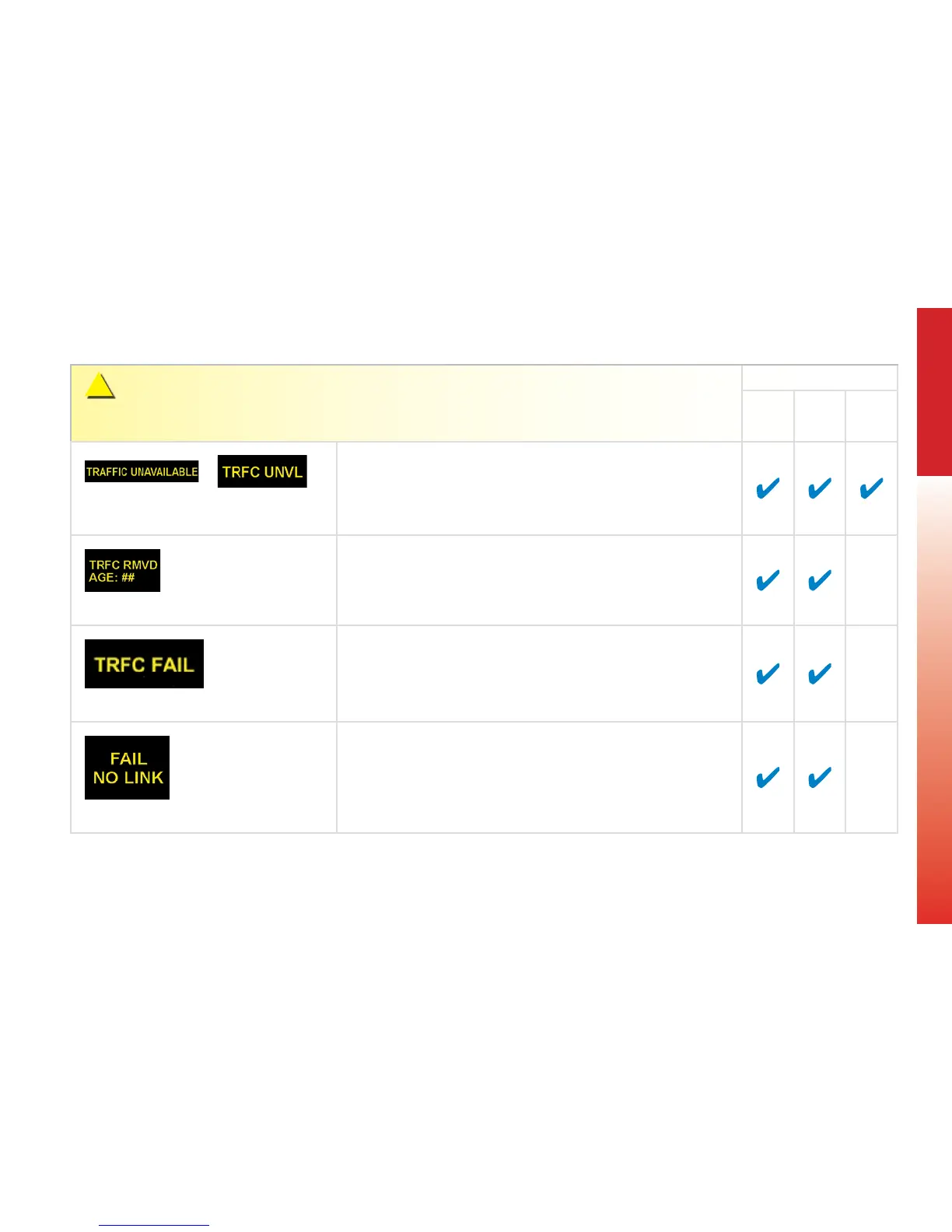

Figure 6-36 TIS Trac
Unavailable
Figure 6-37 TIS Trac
Unavailable
Presented when TIS data is unavailable.
Figure 6-38 Trac Removed
Presented when that indicates trac data has not been refreshed
within 6 seconds.
Figure 6-39 Trac Sensor Failure
Presented that indicates a trac sensor failure.
Figure 6-40 Trac Sensor Link Lost
Presented that indicates that the link between the EFD and trac
has been lost (e.g., trac sensor is OFF).
