Aspen Avionics Evolution EFD 1000 MFD - Figure 6-41 WX-500 Self Test Failure; Figure 6-42 WX-500 Self Test Failure; Figure 6-43 WX-500 Sensor Error; Figure 6-44 WX-500 Antenna Error

CHAPTER 6 EXPANDED EMERGENCY AND ABNORMAL PROCEDURES
EFD1000/500 MFD Pilot’s Guide
Page 6-24 091-00006-001 REV B
EFD1000/500 MFD Pilot’s Guide
Page 6-25091-00006-001 REV B
CAUTION
Applicability
MFD
500
MFD
1000
MFD
1000
(REV)

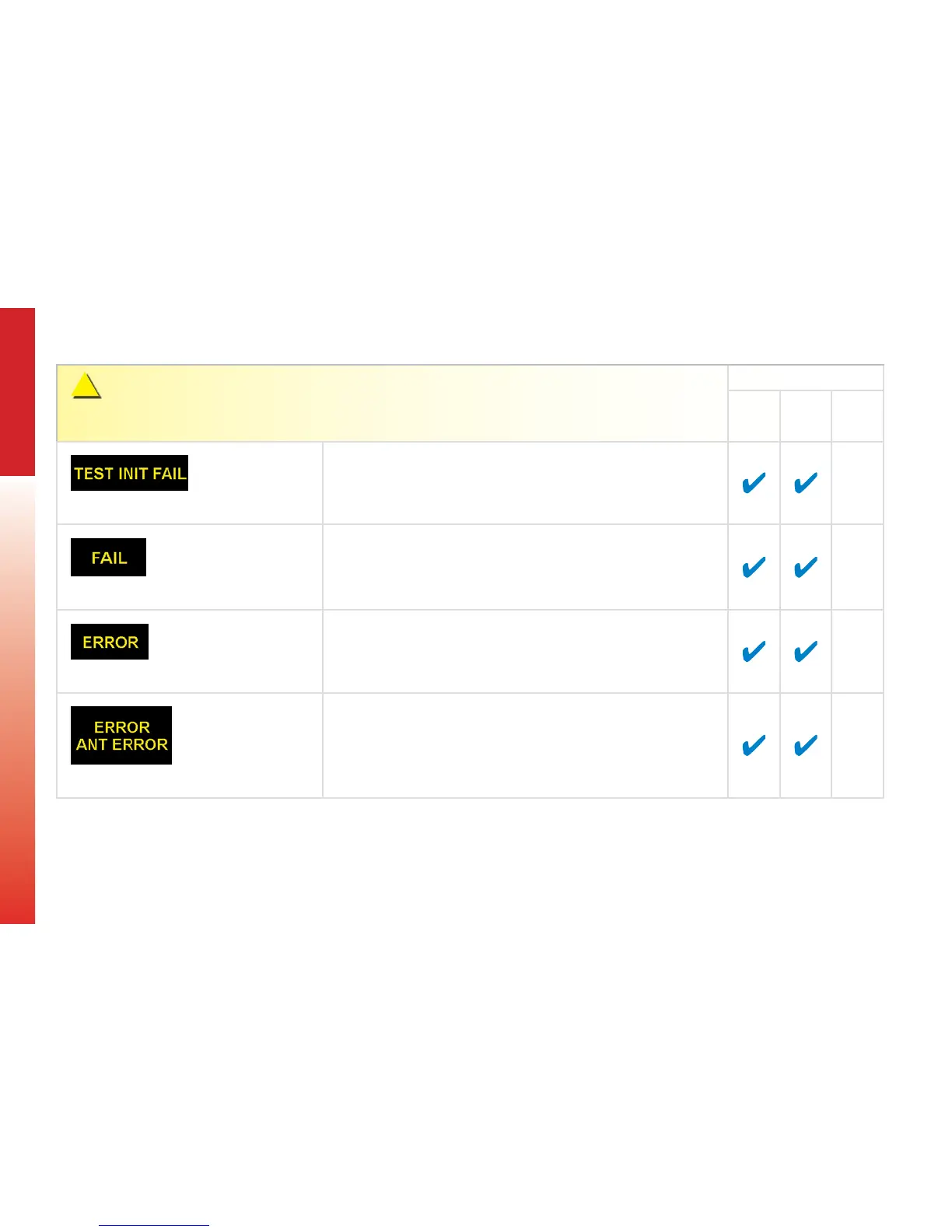

Figure 6-41 WX-500 Self Test Failure
Presented when a lightning (spherics) sensor self-test report is not
been received within 10 seconds.
Figure 6-42 WX-500 Self Test Failure
Presented for a failed lightning (spherics) sensor self-test or sensor
status is a fatal fault or undened.
Figure 6-43 WX-500 Sensor Error
Presented when the lightning (spherics) sensor has an undened
recoverable error
Figure 6-44 WX-500 Antenna Error
Presented when the lightning (spherics) sensor has a recoverable
antenna error
