Aspen Avionics Evolution EFD 1000 MFD - Figure 6-59 Traffic Data Older than Six Seconds; Figure 6-60 WX-500 Strike Rate; Figure 6-61 WX-500 Cell Rate; Figure 6-62 WX-500 Self-Test

CHAPTER 6 EXPANDED EMERGENCY AND ABNORMAL PROCEDURES
EFD1000/500 MFD Pilot’s Guide
Page 6-28 091-00006-001 REV B
EFD1000/500 MFD Pilot’s Guide
Page 6-29091-00006-001 REV B
ADVISORY
Applicability
MFD
500
MFD
1000
MFD
1000
(REV)

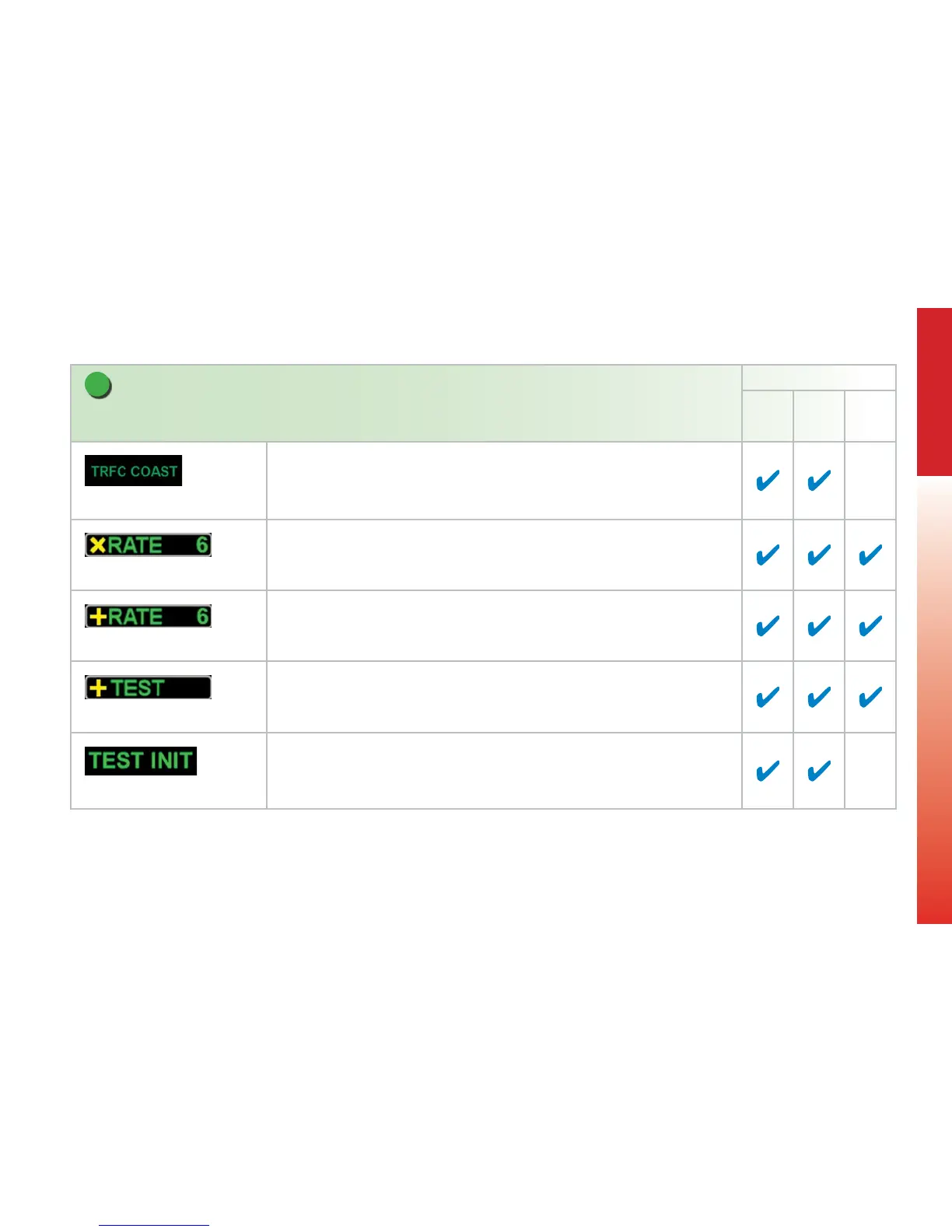

Figure 6-59 Trac Data Older Than Six Seconds
Indicates the trac data has not been refreshed within 6 seconds.
Figure 6-60 WX-500 Strike Rate
Lightning (spherics) Strike display mode selected. The rate indicates the approximate
number of lightning strikes detected per minute.
Figure 6-61 WX-500 Cell Rate
Lightning (spherics) Cell clustering display mode selected. The rate indicates the
approximate number of lightning strikes detected per minute.
Figure 6-62 WX-500 Self-Test
Self-test mode annunciation that replaces lightning (spherics) Strike / Cell rate
information.
Figure 6-63 WX-500 Self-Test
Lightning (spherics) Self-test mode selected.
