The data age (except Puerto Rico NEXRAD) will display in black text on an amber
background if the XM receiver is not operational for 30 seconds after an error is
detected. When the Expiration time has been reached, and no updates have been
received, the age annunciation will display with a red slash and all data is removed from
the display. Table 5-17 outlines the weather age annunciations:

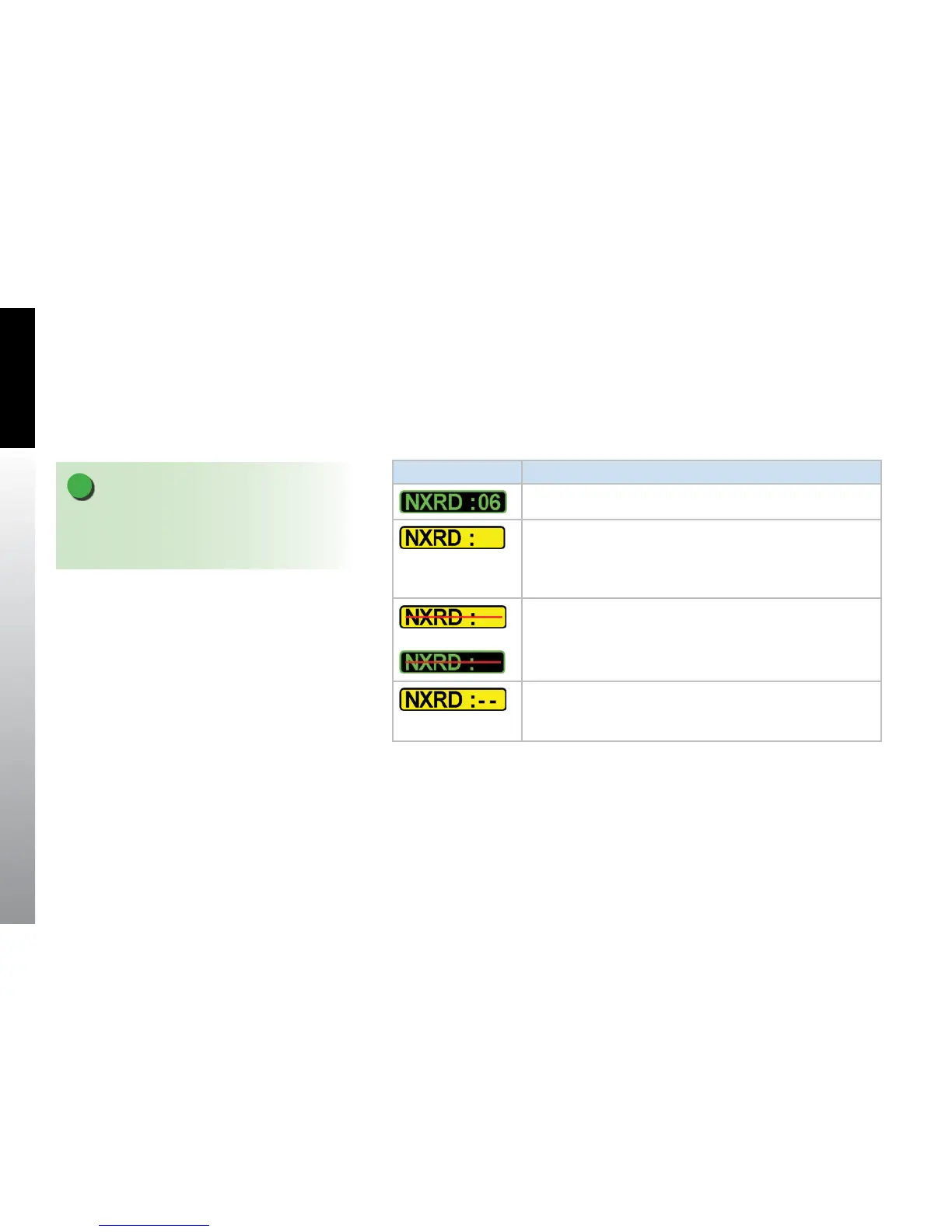

Message Description
• Data is being received and updated.
• An error was detected but information has not expired
and may still be valid
• XM receiver is not operational for 30 seconds after an
error is detected
• A weather product is enabled and the age of the data
exceeds the expiration time identied in Table5-16,
additionally, the corresponding graphical data is
removed from the display
• Upon start up, if no valid data has been received from
the receiver
• When the generated data age is not available
Table 5-17 Weather Age Annunciations
NOTE
All Data Link Weather feature time stamps are labeled
AGE, except for Convective (NXRD, LTNG, SIG) and
AIRMET/SIGMET (AIR, SIG).
