Edit Main Menu Items
1. Access the Main Menu.
2. Navigate to the desired menu page.
3. Push the Menu Key of the desired option. The menu label turns magenta and
the EDIT VALUE label displays above the Right Knob (Figure 4-25).
4. Rotate the Right Knob to the desired value.
5. Push the Right Knob to save the value and return to menu navigation mode.
6. Push the MENU Button to exit the Main Menu.
Refer to Chapter 5 for detailed information about Menu options for individual VIEWs.
NOTE
Pressing the Right Knob returns to navigation mode
and allows selection of other menu options on dierent
pages. Pressing another menu key on the current menu
page saves any changes made, and activates the
newly selected option for editing.
NOTE
Upon reaching the end of a list of editable menu
options, continued rotation of the knob does not result
in the continuous “wrapping” through the available
editable menu options.

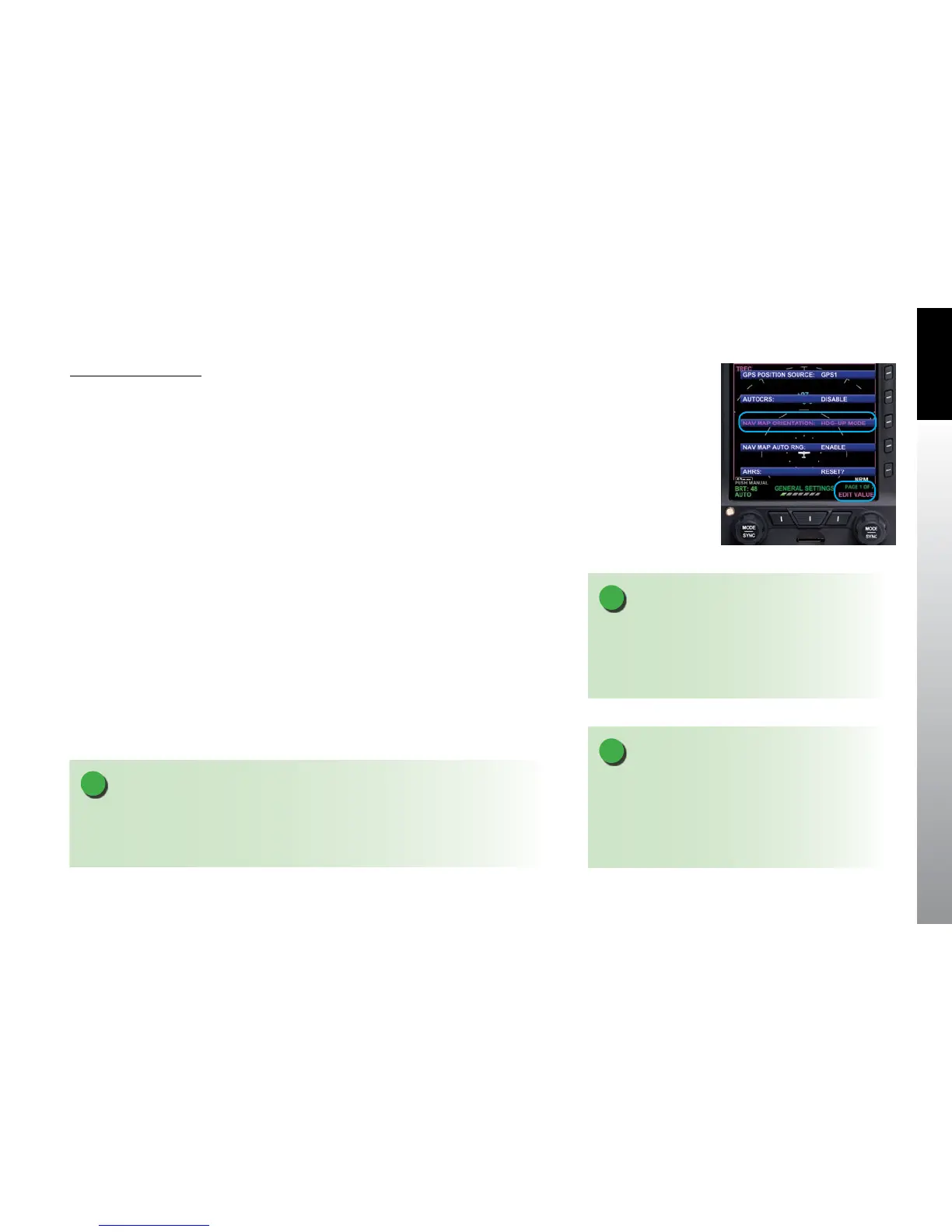

Figure 4-25
EDIT VALUE Displays
Above Right Knob
NOTE
The AUTOCRS and AHRS options on the Main Menu, General Settings page of the
EFD500 MFD will display in gray since the EFD500 MFD does not incorporate the
ADAHRS sensor set.
