When altitude, attitude or airspeed ADAHRS is invalid or unavailable the ADAHRS FAIL
message displays in amber on the lower right of the data bar (Figure 5-86).
When a cross check attitude condition occurs in the EFD1000 MFD the CHECK AHRS
message displays in amber on the lower right of the data bar (Figure 5-87).
The Barometric Pressure of the MFD is received from the PFD. Any changes made to
the Barometric Pressure from the PFD or from the Reversionary mode of the MFD
is reected on both the PFD and the MFD. See the PFD Pilot’s Guide, Chapter
4 Reference Guide, Barometric Pressure Adjustment Section for detailed
information about setting the Barometric Pressure.

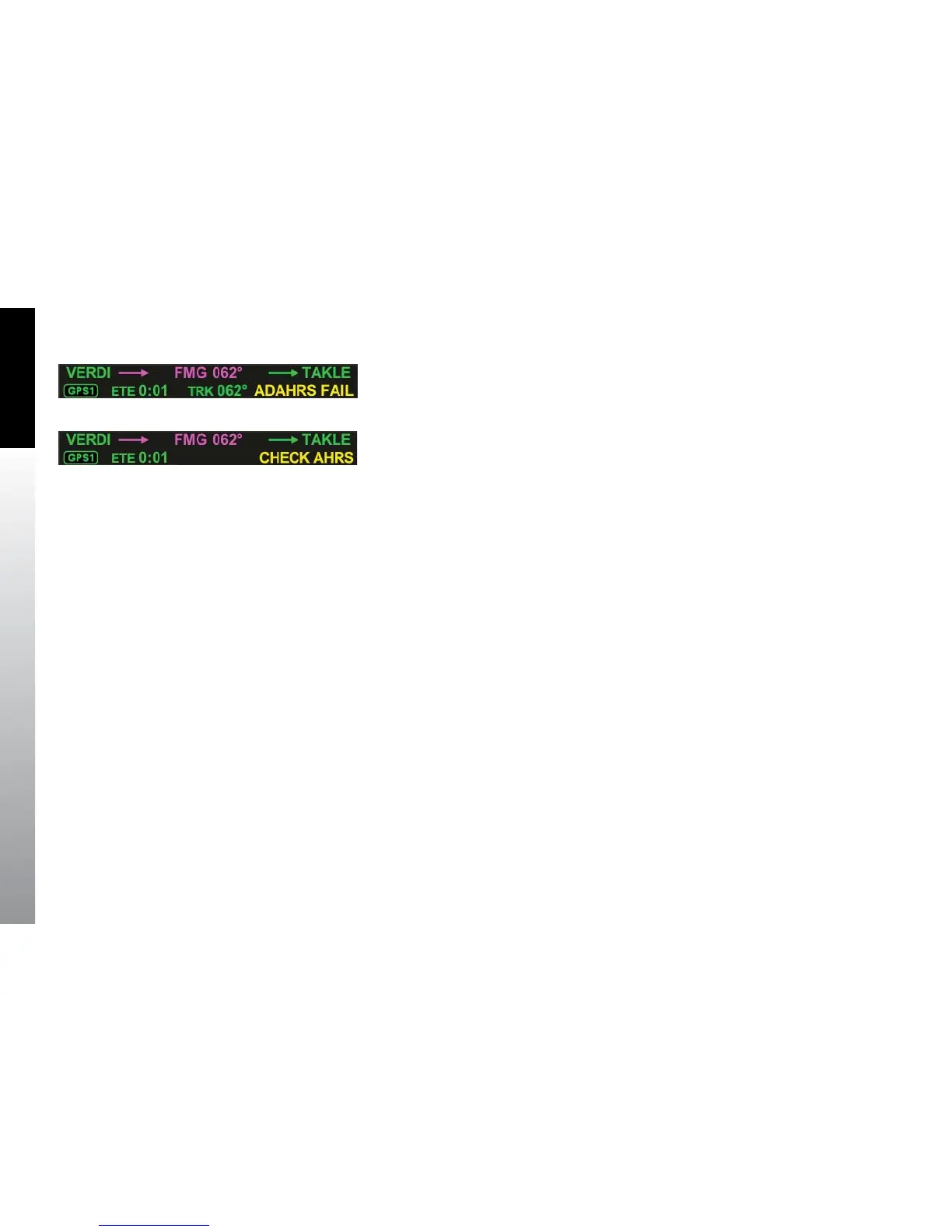

Figure 5-86
ADAHRS FAIL
Figure 5-87
CHECK AHRS
