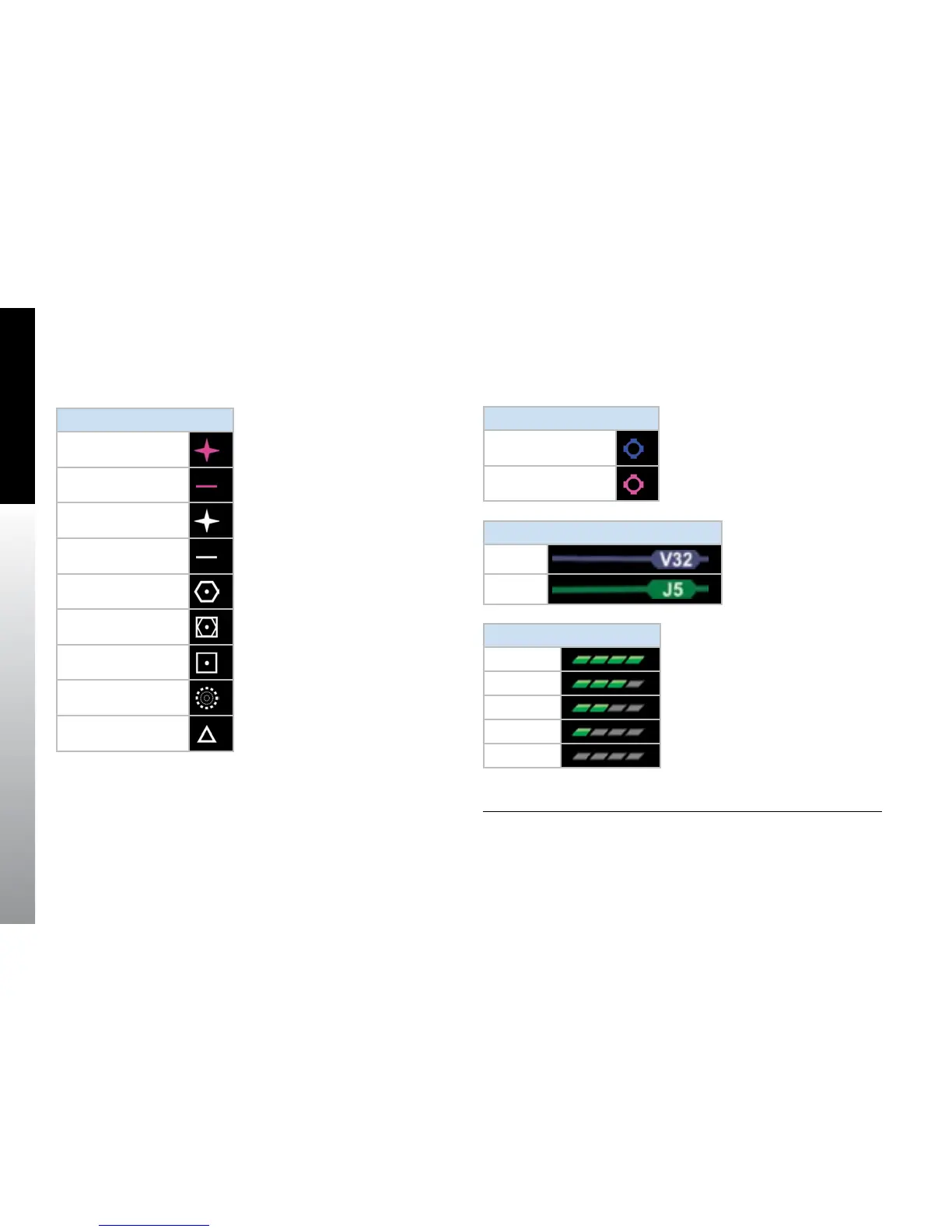

7.5. Symbology
Navaids
Active Waypoint
Active Leg
Other Waypoint
Other Leg
VOR
VORTAC or VOR/DME
DME or TACAN
NBD
INT
Airports
1,2
Control Tower
No Control Tower
Airways
LO
HI
Declutter
High
Med-High
Med-Low
Low
O
1. Blue symbols represent an airport with a control tower. Magenta symbols represent an airport without
a control tower.
2. Airport Icons will display as a scaled runway image when the range scale is reduced to a value where
the scaled runway image would be larger than the airport icon image.
Figure 7-2
NAVAID Symbols
Figure 7-3
Airport Symbols
Figure 7-5
Declutter Symbols
Figure 7-4
Airway Symbols
