5.3. Dedicated Hazard Awareness Views
The EFD1000/500 MFD Dedicated Hazard Awareness Views provide advisory
information of potential hazards to ight safety associated with Terrain, Trac, and
Weather. The EFD1000/500 MFD oers three VIEWS that are dedicated solely to hazard
awareness:
• Terrain
• Trac
• Stormscope® WX-500
Each Dedicated VIEW is presented on a black background, oriented Heading-Up with
a full-range ring. The name of the VIEW is displayed in the upper left corner of the
WINDOW (Figure 5-68). Each VIEW’s range ring is unique to provide the pilot with an
additional method to quickly dierentiate between the dierent hazard awareness
VIEWS. Any annunciations will display on the bottom edge of the VIEW.

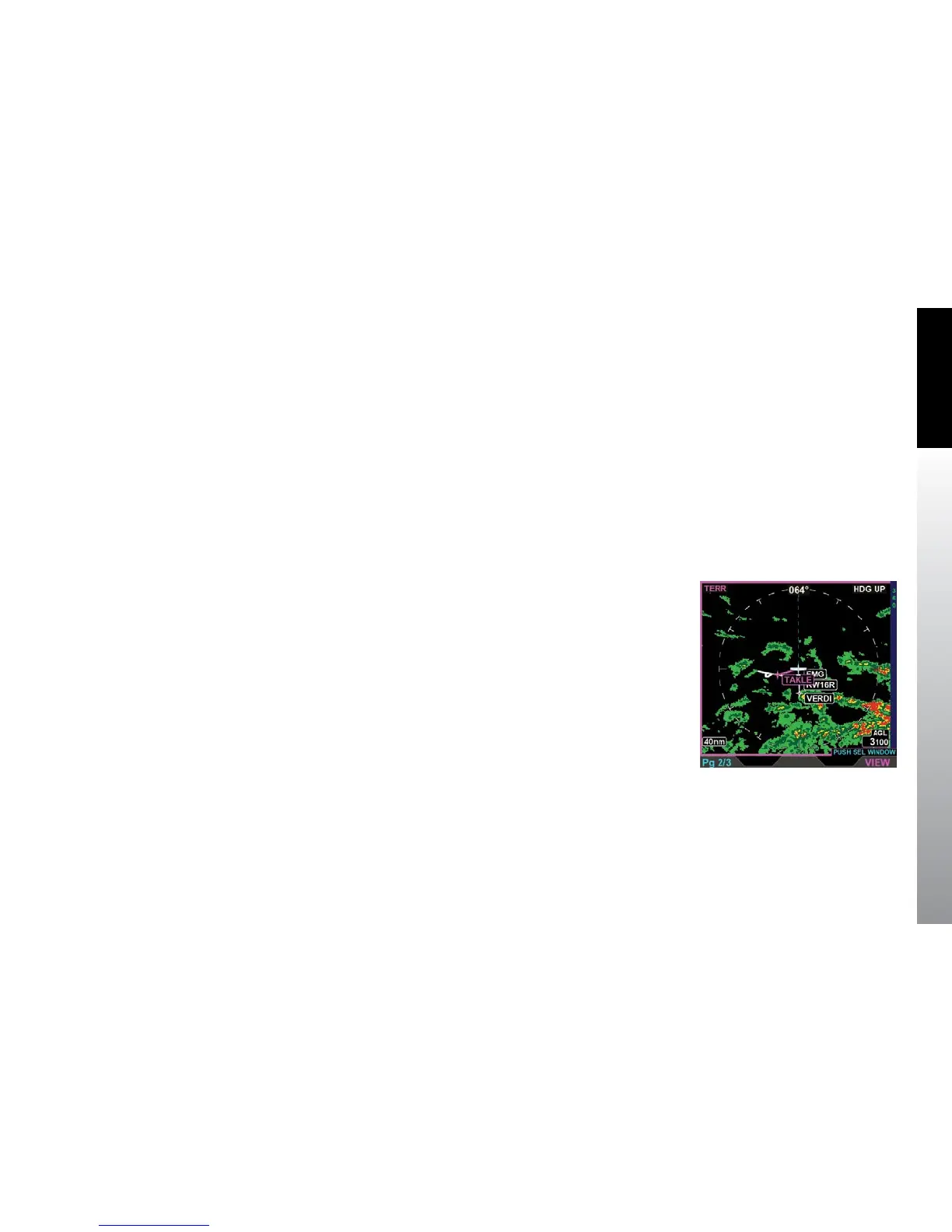

Figure 5-68
Dedicated Hazard Awareness
– Terrain
