CHAPTER 3 DISPLAY &CONTROLS
EFD1000/500 MFD Pilot’s Guide
Page PB 091-00006-001 REV B
EFD1000/500 MFD Pilot’s Guide
Page 3-1091-00006-001 REV B
Chapter 3
Display & Controls
In order to best familiarize you with the features available for the
EFD1000/500 MFD this chapter oers a quick overview of the display
and Pilot Controls.

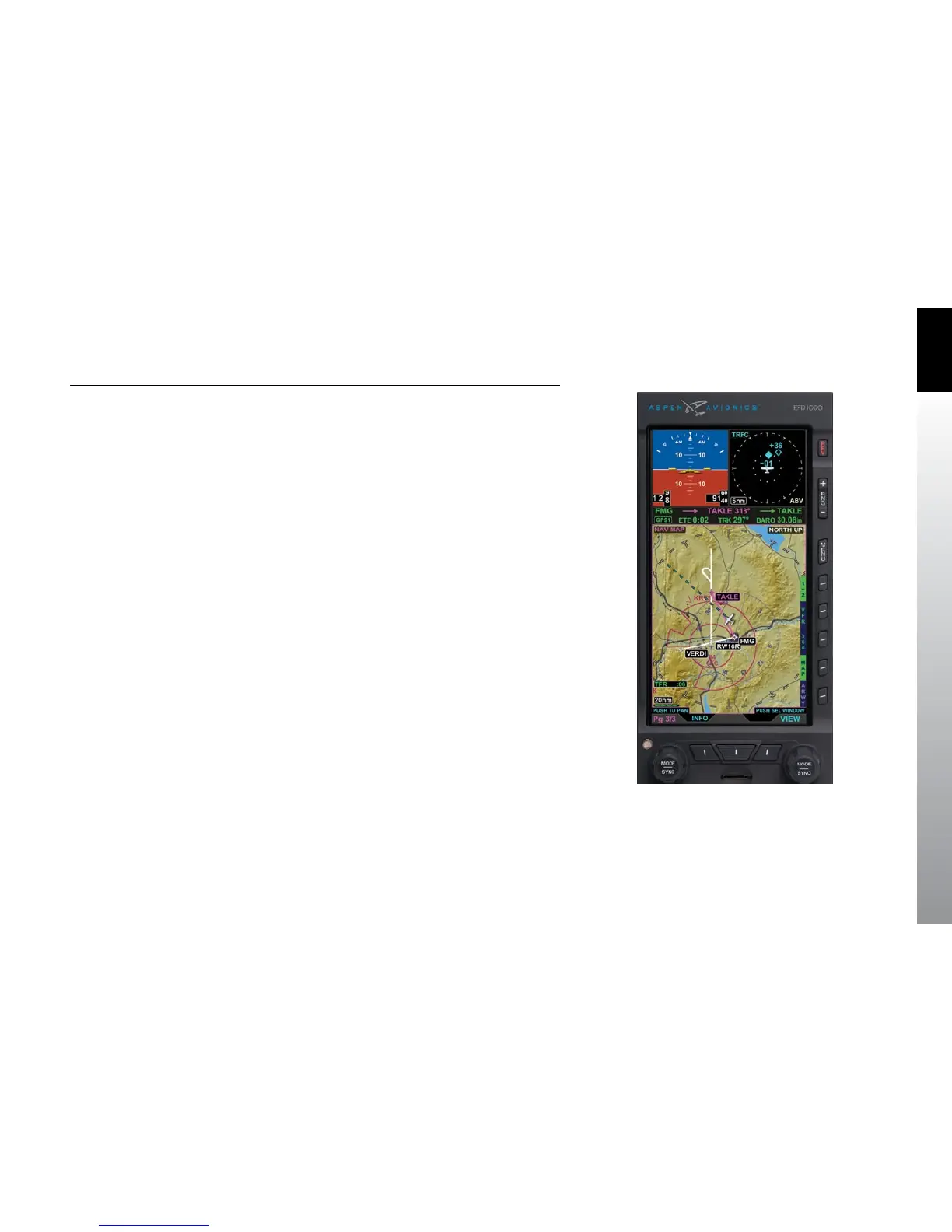

Figure 3-1
Actual view of EFD1000 MFD Display Unit
