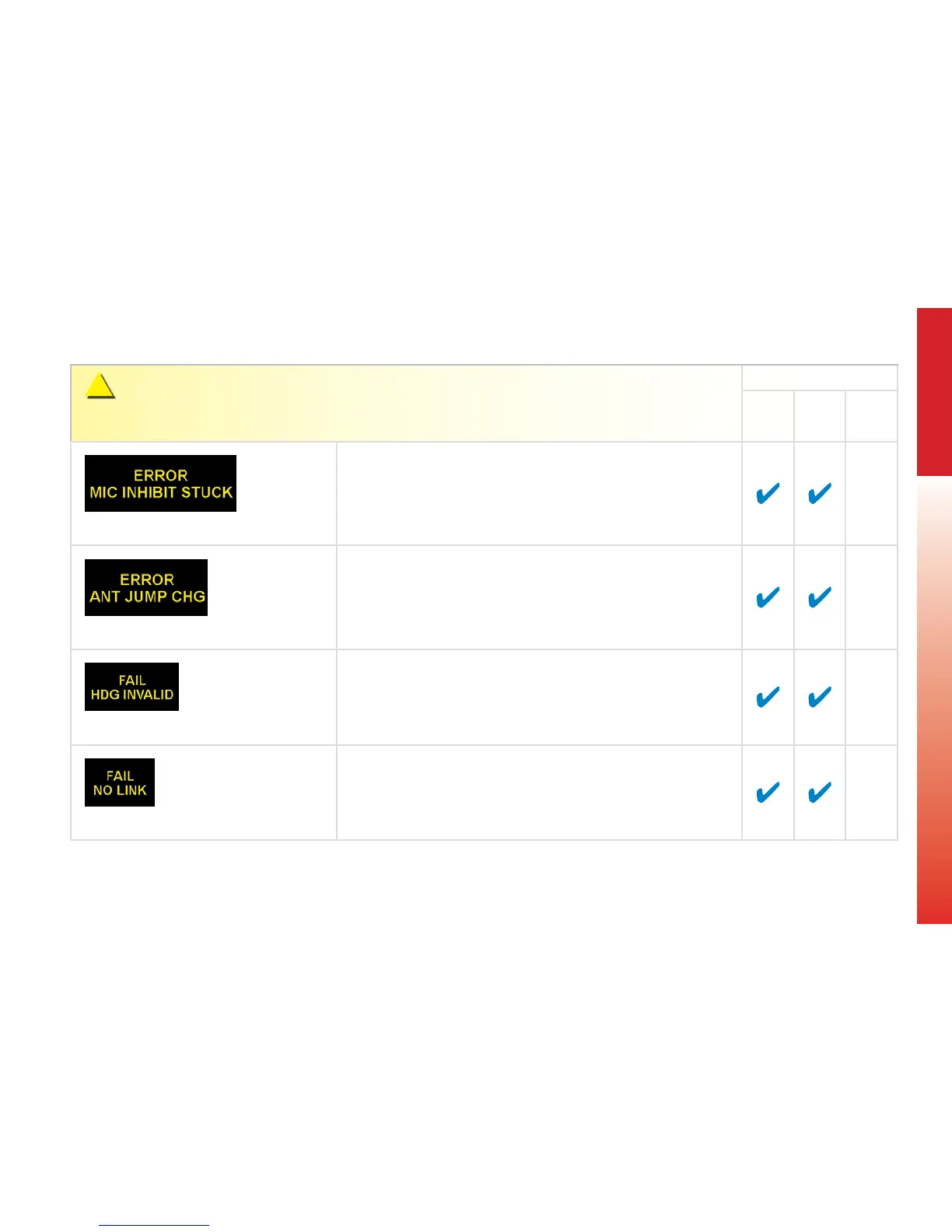

Figure 6-45 WX-500 Inhibit Line Error
Presented when the lightning (spherics) sensor has a recoverable
inhibit line stuck microphone error
Figure 6-46 WX-500 Antenna Jumped Error
Presented when the lightning (spherics) sensor has a recoverable
changed antenna jumper error.
Figure 6-47 WX-500 Heading Invalid Error
Presented when the lightning (spherics) sensor has lost heading
reference and, therefore, a removal of lightning (spherics) sensor
data.
Figure 6-48 WX-500 Link Error
Presented when the lightning (spherics) sensor is enabled and no
data is detected
