CHAPTER 4 GETTING STARTED
EFD1000/500 MFD Pilot’s Guide
Page 4-18 091-00006-001 REV B
EFD1000/500 MFD Pilot’s Guide
Page 4-19091-00006-001 REV B
4.4.1. Power Override
Override the Automatic Power Conguration
1. Push the MENU Button. The Main Menu displays.
2. Rotate the Right Knob until the POWER SETTINGS Menu page displays.
3. MENU Button 1 and 2 show the power source options of BATTERY and EXT
PWR respectively. The current power source label is green; the other label
is white (Figure 4-30). Push either button to alternately switch between
external power (EXT PWR) or the internal battery (BATTERY).
4. Push the MENU Button to exit the Menu
View External Voltage Status
1. Push the MENU Button. The Main Menu displays.
2. Rotate the Right Knob until the POWER SETTINGS Menu page displays.
3. The EXT PWR MENU Button, (Figure 4-31) displays the external power
voltage.
4. Push the MENU Button to exit the Menu.
View Battery Status
1. Push the MENU Button. The Main Menu displays.
2. Rotate the Right Knob until the POWER SETTINGS Menu page displays.
3. The BAT MENU Button (Figure 4-32) displays the current battery status as a
percentage of charge .
4. Push the MENU Button to exit the Menu.

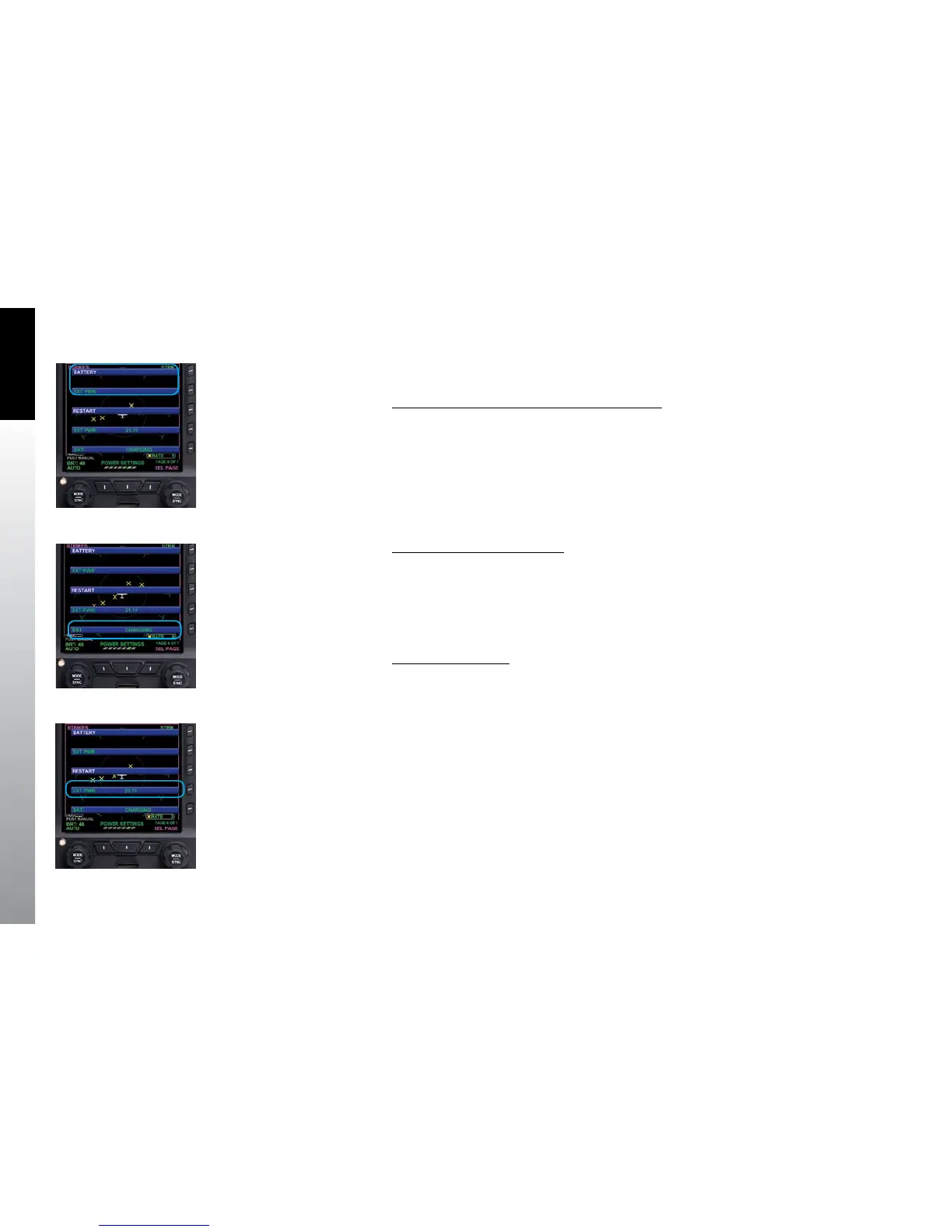

Figure 4-32
Main Menu, Power Settings,
BAT MENU Button
Figure 4-30
Main Menu, Power Settings, BATTERY
and EXT PWR MENU Button
Figure 4-31
Main Menu, POWER SETTINGS page,
EXT PWR Status MENU Button
