CHAPTER 1 WELCOME
EFD1000/500 MFD Pilot’s Guide
Page 1-8 091-00006-001 REV B
EFD1000/500 MFD Pilot’s Guide
Page PB091-00006-001 REV B
NOTE
Ensure the EFD1000/500 MFD is powered o before
inserting or removing an SD card.
1.1.6. Evolution Weather Receiver (EWR50)
and Antenna - Optional
The optional Evolution Weather Receiver (EWR50) provides the ability to receive XM WX
Satellite Weather data with a paid subscription to XM WX Satellite Weather. The EWR50
consists of a receiver and antenna. The EWR50 converts the XM WX Satellite Weather
data into a digital format displayed on the EFD1000/500 MFD (Figure 1-9).
1.1.7. microSDHC Card
The EFD1000/500 MFD is supplied with a microSDHC (Secure Data High Capacity) card
that stores various data used for the Navigation Map information and Terrain Awareness.
The microSDHC card is also used for eld upgrades .
The EFD1000/500 MFD uses a Secure Digital (SD) card to load and store various types
of data. For basic ight operations an SD card is required for Terrain, Obstruction, and
Navigation database storage.

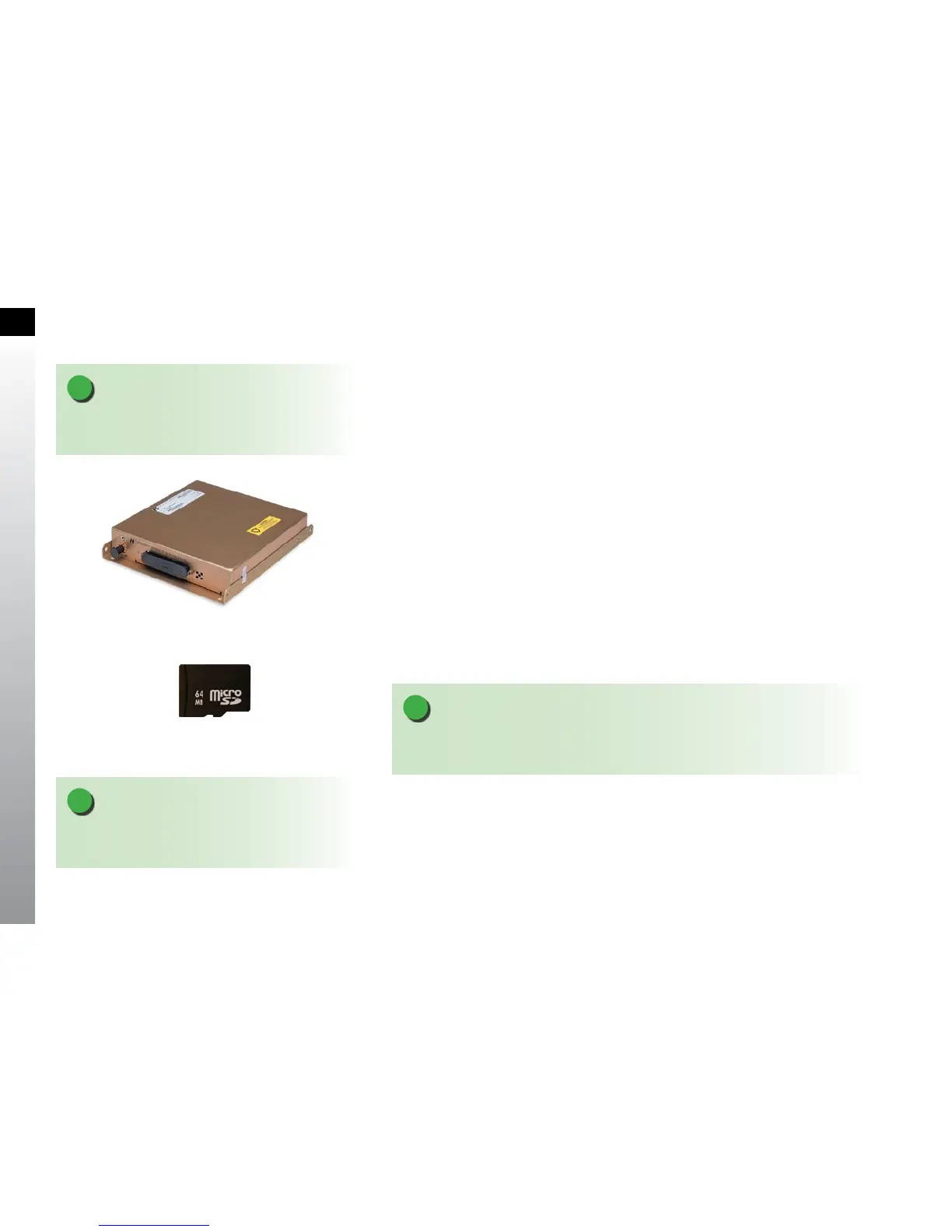

Figure 1-9
Evolution Weather Receiver (EWR) and Antenna - optional
Figure 1-10
Micro Secure Data (SD) Card
NOTE
A single receiver will supply data to all EFD units
installed on the aircraft.
NOTE
Refer to Chapter 7, Appendices, Section 7.1. Downloads and Data Updates, for
specic instructions about updating the navigation and terrain database.
