Aspen Avionics Evolution EFD 1000 MFD - Figure 6-64 Datalink Weather Product Data Age; Figure 6-65 Data Invalid or Unavailable; Figure 6-66 Source Invalid or Unavailable; Figure 6-67 GPSS off

CHAPTER 6 EXPANDED EMERGENCY AND ABNORMAL PROCEDURES
EFD1000/500 MFD Pilot’s Guide
Page 6-30 091-00006-001 REV B
EFD1000/500 MFD Pilot’s Guide
Page 6-31091-00006-001 REV B
ADVISORY
Applicability
MFD
500
MFD
1000
MFD
1000
(REV)

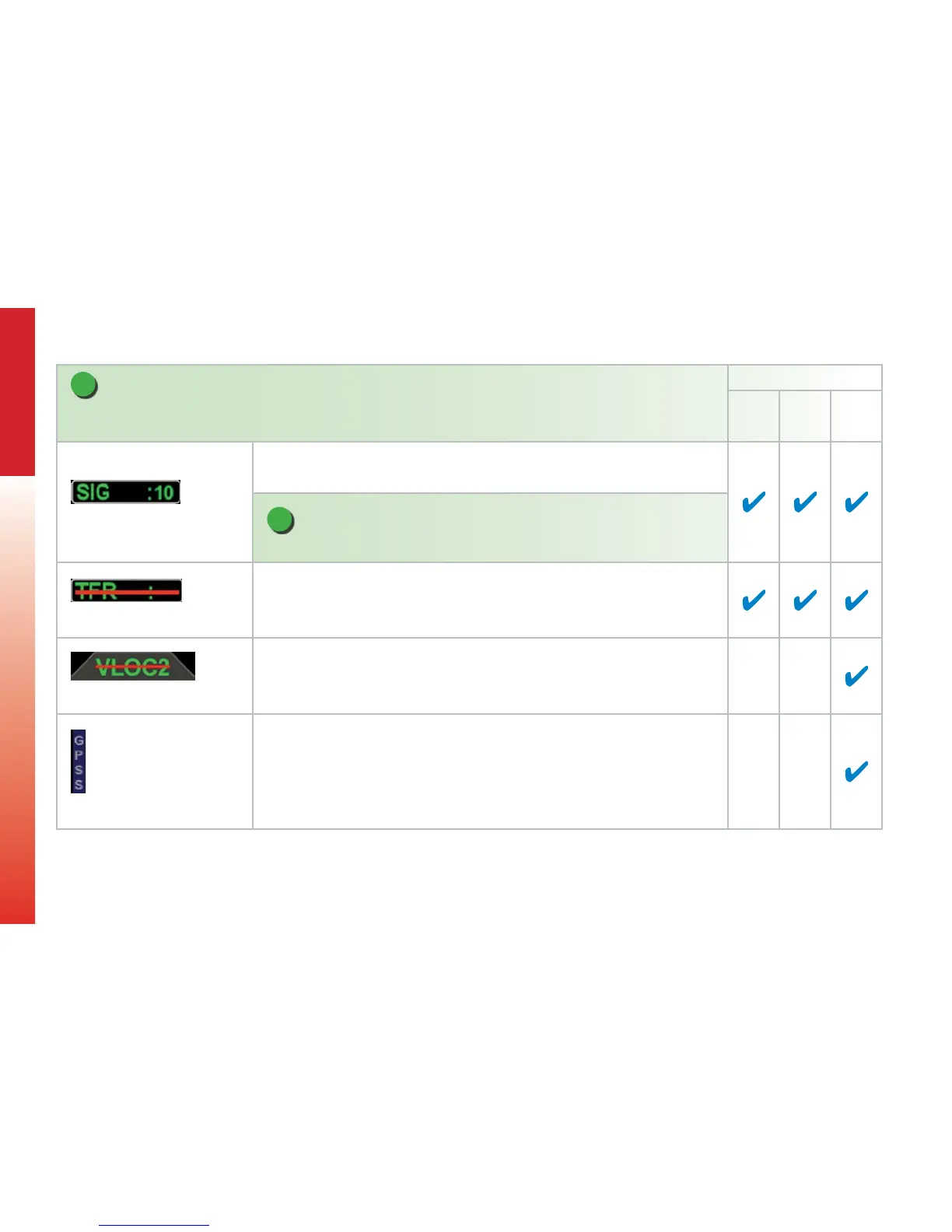

Figure 6-64 Datalink Weather Product Data Age
Data age presented for all Data Link Weather products when the XM receiver is
operational. Elapsed time is expressed in minutes (e.g., :05).
NOTE
Some weather product pages have a dierent label.
Figure 6-65 Data Invalid or Unavailable
A horizontal red line through any legend indicates that the data is invalid or unavailable.
Figure 6-66 Source Invalid or Unavailable
A horizontal red line through the selected navigation source indicates that the data is
invalid or unavailable. HSI and SHSI only.
Figure 6-67 GPSS O
Grey annunciation that indicates that GPSS is disabled.
