Aspen Avionics Evolution EFD 1000 MFD - Figure 6-55 GPS Annunciations; Figure 6-56 Traffic Enabled; Figure 6-57 Traffic Sensor Standby; Figure 6-58 Traffic Sensor Self-Test

CHAPTER 6 EXPANDED EMERGENCY AND ABNORMAL PROCEDURES
EFD1000/500 MFD Pilot’s Guide
Page 6-28 091-00006-001 REV B
EFD1000/500 MFD Pilot’s Guide
Page 6-29091-00006-001 REV B
ADVISORY
Applicability
MFD
500
MFD
1000
MFD
1000
(REV)

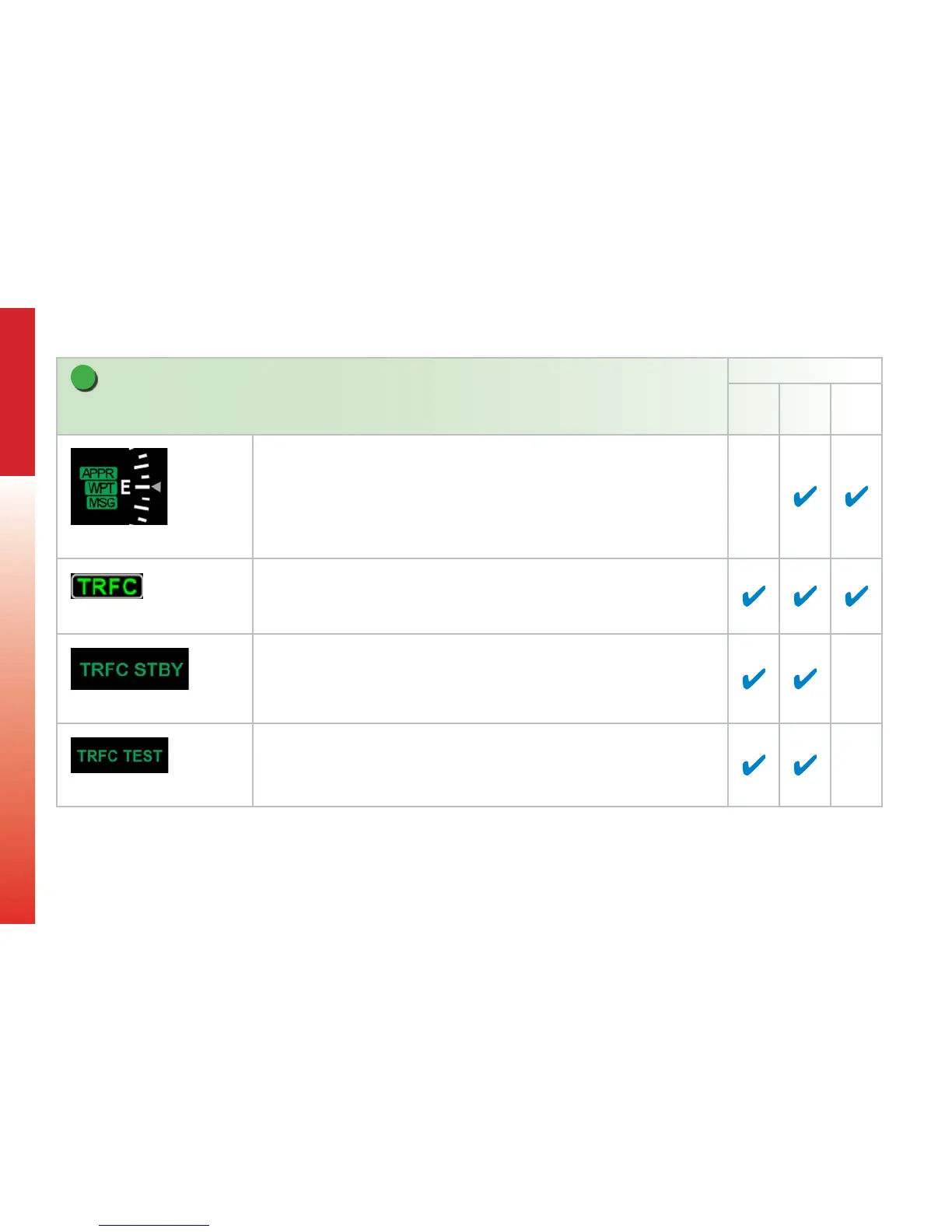

Figure 6-55 GPS Annunciations
Associated with the GPS coupled to the HSI or Secondary HSI. See the GPS AFMS for more
information.
Figure 6-56 Trac Enabled
Indicates the trac sensor is enabled
Figure 6-57 Trac Sensor Standby
Indicates the trac sensor is in standby.
Figure 6-58 Trac Sensor Self-Test
Indicates the trac sensor is in the self-test mode.
